Fielder Model 2010 4WD Rear Hub

KSh6,000.00
Structural & Dimensional Specifications
  • Design Architecture: Integrated Gen 3 Hub Unit (the dual-row angular contact ball bearing, hub flange, outer casing, and magnetic ABS tone ring are integrated as a single non-serviceable assembly).
  • Internal Core Configuration: Splined center bore engineered to clamp down on the rear CV half-shaft axle.
  • Bolt Pattern (PCD): 4 x 100 mm (4 lug stud configurations spaced on a 100 mm pitch circle).
  • Brake Integration: Mates with the factory rear drum brake assembly. [1]
  • ABS Setup: Features a built-in internal magnetic encoder ring. The ABS speed sensor mounts through the rear backing plate directly behind the hub facing the inner seal. [1]
Genuine Toyota OEM Part Numbers
The rear hub units differ by location side to clear specific anti-lock braking harnesses and mounting paths:
  • Rear Axle Hub & Bearing Assy (Right Hand - RH): 42410-52070 / 42410-12260
  • Rear Axle Hub & Bearing Assy (Left Hand - LH): 42440-52030 / 42440-12260
  • Axle Spindle Center Lock Nut: 90177-22001 (Locking type, replaces whenever axle is extracted).
  • Hub Assembly Mounting Bolts: 90119-10940 (4 mounting bolts per wheel assembly). [1, 2]
Factory Installation Torque Specifications
Important Mechanical Notice: The 4WD rear hub relies heavily on the clamping pressure of the outer axle spindle nut to keep the internal bearing races preloaded. Never roll the vehicle on its wheels or lower it off a lift without the axle shaft inserted and the center lock nut torqued down, as doing so will permanently separate the internal bearing rows and ruin the component.
Connection Location Profile Metric Torque (N·m) Imperial Torque (ft-lbs)
Main Rear Axle Center Lock Nut (Attaching CV Axle to Hub) 216 N·m 159 ft-lbf
Hub Bearing Casing Bolts to Knuckle (4 bolts, 14 mm socket) 80–90 N·m 59–66 ft-lbf
Wheel Lug Nuts (Securing wheel to hub flange studs) 103 N·m 76 ft-lbf

Mazda Demio Model 2017 Rear Hub

KSh12,000.00
Component Configuration & Architecture
  • Component Type: Integrated Hub Unit Assembly (Third Generation pre-assembled, sealed hub unit integrating both the wheel flange and bearing elements).
  • Bearing Construction Type: Double-row angular contact ball bearing setup optimized for low-friction city driving.
  • Fitting Position: Rear Axle (Left Hand and Right Hand sides share identical, symmetrical units).
  • ABS Integration: Natively includes an integrated electronic anti-lock braking system (ABS sensor ring/magnetic encoder).
  • Average Operational Lifespan: ~120,000 Kilometers (under standard operating loads). [1, 2, 3, 4, 5]
Dimensional & Geometric Tolerances
  • Pitch Circle Diameter (PCD): 4 x 100 mm
  • Wheel Hub Stud Count: 4-Hole hub face
  • Brake Setup Compatibility: Engineered primarily for rear drum brake configurations. [1, 2, 3]
Genuine OEM Part Numbers & Cross-References
  • Primary JDM OEM Part Reference: D09H-26-15X (Specifically configured for standard DJ platform releases including DJ3FS and DJ5FS chassis runs).
  • Common Industry Aftermarket Part Interchange: 3DACF037D3 [1, 2, 3]
Vehicle & Drivetrain Platform Compatibility
  • Chassis Series: Mazda DJ Generation (Production range spanning late 2014 through 2022).
  • Drive Layout Layouts: Tailored for standard Front-Wheel Drive (2WD/FF) models.
  • Engine Architecture pairing: Universal hub assembly across 1.3L P3-VPS petrol lines, 1.5L P5-VPS petrol lines, and 1.5L S5-DPTS SkyActiv-D clean diesel powertrains. [1, 2, 3]

Subaru Forester SH5 Rear Wheel Hub Bearing

Original price was: KSh13,000.00.Current price is: KSh12,000.00.

Eliminate road noise and restore the legendary handling of your Subaru Forester SH5 with this premium Rear Wheel Hub Bearing. Engineered for high-speed stability and extreme durability, this unit ensures your wheels rotate smoothly and safely under all driving conditions.

PRICE: KSh 12,000

COMPATIBILITY: Precision-engineered specifically for the Subaru Forester SH5 model series.

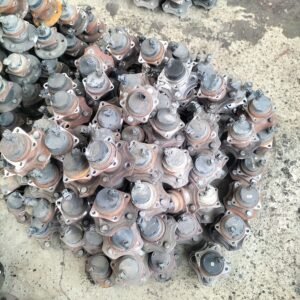

Toyota Fielder Rear Hub 2005

Original price was: KSh6,000.00.Current price is: KSh5,000.00.
Genuine Ex-Japan Grade A rear hub assembly for 2005 Toyota Corolla Fielder ensuring smooth wheel rotation, stable handling, and long-lasting durability.

Price: 5,000

 Compatibility;Toyota Corolla Fielder (2000–2006 models)2005 Toyota Fielder (2WD models – confirm chassis before purchase),Compatible with selected Corolla RunX models

Performance : Smooth and quiet wheel rotation

2013 Toyota Axio Rear Hub

Original price was: KSh8,000.00.Current price is: KSh6,000.00.
  • Part: Rear Wheel Hub & Bearing Assembly.

  • Condition: Grade A Ex-Japan (Foreign Used).

  • Compatibility: Toyota Axio/Fielder 2012–2020 (Chassis: NZE161, NRE161, NKE165).

  • Key Benefit: Fixes humming noises and ABS/VSC dashboard warning lights.

  • Price: KSh 6,000.

Toyota Sienta Rear Hub,Model 2015

Original price was: KSh7,000.00.Current price is: KSh6,000.00.
  • Part: Rear Wheel Hub & Bearing Assembly.

  • Condition: Grade A Ex-Japan (Foreign Used).

  • Compatibility: Toyota Sienta 2015–2022 (Chassis: NSP170, NHP170, NCP175). Also fits Toyota Aqua and newer Vitz (NSP130).

  • Key Benefit: Fixes humming noises and ABS/Traction Control warning lights.

  • Price: KSh 6,000

Toyota Belta Rear Hub

Original price was: KSh8,000.00.Current price is: KSh6,000.00.
  • Part: Rear Wheel Hub & Bearing Assembly.

  • Condition: Grade A Ex-Japan (Foreign Used).

  • Compatibility: Toyota Belta models 2005–2012 (Chassis: KSP92, SCP92, NCP96). Also fits Toyota Vitz (KSP90) and Ractis (NCP100).

  • Key Benefit: Original JDM quality; eliminates humming/grinding noises and ABS errors.

  • Price: KSh 6,000.

NZE Rear Hub

Original price was: KSh6,800.00.Current price is: KSh5,000.00.
  • Part: Rear Wheel Hub & Bearing Assembly.

  • Condition: Genuine Ex-Japan (Grade A Used).

  • Compatibility: Fits Toyota NZE models (2001–2012), including the NZE121 (Old Shape) and NZE141 (New Shape).

  • Function: Restores silent wheel rotation and fixes ABS sensor faults.

  • Price: KSh 5,000.

Fielder 2005 Rear Hub

Original price was: KSh6,000.00.Current price is: KSh5,000.00.
  • Part: Rear Wheel Hub & Bearing Assembly.

  • Condition: Genuine Ex-Japan (Used, Grade A).

  • Compatibility: Fits Toyota Fielder models 2000–2006 (NZE121, ZZE121, CE121). Also fits Toyota Allex, RunX, and Corolla NZE121.

  • Performance: High-velocity precision bearing for a silent, vibration-free ride.

  • Price: KSh 5,000.
