Daihatsu Mira Steering Rack

KSh8,000.00
Part Identification & Core Engineering
  • OEM Reference Part Number (L275S JDM Example): 45502-B2250, 45502-B2240
  • Original Equipment Manufacturer: JTEKT / Showa
  • Steering Mechanism Type: Manual Rack and Pinion Gearbox (Assisted upstream by a column-mounted EPS motor)
  • Vehicle Drive Layout Configurations: Applicable to Front-Wheel Drive (2WD) and All-Wheel Drive (4WD) chassis variations.
Physical & Operational Dimensions
  • Total Unit Length (Excluding Outer Tie Rod Ends): 1,075 mm to 1,135 mm (Variant dependent)
  • Average Dry Weight: 5.64 kg (12.43 lbs)
  • Input Shaft Spline Interface: Toothed pinion shaft
  • Input Shaft Height Profile: 42 mm
  • Maximum Allowed Steering Wheel Free Play: 10 mm
Tightening Torque Specifications
  • Steering Rack Housing-to-Crossmember/Subframe Bolts: 43 to 55 ft-lbs (59 to 75 N·m)
  • Inner Tie Rod (Rack End) to Steering Rack Housing Thread: 65 to 87 ft-lbs (88 to 118 N·m)
  • Inner Tie Rod Lock Nut (Outer Tie Rod Jam Nut): 33 ft-lbs (45 N·m)
  • Outer Tie Rod End Ball Joint Castle Nut to Steering Knuckle: 26 to 34 ft-lbs (35 to 46 N·m)
  • Steering Column Intermediate Shaft Pinion Clamping Bolt: 18 to 25 ft-lbs (24.5 to 34.3 N·m)

Daihatsu Mira Engine Mountain

KSh4,000.00
1. Component Breakdown & OEM Part Numbers
The Daihatsu Mira relies on a 3-piece multi-point containment setup optimized to counteract the low-frequency vibrations typical of 3-cylinder engines:
  • Right-Hand Mount (Front Right / Timing Belt Side):
    • OEM Part Numbers: 12305-B2210, 12305-B2140, or 12305-B2040 (depending on chassis platform)
    • Function: Primary weight-bearing insulator. Anchors the structural block to the right engine bay frame rail. [1, 2]
  • Left-Hand Mount (Front Left / Transmission Side):
    • OEM Part Numbers: 12306-B2080 or 12306-B2035
    • Function: Gearbox casing insulator. It isolates transaxle load shifts and rotational transmission torque. [1, 2, 3]
  • Rear Roll Stopper (Lower Center Torque Rod):
    • OEM Part Numbers: 12329-B2070, 12361-B7206, or 12373-B7203
    • Function: Moving control torque rod. It connects the transmission housing directly to the lower firewall cross-member or subframe to restrict back-and-forth rotational pitching. [1, 2, 3, 4]
2. Vehicle Structural Fitment
  • Engine Installation: Transverse alignment (East-West layout)
  • Chassis & Powertrain Compatibility:
    • L275S / L285S Series: 0.66L 3-cylinder Petrol (KF-VE / KF-DET), FWD/AWD
    • L276 Series: 1.0L 3-cylinder Petrol (1KR-FE), FWD
    • LA300S / LA310S (Mira e:S): 0.66L Eco-Idle Petrol (KF-VE3), FWD/AWD [1, 2]
3. Material & Damping Specifications
  • Material Composition: Natural vulcanized rubber chemically bonded to stamped structural steel, reinforced cast aluminum casings, and iron framing brackets. [1]
  • Damping Classification:
    • Right-Hand Position: Specially engineered Hydraulic Design (Hydro-Mount) containing internal fluid to absorb the rough secondary-order idle harmonics inherent to light 3-cylinder setups.
    • Left and Rear Positions: Standard solid-core rubber-metal elastomeric bushings.

Daihatsu Mira Heavy Duty Coil Spring

KSh8,000.00
Core Metallurgical & Coil Geometry Specs
    • Coil Spring Design Profile: Cylindrical, Linear Rate Heavy-Duty Aftermarket Coil Spring configuration.
    • Wire Cross-Section Diameter (Thickness): 9.5 mm to 10.5 mm (reinforced aftermarket specification; increased from the standard 8.5 mm factory stock wire diameter to improve load handling and prevent bottoming out).
    • Spring Outer Diameter (Ø): 102 mm to 110 mm (varies structurally between front and rear axle shapes).
    • Total Free Uncompressed Length (Height): 285 mm to 310 mm (depending on the specific chassis variation to maintain proper unladen vehicle ride height).
    • Total Active Coil Windings: 5.5 to 6.5 coils.
    • Material Composition: Induction-hardened 54SiCr6 / 55CrSi High-Tensile Silicon-Chromium Spring Steel alloy, finished with an anti-corrosion, impact-resistant heavy powder coating layer.
Functional Suspension Dynamics & Performance Ratings
    • Spring Load Rate Classification: Heavy-Duty / Reinforced Cargo Specification.
    • Spring Stiffness Constant (Rate): 22 N/mm to 26 N/mm (engineered with an approximate 20% to 30% increase in load-bearing stiffness compared to the highly compliant factory JDM setup).
    • Primary Mechanics Profile: Specifically calibrated to eliminate rear-end sagging when carrying full rear passengers or cargo, reduce body roll under cornering loads, and maximize ground clearance on uneven road surfaces.
Target Chassis Code Applications
    • Daihatsu Platform Series: L275S, L275V, L285S (4WD), LA300S, LA310S, LA350S, LA360S (Mira e:S series).
    • Cross-Platform Toyota/Subaru Twins: Directly compatible with identical platform derivatives: Toyota Pixis Epoch and Subaru Pleo / Mira Custom chassis frames of corresponding production years.
Industry Cross-References & Manufacturer Part Bases
  • Daihatsu Factory Standard Base Part Roots (For dimensional reference): 48131-B2010, 48131-B2560 (Front) | 48231-B2010, 48231-B2A80 (Rear).
  • Premium Aftermarket Heavy-Duty/Performance Alternatives:
    • Cobra Springs Heavy-Duty Series: Specialized European reinforced specification matrices matching L275/LA300 parameters.
    • OBK (Osaka Bane Inc.) Heavy-Duty Coil: Blue-painted reinforced variant catalog references.
    • Lesjöfors Heavy-Duty Coil Reference: 4215607 / 4215609 (Reinforced / Cargo alternative series)

Daihatsu Mirabrake Discs

KSh2,500.00
Front Brake Disc Dimensions & Geometry
The technical specifications for the front brake discs (rotors) of the modern Daihatsu Mira (L275 and LA300/e:S chassis platform) vary slightly depending on whether the sub-trim package utilizes a Solid or Vented rotor design: [1, 2]
  • Outer Diameter (Ø): 211.0 mm (Standard baseline/e:S JDM trims) up to 234.0 mm (Large-caliper / Custom turbo configurations). [1, 2, 3, 4, 5]
  • Nominal Thickness (New):
    • Solid Disc Layout: 11.0 mm.
    • Vented Disc Layout: 16.0 mm to 17.0 mm. [1, 2, 3, 4, 5]
  • Minimum Thickness / Wear Limit:
    • Solid Disc Limit: 10.0 mm.
    • Vented Disc Limit: 15.0 mm. [1, 2, 3]
  • Total Structural Height: 41.0 mm. [1, 2, 3]
  • Centering / Hub Pilot Bore Diameter: 54.0 mm to 55.0 mm. [1, 2, 3]
  • Material Composition: G3000 Grade high-carbon grey cast iron metallurgy for thermal dissipation.
Wheel Mount & Hub Interface
  • Lug Bolt Hole Arrangement: 4 Holes.
  • Pitch Circle Diameter (PCD): 4 x 100 mm.
  • Wheel Bolt Bore Diameter: 13.8 mm. [1, 2, 3, 4]
Factory OEM & Aftermarket Cross-Reference Numbers
  • Daihatsu Genuine Factory OEM Part Roots: 43512-B2140, 43512-B2100, 43512-97201.
  • Major Aftermarket Technical Cross-References:
    • Brembo Reference: 08.A151.10 (Solid) / 09.A236.11 (Vented).
    • Ridex Code: 82B0291.
    • Blue Print Reference: ADD64322.
    • Textar Reference: 92135203. [1, 2]
Structural Fastener Installation Torques
  • Wheel Lug Nuts Factory Setting: 103 Nm (76 ft-lbs).
  • Caliper Carrier Frame Mounting Bolts (17mm Head): 113 Nm. [1, 2]

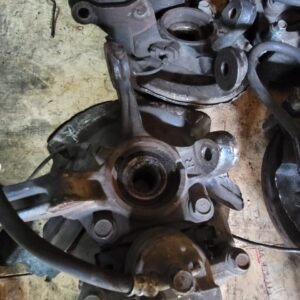

Daihatsu Mira Wheel Hub

KSh4,000.00
Front Wheel Hub & Bearing Specifications (Modern JDM Layout / L275 & LA300 Series)
  • Bearing Style: Generation 1 Press-In Sealed Double-Row Angular Contact Ball Bearing. The standalone driven hub flange presses into the steering knuckle-seated bearing.
  • Integrated Sensor Technology: Features a magnetic multi-pole ABS encoder ring built directly into the rubber oil seal face on one side of the bearing.
  • Axle Location: Front Axle (Symmetric Left / Right configuration).
  • Front Bearing Core Dimensions: Inner Diameter: 35.0 mm | Outer Diameter: 64.0 mm | Width / Thickness: 37.0 mm.
  • Wheel Lug Pattern Configuration: 4 Holes.
  • Pitch Circle Diameter (PCD): 4 x 100 mm (Modern series standard, replacing the legacy 4x110 mm vintage configurations).
  • Centering / Hub Pilot Outer Diameter: 54.0 mm.
  • Genuine Daihatsu Genuine OEM Part Numbers: 43560-B2020, 43560-B2021, 43560-B2030.
  • Major Aftermarket Cross-References: DAC35640037M (Industry Standard Blueprint), FEBI 172477, GSP 9400087. [1, 2, 3, 4, 5, 6]
Rear Wheel Hub & Bearing Unit Specifications (2WD Models)
  • Design Configuration: Generation 3 Modular, Unitized Bolt-On Rear Hub Assembly. The wheel hub flange, dual-row inner ball tracks, outer casing, and ABS target mechanics are integrated into a single, non-serviceable sealed module.
  • Axle Position: Rear Axle (Symmetric Left / Right mounting geometry).
  • Wheel Lug Arrangement: 4 Holes.
  • Rear Pitch Circle Diameter (PCD): 4 x 100 mm.
  • Mounting Flange Layout: 4-Bolt Rectangular Pattern matching to the rear trailing arm/torsion beam drop axle base.
  • Mounting Bore Distance: 72.0 mm.
  • ABS Signal Integration: Pre-assembled active ABS sensor ring or multi-pole target track containing a 96-magnetic-pole layout.
  • Material Composition: Precision induction-hardened GCr15 High-Carbon Chromium Bearing Steel internals matched with a 55# structural forged steel hub casing.
  • Genuine Daihatsu OEM Part Roots: 42450-B2010, 42450-B2050, 42450-B2060. [1, 2, 3, 4, 5]

Daihatsu Mira Lower Control Arms

Original price was: KSh5,500.00.Current price is: KSh4,000.00.

Upgrade your vehicle's suspension stability and steering response with these high-quality Lower Control Arms for the Daihatsu Mira. Sourced as genuine Ex-Japan parts, they provide the structural strength and precision needed to maintain a smooth, safe, and balanced ride.

PRICE: KSh 4,000

COMPATIBILITY: Precision-engineered for the Daihatsu Mira series (L275/L285 and LA300/LA310 models).

Daihatsu Mira Wheel Hub Assembly

Original price was: KSh5,000.00.Current price is: KSh4,000.00.
Genuine Daihatsu Mira Wheel Hub for KSh 4,000. Grade A Ex-Japan quality for a silent ride, perfect ABS performance, and maximum fuel savings.
  • Price: KSh 4,000

  • Condition: Ex-Japan Grade A (Certified low-friction, high-precision recovery)

  • Personality: "The Silent Efficientist." Engineered for effortless rotation and maximum fuel economy.

  •  Compatibility: Grade A Ex-Japan Wheel Hub & Bearing unit: Fits Daihatsu Mira (L275, L285) and Mira e:S (LA300, LA310, LA350) models.

Daihatsu Mira Shock Absorbers

Original price was: KSh4,800.00.Current price is: KSh4,000.00.
Genuine Daihatsu Mira Shocks for KSh 4,000. Ex-Japan Grade A quality for better fuel economy, silent city driving, and "like-new" comfort
  • Price: KSh 4,000

  • Condition: Ex-Japan Grade A (Certified pristine; tested for high-pressure gas retention)

  • Personality: "The Urban Specialist." Lightweight, responsive, and engineered for maximum efficiency.

  • Compatibility: Grade A Ex-Japan suspension struts: Fits Daihatsu Mira (L275, L285) and Mira e:S (LA300, LA350) series models.

Daihatsu Mira Shock Absorbers

Original price was: KSh5,000.00.Current price is: KSh4,000.00.
Genuine Daihatsu Mira Shocks for KSh 4,000. Grade A Ex-Japan quality to restore your Mira’s smooth ride, fuel efficiency, and city agility
  • Price: KSh 4,000

  • Condition: Ex-Japan Grade A (Certified high-pressure, low-friction units)

  • Personality: The "Thrifty Traveler." Engineered for maximum efficiency, lightness, and surprisingly plush comfort.

  •  Compatibility: Grade A Ex-Japan suspension struts. Compatibility: Fits Daihatsu Mira (L275S, L285S) and Mira e:S (LA300S, LA310S, LA350S, LA360S) models (2006–2023).

Daihatsu Mira Lower Control Arms

Original price was: KSh6,000.00.Current price is: KSh4,000.00.

Daihatsu Mira Lower Control Arms

Condition: Ex-Japan – Grade A, lightly used, fully tested for reliability and durability.
Compatibility: Perfectly designed for Daihatsu Mira ensuring OEM fit and smooth suspension performance.
Performance: Maintains precise wheel alignment, improves handling, and ensures stable, safe driving. Absorbs road shocks for better ride comfort.
Durability: Made with high-quality materials to resist wear, corrosion, and long-term usage.
Value: Affordable at 4000, delivering safety, control, and long-lasting performance for daily driving or rough road conditions.

Daihatsu Mira Drive Shafts – Ex Japan

Original price was: KSh6,500.00.Current price is: KSh5,000.00.

Compatibility: Daihatsu Mira
Price: 5,000

Performance
Ex Japan Grade A drive shafts offering smooth, balanced rotation and durable CV joint performance. Ideal for lightweight kei cars, these OEM shafts maintain factory precision and reduced drivetrain strain. No excessive wear, no abnormal noise, and ready for immediate installation. Reliable and cost-effective replacement option.

Daihatsu Mirror Disk

Original price was: KSh4,200.00.Current price is: KSh3,000.00.
  • Product: Daihatsu Mira Front Brake Disk (Rotor)

  • Condition: Ex-Japan Grade 1 (High-quality original OEM)

  • Price: 3,000

  • Compatibility: Daihatsu Mira (L275, L285, LA300/e:S), Mira Cocoa, and Move.

  • Performance: High-carbon grey cast iron construction; provides excellent heat dissipation and consistent stopping power for lightweight city cars.

Daihatsu Mira Shock Absorbers

Original price was: KSh5,800.00.Current price is: KSh4,000.00.
  • Condition: Ex-Japan (Grade A). Inspected for dry seals (no leaks), gas pressure rebound, and smooth top-mount bearings.

  • Compatibility: Fits Daihatsu Mira models (2006–Present).

    • Chassis: L275S (2WD), L285S (4WD), and LA300S/LA350S (Mira e:S).

    • Interchange: Also compatible with the Toyota Pixis Epoch and Subaru Pleo Plus.

  • Performance: Restores the "tight" city-car handling; prevents bottoming out on speed bumps and stabilizes the car against highway crosswinds.

  • Price: Ksh 4,000

Daihatsu Mira Wheel Hub

Original price was: KSh5,300.00.Current price is: KSh4,000.00.

A high-quality OEM replacement hub that ensures smooth, quiet wheel rotation and maintains the fuel efficiency of your Daihatsu Mira.

  • Condition: Ex-Japan (Grade A Used) – Genuine factory part with low wear; carefully inspected for structural integrity and smooth bearing movement.

  • Compatibility: Fits Daihatsu Mira and Mira e:S models (L275, LA300, LA310, LA350, LA360). Also compatible with some Toyota Passo and Daihatsu Move variants.

  • Performance: Precision-engineered to minimize rolling resistance and eliminate road noise or wheel "wobble" caused by worn-out hubs.

  • Price: KSh 4,000

Daihatsu Mira Wheel Hub

Original price was: KSh5,000.00.Current price is: KSh4,000.00.

A high-precision wheel hub assembly that serves as the mounting point for the wheel and ensures smooth, friction-free rotation of the tires.

  • Condition: Genuine Clean Ex-Japan (Pre-greased, and noise-tested; zero rust on mounting surfaces).

  • Compatibility: Specifically designed for the Daihatsu Mira range, including the L275, LA300 (Mira e:S), and LA350 series.

  • Performance: Restores silent cabin operation by eliminating humming noises, improves fuel efficiency through reduced rotational friction, and ensures stable steering.

  • Price: KSh 4,000

Daihatsu Mirabreaks Discs

Original price was: KSh3,000.00.Current price is: KSh2,500.00.
  • High-quality replacement front brake discs (rotors) designed to provide reliable stopping power and heat dissipation for the Daihatsu Mira.

  • Condition: Genuine Clean Ex-Japan (Imported, resurfaced/smooth finish, zero cracks or warping).

  • Compatibility: Fits major models including the Mira L275, Mira e:S (LA300/LA350), and Mira Gino.

  • Performance: Restores smooth braking feel, eliminates steering wheel vibration (shuddering), and ensures consistent friction with brake pads.

  • Price: KSh 2,500

Daihatsu Mira Heavy Duty Coil Spring

Original price was: KSh10,000.00.Current price is: KSh8,000.00.

A heavy-duty suspension upgrade specifically designed to lift and stabilize the Daihatsu Mira, providing a permanent fix for "bottoming out" and improving overall road resilience.

  • Condition: Genuine Clean Ex-Japan (Imported high-tension steel with minimal previous wear).

  • Compatibility: Fits the Daihatsu Mira range including L275, LA300 (Mira e:S), and LA350 series.

  • Performance: Restores ride height, prevents rear-end sagging under passenger weight, and offers a firmer, safer handling experience on the highway.

  • Price: KSh 8,000 (Set/Pair).

Daihatsu Mira Brake Disks (Rotors)

Original price was: KSh4,000.00.Current price is: KSh3,000.00.
Restore your car’s stopping power with our premium Ex-Japan Brake Disks for the Daihatsu Mira. Sourced from low-mileage vehicles in Japan, these genuine rotors offer the original factory thickness and high-carbon steel composition needed for consistent, squeak-free braking. At KSh 3,000, they provide a safer and more durable solution than over-skimmed local rotors or low-quality generic replacements.

Daihatsu Mira Shock Absorbers

Original price was: KSh5,000.00.Current price is: KSh4,000.00.
Restore the smooth and steady ride of your Daihatsu Mira with our premium Ex-Japan Shock Absorbers. Sourced from low-mileage vehicles in Japan, these genuine OEM units are specifically tuned for the Mira’s lightweight chassis. At just KSh 4,000, they offer superior damping and durability compared to generic brands—eliminating bouncing and ensuring a comfortable, safe drive.

Genuine Daihatsu Mira Wheel Hub Assembly – Clean Ex-Japan Quality

Original price was: KSh5,000.00.Current price is: KSh4,000.00.
Restore the quiet, effortless roll of your Daihatsu Mira with our premium Ex-Japan Wheel Hub. Sourced from low-mileage Japanese vehicles, these genuine assemblies feature factory-sealed bearings designed for maximum smoothness and longevity. At KSh 4,000, you get an original OEM part that eliminates grinding noises and ensures your wheels stay perfectly aligned—offering far better durability than generic replacements.

Daihatsu Mira Wheel Hub Assembly

Original price was: KSh5,000.00.Current price is: KSh4,000.00.
Restore the quiet, effortless roll of your Daihatsu Mira with our premium Ex-Japan Wheel Hub. Sourced from low-mileage Japanese vehicles, these genuine assemblies feature factory-sealed bearings designed for maximum smoothness and longevity. At KSh 4,000, you get an original OEM part that eliminates grinding noises and ensures your wheels stay perfectly aligned—offering far better durability than generic replacements.

Daihatsu Mira Front Brake Discs

Original price was: KSh3,500.00.Current price is: KSh2,500.00.
  • Compatibility: Daihatsu Mira (L275S, L285S, L275V) / Mira e:S (LA300S, LA310S)

  • Position: Front Axle

  • Diameter: 211mm (Standard) or 234mm (Vented/Turbo models)

  • Type: High-Carbon Cast Iron (Solid or Vented)

  • Condition: Brand New Premium Quality

  • Price: KSh 2,500 – KSh 4,500 (Varies by size/type)

Please select your product
Product has been added to your cart
Compare (0)
