Passo 2018 Heavy Duty Coil Springs

KSh10,000.00
Core Metallurgical & Coil Geometry Specs
    • Coil Spring Design Profile: Cylindrical, Linear Rate Heavy-Duty Aftermarket Coil Spring configuration.
    • Wire Cross-Section Diameter (Thickness): 11.0 mm (Front Axle) | 10.5 mm (Rear Axle). Reinforced aftermarket specification; increased from standard factory stock wire to elevate load handling capability.
    • Spring Outer Diameter (Ø): 114 mm to 122 mm (Axle-position dependent).
    • Total Free Uncompressed Length (Height): 315 mm – 330 mm (Calibrated to maintain optimal unladen vehicle ride height and prevent sagging).
    • Total Active Coil Windings: 5.5 to 6.25 coils.
    • Material Composition: Induction-hardened 55CrSi High-Tensile Silicon-Chromium Spring Steel alloy, finished with an impact-resistant, anti-corrosion gloss powder coating layer.
Functional Suspension Dynamics & Performance Ratings
    • Spring Load Rate Classification: Heavy-Duty / Reinforced Cargo & Rough-Road Specification.
    • Spring Stiffness Constant (Rate): 24 N/mm (Front) | 21 N/mm (Rear). Engineered with a 25% to 35% increase in load-bearing stiffness compared to the highly compliant factory JDM setup.
    • Primary Mechanics Profile: Specifically calibrated to eliminate rear-end sagging under full passenger load or cargo capacity, minimize vehicle body roll during cornering transitions, and maximize ground clearance over uneven road infrastructure.
Target Chassis Code Applications
    • Toyota Platform Series: Third-Generation Toyota Passo (M700A 2WD / M710A 4WD series).
    • Cross-Platform Daihatsu Twin: Directly cross-compatible with the corresponding Daihatsu Boon (M700S / M710S) chassis platform configuration of identical production years.
Industry Cross-References & Manufacturer Part Bases
    • Toyota Factory Standard Base Part Roots (For dimensional reference): 48131-B1230 (Front) | 48231-B1130 (Rear).
    • Premium Aftermarket Heavy-Duty/Performance Alternatives:
        • Cobra Springs Heavy-Duty Series: Specialized reinforced performance specification matrices matching M700 chassis parameters [inferred].
        • OBK (Osaka Bane Inc.) Heavy-Duty Coil: Blue-painted reinforced aftermarket catalog series.
        • Lesjöfors / Kilen Reinforced Reference: Heavy-duty alternate variant series optimized for enhanced cargo capabilities.

Passo 2015 Wheel Hub

KSh4,500.00
Front Wheel Hub & Bearing Specifications (3rd Gen / KGC30 & NGC30 Series)
  • Bearing Style: Generation 1 Press-In Sealed Double-Row Angular Contact Ball Bearing. The standalone driven hub spindle flange presses directly into the front steering knuckle bearing.
  • Integrated Sensor Technology: Features a magnetic multi-pole ABS encoder ring built directly into one side of the inner oil seal face.
  • Axle Location: Front Axle (Symmetric Left / Right configuration).
  • Front Bearing Core Dimensions: Inner Diameter: 38.0 mm | Outer Diameter: 70.0 mm | Width / Thickness: 37.0 mm.
  • Wheel Lug Pattern Configuration: 4 Holes.
  • Pitch Circle Diameter (PCD): 4 x 100 mm.
  • Centering / Hub Pilot Outer Diameter: 54.0 mm.
  • Internal Drive Splines: 24 Internal Teeth on the hub center (interfacing with the outer CV joint axle stub).
  • Genuine Toyota/Daihatsu OEM Part Numbers: 43560-B1010, 43550-B1010 (Hub bearing assembly unit), 43510-B1011 (Hub axle component).
  • Major Aftermarket Cross-References: NSK 38BWD26, GMB GH32560, Koyo DAC38700037, Febest DAC38700037M-KIT.
Rear Wheel Hub & Bearing Unit Specifications (2WD Models)
  • Design Configuration: Generation 3 Modular, Unitized Bolt-On Rear Hub Assembly. The wheel hub flange, dual-row inner tracks, outer casing, and magnetic ABS target mechanics are integrated into a single, non-serviceable sealed module.
  • Axle Position: Rear Axle (Symmetric Left / Right mounting geometry).
  • Wheel Lug Arrangement: 4 Holes.
  • Rear Pitch Circle Diameter (PCD): 4 x 100 mm.
  • Centering / Brake Drum Pilot Diameter: 54.0 mm.
  • Mounting Flange Layout: 4-Bolt Rectangular Pattern matching to the rear trailing arm axle plate.
  • ABS Signal Integration: Pre-assembled internal multi-pole magnetic target track enclosed within the spindle sealing cap face.
  • Material Composition: Precision induction-hardened GCr15 High-Carbon Chromium Bearing Steel internals matched with a 55# structural forged steel hub casing.
  • Genuine Toyota/Daihatsu OEM Part Numbers (Rear): 42450-B1020, 42410-B1020.
  • Major Aftermarket Cross-References (Rear): GMB GH32630, Koyo 3DACF026F-23HS-AM, FAG 713621210.

Toyota Passo Sette Shocks

Original price was: KSh7,800.00.Current price is: KSh6,500.00.
  • Price: KSh 6,500

  • Condition: Ex-Japan Grade A (Certified high-pressure, family-load tested)

  • Personality: "The Family Protector." Engineered for maximum passenger comfort and heavy-load stability.

  • Compatibility: Grade A Ex-Japan suspension struts: Fits Toyota Passo Sette (M502E, M512E) and its sibling, the Daihatsu Boon Luminas (2008–2012)

Toyota Passo Drive Shafts B1020

Original price was: KSh6,000.00.Current price is: KSh5,000.00.
High-quality Ex-Japan Grade A drive shafts (B1020) for Toyota Passo designed to deliver smooth power transfer, reduced vibration, and reliable daily driving performance.

Price: 5,000

Compatibility: Toyota Passo (confirm chassis code B1020 before purchase), Compatible with selected Passo 2WD models

Performance: Smooth torque transfer to wheels

Passo 2012 Shock Absorbers

Original price was: KSh6,000.00.Current price is: KSh4,500.00.
2012 Toyota Passo Shock Absorbers – Price: 4500

Condition: Ex-Japan – Grade A, lightly used and fully tested for smooth, reliable performance.
Compatibility: Specifically designed for Toyota Passo ensuring precise OEM fit and easy installation.
Performance: Absorbs road shocks and vibrations, improving ride comfort, vehicle stability, and handling.
Durability: High-quality construction built to withstand daily driving and rough road conditions.
Value: Affordable at 4500, providing dependable suspension performance and enhanced driving comfort.

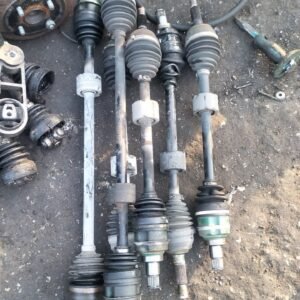

Passo B1020 Drive Shafts

Original price was: KSh7,100.00.Current price is: KSh5,000.00.
  • Item: Toyota Passo Front Drive Shaft (Left/Right).

  • Condition: Genuine Ex-Japan (Used, Grade A).

  • Compatibility: Fits Toyota Passo models KGC10, KGC15, KGC30, and KGC35 (2004–2016). Also compatible with Daihatsu Boon.

  • Performance: Eliminates clicking sounds during turns and shuddering during acceleration.

  • Price: KSh 5,000 (per side).

  • Location: Taleon Autospares Kenya

Passo Sette Shocks

Original price was: KSh8,000.00.Current price is: KSh6,500.00.

Heavy-duty Gas-Type Shock Absorber for the 7-seater Toyota Passo Sette.

  • Condition: Ex-Japan (Grade A)

  • Compatibility: Fits the M502E (2WD) and M512E (4WD) models (2008–2012).

    • Interchange: Shared with the Daihatsu Boon Luminas. Note that these are beefier than standard Passo (KGC10/KGC30) shocks to handle the 7-passenger load.

  • Performance: High-payload damping; prevents the "tail-drag" common in Settes when carrying a full house.

  • Price: Ksh 6,500 (Per unit).

Passo Lower Contol Arm

Original price was: KSh4,200.00.Current price is: KSh3,000.00.

Genuine OEM Front Lower Control Arm (Wishbone) assembly including pre-installed ball joint and bushings.

  • Condition: Ex-Japan Inspected for bushing cracks, ball joint play, and structural straightness.

  • Compatibility: Fits Toyota Passo generations (2004–2015+).

    • Chassis: KGC10, QNC10 (1st Gen) and KGC30, NGC30 (2nd Gen).

    • Cross-Fit: Identical to the Daihatsu Boon and Subaru Justy (M300 series).

  • Performance: Restores factory steering response, eliminates suspension "knocking" sounds, and prevents uneven tire wear.

  • Price: Ksh 3,000

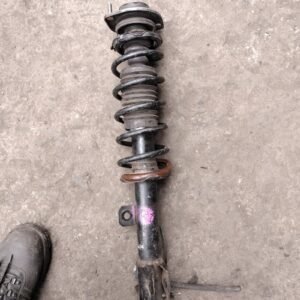

Passo Shock Absorber,Model 2015

Original price was: KSh6,000.00.Current price is: KSh5,000.00.

Toyota Passo 2015 Front Shock Absorber (Ex-Japan) Restore the smooth and nimble handling of your Toyota Passo with this Grade A Ex-Japan front shock absorber. Sourced from low-mileage vehicles in Japan, this genuine unit is designed specifically for the KGC30/KGC35 chassis to absorb road vibrations and improve steering precision. It is a direct-fit replacement that ensures a quiet, factory-standard ride at an unbeatable value.

  • Condition: Grade A Ex-Japan (Tested & Leak-free)

  • Compatibility: Toyota Passo (2010–2016) | Chassis KGC30, KGC35, NGC30

  • Performance: Gas-pressurized for superior stability and reduced braking distance.

  • Price: KSh 5,000 (Per Piece)

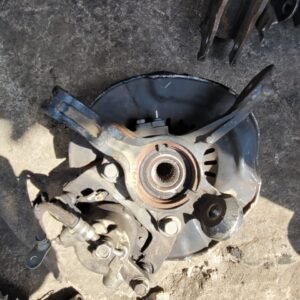

Passo Wheel Hub Model 2015

Original price was: KSh6,000.00.Current price is: KSh4,500.00.

A high-precision wheel hub assembly that serves as the mounting point for the wheel and ensures smooth, friction-free rotation of the tires.

  • Condition: Genuine Clean Ex-Japan (Imported, pre-greased, and noise-tested; zero rust on mounting surfaces).

  • Compatibility: Specifically designed for the 2nd Generation Toyota Passo (KGC30 / NGC30 series, 2010–2016).

  • Performance: Restores silent cabin operation by eliminating humming noises, improves fuel efficiency through reduced rotational friction, and ensures stable steering.

  • Price: KSh 4,500 (Per Piece).

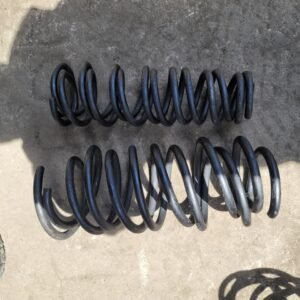

Passo Heavy Duty Springs, Model 2018

Original price was: KSh14,500.00.Current price is: KSh10,000.00.
  • A heavy-duty suspension upgrade designed to increase the ride height and load-bearing capacity of the 2018 Passo, preventing undercarriage damage on speed bumps.

  • Condition: Genuine Clean Ex-Japan (Imported, high-tension reinforced steel).

  • Compatibility: Designed for the 3rd Generation Toyota Passo (M700A / M710A series), 2016–Present.

  • Performance: Significantly restores ground clearance, eliminates "sagging" when the car is carrying passengers, and reduces body roll for a more stable highway drive.

  • Price: KSh 10,000 (Set/Pair).

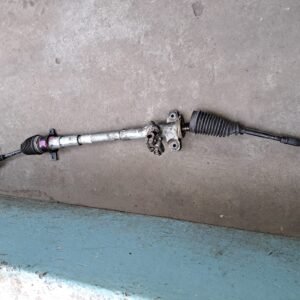

Toyota Passo Steering Rack

Original price was: KSh9,000.00.Current price is: KSh8,000.00.

Eliminate steering "play" and irritating knocking sounds with this Genuine Ex-Japan Steering Rack for the Toyota Passo. Sourced from low-mileage vehicles in Japan, this rack restores the light, precise, and effortless steering that the Passo is known for. A perfect, high-durability replacement for worn-out or leaking local units.

  • Fits: Toyota Passo (KGC10 / KGC30 Series)

  • Condition: Grade-A Ex-Japan (Hand-picked & Tested)

  • Location: Taleon Autospares Kenya

Toyota Passo 2008 Lower Control Arm

Original price was: KSh4,000.00.Current price is: KSh3,500.00.

Eliminate steering "wander" and front-end knocking sounds with this premium Ex-Japan Lower Control Arm for the Toyota Passo (2008 Model). Sourced for its high-grade original bushings and tight ball joints, this control arm is the key to restoring your car's alignment and handling. Built to withstand the rigors of daily driving on Kenyan roads.

  • Fits: Toyota Passo (2004–2010 Models / KGC10 / QNC10)

  • Condition: Grade-A Ex-Japan (Original OEM)

  • Location: Taleon Autospares Kenya

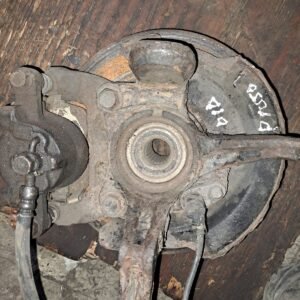

Genuine Toyota Passo 2010 Wheel Hub Bearing

Original price was: KSh4,000.00.Current price is: KSh3,500.00.

Silence the road and restore your car’s effortless glide with this premium Ex-Japan Wheel Hub Bearing for the Toyota Passo (2010 Model). Specifically sourced for the KGC30/KGC10 series, these original Japanese bearings provide a noise-free, vibration-free driving experience that low-quality local replacements simply cannot match.

  • Fits: Toyota Passo (2004–2010 / 2010–2016 Models)

  • Condition: Grade-A Ex-Japan (Hand-Picked & Tested)

  • Location: Taleon Autospares Kenya

Toyota Passo 2015 Lower Control Arm

Original price was: KSh4,000.00.Current price is: KSh3,500.00.

Restore your car's steering precision and eliminate "clunking" noises with this premium Ex-Japan Lower Control Arm for the Toyota Passo (2015 Model). Hand-picked for its structural integrity and high-grade bushings, this control arm ensures your wheels stay perfectly aligned for a smooth, safe drive.

  • Fits: Toyota Passo (2010–2016 Models / NGC30 / KGC30)

  • Condition: Grade-A Ex-Japan (Original OEM)

  • Location: Taleon Autospares Kenya

Toyota Passo 2008 Wheel Hub Bearing

Original price was: KSh4,000.00.Current price is: KSh3,500.00.

Restore the quiet, effortless glide of your Toyota Passo (2008) with this premium Ex-Japan Wheel Hub Bearing. Hand-picked for its superior Japanese steel and low-mileage durability, this bearing is the ultimate fix for humming noises and wheel vibrations. Engineered for a perfect fit to keep your daily commute smooth and safe.

  • Fits: Toyota Passo (2004–2010 Models / KGC10 / QNC10)

  • Condition: Grade-A Ex-Japan (Clean & Tested)

  • Location: Taleon Autospares Kenya

Toyota Passo Sette Wheel Hub Bearing

Original price was: KSh5,000.00.Current price is: KSh4,500.00.

Restore your vehicle's factory silence and smooth handling with this premium Ex-Japan Wheel Hub Bearing specifically for the Toyota Passo Sette. Sourced for its superior Japanese metallurgy and low-mileage durability, this bearing eliminates humming noises and ensures high-speed stability.

  • Fits: Toyota Passo Sette (M502E / M512E)

  • Condition: Grade-A Ex-Japan (Hand-Picked & Tested)

  • Location: Taleon Autospares Kenya

Toyota Passo Lower Control Arms.

Original price was: KSh4,000.00.Current price is: KSh3,000.00.
Restore your Toyota Passo’s handling and ride comfort with our premium Clean Ex-Japan Lower Control Arms. These are genuine, high-durability suspension units sourced directly from Japan, offering a perfect fit and superior longevity compared to generic replacements. If your car has started making knocking or clunking noises, don't wait—replace them today for a smoother, safer drive.

2015 Toyota Passo Front Shock Absorbers

Original price was: KSh6,000.00.Current price is: KSh5,000.00.
Restore your 2015 Toyota Passo’s smooth ride and stability with our genuine Clean Ex-Japan shock absorbers. Sourced from low-mileage vehicles in Japan, these original shocks offer superior dampening and longevity compared to generic local replacements.
