Mitsubishi Mirage Ex-Japan Shocks

KSh6,000.00
Damper Core Technology & Fitment
  • Chassis Codes Covered: DBA-A03A (1.2L 3G12 Engine) and DBA-A05A (1.0L 3G10 Engine)
  • Internal Valve Architecture: Low-pressure Nitrogen gas-charged, Twin-Tube hydraulic design
  • Front Damping Design: Integrated MacPherson structural suspension strut with top-pin mounting
  • Rear Damping Design: Standard telescopic double-acting shock absorber with top-pin/bottom-eye mounting [1, 2, 3]
Part Identification & Cross-References
  • OEM Front Strut Reference: 4060A493, 4060A243, 4060A244
  • OEM Rear Shock Reference: 4162A395, 4162A199
  • KYB Aftermarket Equivalent (Front R/L Interchange): 3320010 / 3320014
  • KYB Aftermarket Equivalent (Rear R/L Interchange): 3420010 [1, 2, 3]
Physical & Dimensional Profiles
  • Front Strut Assembly Shell Diameter: 51 mm
  • Front Strut Internal Piston Rod Diameter: 22 mm
  • Front Strut Total Length Profile: 532 mm extended / 383 mm collapsed
  • Rear Shock Ext. Flange Cylinder Diameter: 53 mm
  • Rear Shock Working Envelope Length: 550 mm maximum extension / 375 mm minimum collapse [1]
Chassis Torque Specifications
  • Front Upper Strut Tower Top Flange Nuts (3x): 33 ft-lbs (45 N·m)
  • Front Strut Center Piston Shaft Locknut: 44 ft-lbs (60 N·m)
  • Front Lower Strut Bracket-to-Knuckle Bolts (2x): 81 ft-lbs (110 N·m)
  • Front Brake Hose Bracket Bolt to Strut Body: 7 ft-lbs (10 N·m)
  • Rear Upper Shock Access Nut (Inside Cabin): 18 ft-lbs (25 N·m)
  • Rear Lower Shock Eye Bolt (To Trailing Arm): 74 ft-lbs (100 N·m)

Subaru Legacy B4 Bilstain Shocks

KSh8,000.00
Damper Core Technology & Design
  • Front Internal Layout: Upside-down (Inverted) Monotube Gas Pressure strut assembly (Bilstein patented setup for extreme structural rigidity under high cornering loads).
  • Rear Internal Layout: Standard Monotube Gas Pressure or Twin-tube (Variant-dependent, e.g., standard B4 replacement). [1, 2]
  • Damping Mechanism: Self-adjusting multi-stage valving (degressive piston design provides higher damping force at low speeds for chassis control, and softer force at high speeds to absorb bumps).
  • Gas Type: High-pressure Nitrogen charged to prevent fluid cavitation/foaming under rapid cycling. [1, 2]
OEM Reference Part Numbers (JDM Legacy B4 Spec-B BL5/BP5)
  • Front Right (Inverted Monotube): 20310AG420 / VE3-B831 (Bilstein B6 Heavy Duty alternate)
  • Front Left (Inverted Monotube): 20310AG430 / VE3-B832
  • Rear Damper Assembly: 20365AG260 / BE5-B833
  • Standard Bilstein Aftermarket B4 Line (Non-Inverted OE Replacement): Front Right: 22-165572 | Rear: 19-158686. [1, 2]
Physical Dimensions (Bilstein Rear B4 Example)
  • Collapsed Length: 255.5 mm (10.06 in)
  • Extended Length: 400.5 mm (15.77 in)
  • Stroke Profile: Shortened travel window on JDM B4 Spec-B models compared to the standard USDM non-Bilstein Legacy chassis.
  • Lower Mount Interface: Eyelet bushing
  • Upper Mount Interface: Stem thread [1]
Chassis Interface & Torque Specifications
  • Front Upper Strut Top Hat Mount Nuts (3x): 14.5 ft-lbs (20 N·m)
  • Front Strut Piston Center Top Nut: 41 ft-lbs (56 N·m)
  • Front Lower Strut Mount Clevis Bolts (to Knuckle - 2x): 114 to 129 ft-lbs (155 to 175 N·m) (Note: Upper bolt functions as the factory camber eccentric alignment cam).
  • Rear Upper Strut Top Hat Mount Nuts: 22 ft-lbs (30 N·m)
  • Rear Lower Strut Mount-to-Trailing Arm Bolt: 88.5 to 110 ft-lbs (120 to 150 N·m) [1, 2]
Factory Spring Rates (Spec-B Bilstein Pairings)
  • Front Spring Rate: ~3.2 kg/mm to 3.8 kg/mm (Linear rate configuration)
  • Rear Spring Rate: ~4.0 kg/mm to 4.8 kg/mm (Progressive/Linear multi-link arrangement) [1]

Toyota Markx GRX 130 X Japan Shocks

KSh5,000.00
System Configurations & Variants
  • Standard Suspension (Gas Type): Uses conventional twin-tube hydraulic gas-pressurized dampers.
  • AVS / Electric Dampers: Premium grades (e.g., 250G S-Package, Premium) utilize an Adaptive Variable Suspension (AVS) electronic damping system. These feature an actuator mounting bracket on top of the shaft to change internal valving dynamically. [1, 2, 3, 4]
OEM / KYB Part Numbers
  • Front Axle Assembly:
    • Standard (Left/Right): 48510-22B20 / 48520-22B20
    • Electronic / AVS (KYB OE Eco-Line): 721001 (Front RH) and 721002 (Front LH) [1]
  • Rear Axle Assembly:
    • Standard (Left/Right): 48530-22680 / 48540-22680
    • Electronic / AVS (KYB OE Eco-Line): 721003 (Rear Universal) [1]
Dimensional & Mounting Specifications
  • Design Profile: MacPherson Strut equivalent configuration for the Front (Double Wishbone integration) and an Eye-to-Pin/Pin-Bottom style Shock for the Multi-link Rear.
  • Upper Shaft Stem Thread: M10 x 1.25 mm (Standard) / M12 configuration for localized AVS stepper-motor engagement caps.
  • Upper Mounting Nut Torque Spec: 25 N·m (255 kgf·cm)
  • Lower Installation Bolt Size: M14 (Front lower clevis mount to lower arm; Rear lower eyelet mount to carrier). [1, 2, 3, 4]
Damping & Spring Calibration (KYB Reference)
  • Damping Medium: High-pressure Nitrogen gas (N₂) paired with premium multi-grade all-weather fluid to combat cavitation. [1]
  • Factory-Matched Spring Rates (KYB Extage Reference):
    • Front Spring Rate: 52.9 N/mm (5.4 kg/mm)
    • Rear Spring Rate: 58.3 N/mm (6.0 kg/mm)[1]

Toyota Mark X GRX 120 Ex-Japan Shocks

KSh5,000.00
Internal Technology & Damping Profile
  • Front Shock Internal Design: Double-acting, Gas-charged High-Pressure Twin-Tube Strut Architecture.
  • Rear Shock Internal Design: Heavy-duty, Gas-charged Monotube Damper Assembly. [1, 2]
  • Damping Medium: Nitrogen gas (N₂) combined with multi-grade all-weather hydraulic fluid to reduce aeration and fade during hard cycling.
  • Standard Operating Valence: Velocity-sensitive valving engineered to maintain vehicle stability under high-speed cornering while preserving classic executive rear-wheel-drive (RWD) highway comfort.
Part Numbers & Aftermarket Cross-Reference
  • Front Axle OEM Part Numbers (Toyota / JDM Factory):
    • Right Hand (RH): 48510-80160, 48510-80161, 48510-22A00, 48510-22A40, 48510-80403
    • Left Hand (LH): 48520-29845, 48520-29855, 48520-80045, 48520-80126 [1, 2, 3]
  • Rear Axle OEM Part Numbers (Toyota / JDM Factory): 48530-80397, 48530-22620, 48530-22510 [1]
  • KYB (Kayaba) Aftermarket Reference Numbers (JDM Gas-A-Just / Excel-G):
    • Front Right Hand (RH): 551112
    • Front Left Hand (LH): 551113
    • Rear Axle (Universal LH/RH): 551120 [1, 2, 3, 4, 5]
Chassis, Platform & Fitment Compatibility
  • Chassis Range: Toyota S180 Platform (Rear-Wheel Drive luxury configuration).
  • Target Model Codes: GRX120 (2.5L 250G variants) and GRX121 (3.0L 300G variants).
  • Platform Architecture Sharing: Swaps identical structural dimensions, lower clevis mounts, upper rod threads, and mounting stroke geometry with the JDM Toyota Crown (GRS180, GRS182, GRS200) and Lexus IS/GS series of the same production era.
  • Fitment Exclusion: GRX125 (4WD) models use specific front differential layout cutouts and unique stroke lengths; standard GRX120 front struts do not bolt onto 4WD spindles. [1, 2, 3, 4]
Component Sizing & Interface Layout
  • Front Lower Mounting Clevis: Eye-joint bracket configured to mate directly to the front double-wishbone lower control arm pivot.
  • Rear Lower Mounting Bushing: Integral metal sleeve insulated by a vulcanized, high-durometer rubber bushing.
  • Piston Rod Configuration: Micro-smooth chrome-plated piston rods featuring factory integrated hard stops to prevent bottoming out against the upper seat assembly.
  • AVS Note: Non-electronic variations use a standard manual threaded piston rod tip; models equipped with Toyota’s Adaptive Variable Suspension (AVS) use a hollow-top rod profile to insert the electronic actuator control pin.

Suzuki Alto Model 2018 Front Shocks

KSh5,000.00

Product Description: Suzuki Alto / Alto Works / Alto Turbo RS (HA36S & HA36V Chassis, 2014–2021 / 2018 Model Year) Complete Front Shock Absorber Set

Overview

The Front Shock Absorber Set for the 2018 Suzuki Alto (HA36S 2WD & HA36V Van / 4WD Chassis, 8th Generation 2014–2021 with 660cc R06A Naturally Aspirated & Turbocharged Powertrains) is an OEM-spec, gas-pressurized front strut replacement set engineered to restore light, responsive steering control, eliminate nose-diving, and absorb harsh urban road impacts. Specially calibrated for the lightweight, high-rigidity HEARTECT platform architecture of the HA36 Suzuki Alto, these twin-tube dampers restore factory ride stability and cornering balance.

Technical Specifications & Characteristics

  • Vehicle Compatibility:

    • 8th Generation Suzuki Alto: HA36S (2WD Passenger / Works / Turbo RS) & HA36V (2WD / 4WD Commercial Van) (2014–2021 / 2018 Model Year) (Also cross-fits twin platform Mazda Carol HB36S).

  • Position: Front Axle (Left Front LH & Right Front RH specific).

  • Operating System: Twin-Tube Low-Pressure Nitrogen Gas-Charged Hydraulic Struts.

  • Damping Medium: High-viscosity all-weather synthetic hydraulic fluid charged with nitrogen gas to prevent fluid foaming, internal aeration, and thermal performance fade during daily urban driving.

  • Build Quality: High-tensile seamless steel body cylinder, micro-polished induction-hardened chrome piston rod, and multi-lip NOK fluid seals to eliminate oil leaks.

  • Mounting Configuration: Direct factory bolt-on fitment attaching to upper strut top mounts, lower steering knuckle clevis bolts, stabilizer link brackets, and brake hose/ABS sensor wiring clips.

Key Features & Performance Benefits

  1. Stops Front-End Nose-Diving & Pitching: Restores firm front rebound control, eliminating forward pitching under braking and controlling body lean through tight turns.

  2. Absorbs Potholes & Rough Road Chatter: Dampens sharp pavement chatter, expansion joints, and speed humps, preserving a comfortable ride for driver and front passenger.

  3. Restores Precise Steering & Wheel Alignment: Holds front camber and toe angles steady under dynamic travel, protecting front tires from patchy tread cupping and uneven shoulder wear.

  4. Reinforced Lower Knuckle Brackets: Heavy-duty lower clevis brackets withstand severe road impacts and maintain rigid steering geometry alignment.

Variant & Fitment Notes (2WD HA36S vs. 4WD HA36V / Standard vs. Works Turbo RS)

Important: While standard HA36S Alto 2WD models share identical front strut body dimensions, 4WD variants and performance-oriented Alto Turbo RS / Alto Works models feature firmer damper valving and altered spring seat heights:

  • Standard 2WD (HA36S / HA36V) OEM Reference:

    • Front Right (RH) Strut: 41601-74P00, 41601-74P10, 41601-74P01

    • Front Left (LH) Strut: 41602-74P00, 41602-74P10, 41602-74P01

  • Alto Turbo RS / Works (HA36S Sport Trim) OEM Reference:

    • Front Right (RH) Strut: 41601-74P50, 41601-74P60

    • Front Left (LH) Strut: 41602-74P50, 41602-74P60

  • Popular Aftermarket Brands: KYB (Excel-G / New SR Special NST5628R/L for HA36S), Tokico, Monroe OESpectrum, GAB, Febest, and SenSen.

Honda N Wagn Front Shocks

KSh5,000.00
Strut Architecture & Design
  • Suspension Type: Independent MacPherson strut suspension.
  • Dampening System: Hydraulic twin-tube, low-pressure nitrogen gas-charged strut assembly.
  • Mounting Configuration:
    • Top Mount: 3-bolt upper strut mount plate with an integrated rubber isolation spring seat and strut bearing.
    • Bottom Mount: Rigid 2-bolt clamp bracket welded to the outer shell casing, clamping directly onto the front steering knuckle.
  • Integrated Hardware: Features a welded bracket for the stabilizer link (sway bar end-link) and a mounting clip for the brake hose line.
Dimensional Specifications (660cc S07A / S07B Key Car Chassis)
  • Extended Length: 455 mm to 468 mm (varies marginally between 2WD JH1/JH3 and 4WD JH2/JH4 ride height setups).
  • Collapsed Length: 315 mm to 325 mm.
  • Total Piston Stroke: 140 mm to 143 mm.
  • Piston Rod Diameter: 18.0 mm (high-tensile chrome-plated steel).
  • Outer Cylinder Casing Diameter: 45.0 mm.
Fastener & Torque Specifications
  • Upper Strut Center Piston Rod Nut: 44 Nm (approx. 33 ft-lbs).
  • Upper Strut Mount Base Flange Nuts (To Chassis Body): 34 Nm (approx. 25 ft-lbs).
  • Lower Strut-to-Knuckle Pinch Bolts (M12): 78 Nm to 85 Nm (approx. 58–63 ft-lbs).
  • Stabilizer / Sway Bar Link Nut (To Strut Bracket): 39 Nm (approx. 29 ft-lbs).
  • Front Wheel Lug Nuts (Road Wheel to Hub): 103 Nm (approx. 76 ft-lbs).
Component Mass
  • Average Unit Mass (Dry Strut Assembly): ~3.8 kg to 4.2 kg per side (excluding the coil spring).

Subaru Forester SG5 Rear Shocks

KSh10,000.00
1. Core & Dimensional Specifications
  • Design Type: Gas-pressure suspension strut assembly incorporating an integrated lower spring seat. [1]
  • Internal Construction: Standard replacement units (such as the premium Japanese JDM-spec KYB Excel-G series) utilize a low-pressure nitrogen gas-charged twin-tube system to eliminate oil aeration and foaming during rough driving. [1, 2]
  • Mounting Interfaces:
    • Top Mount: Three-bolt upper top hat pin mount (M8 studs) matching the rear strut tower body.
    • Bottom Mount: Double-bolt bottom clamp clevis bracket that sandwiches directly onto the rear wheel hub/knuckle assembly. [1, 2]
  • Key Measurements (Standard KYB 334344/334345 specs):
    • Extended Length: ~610 mm
    • Collapsed Length: ~415 mm
    • Piston Stroke Travel: ~195 mm
2. The Self-Leveling Suspension (SLS) vs. Standard Setup
Many JDM/Ex-Japan SG5 models arrived equipped with SLS struts, which feature a wider body cylinder housing a built-in hydraulic pump mechanism. This internal pump relies on the vehicle’s natural bouncing motion to pump fluid and raise the rear to standard ride height under heavy cargo loads.
  • The SLS Failure Issue: When the internal seals fail, the vehicle's rear end sags significantly.
  • The Conversion Metric: Because replacement OEM SLS struts are highly expensive, many owners convert to standard struts (like KYB 334344 / 334345). Crucial Note: If converting from SLS to standard shocks, you must also replace the rear coil springs with stiffer, standard-matching coils. The original SLS coil springs are much softer and cannot support the vehicle's weight on standard non-SLS dampers alone. [1, 2, 3]
3. Genuine OEM & Brand Cross-Reference Numbers
  • Rear Left Hand (LH) Strut Assembly: 20360SA010, 20360SA050, 20360SA130 (KYB Aftermarket Cross: 334345 / 339150).
  • Rear Right Hand (RH) Strut Assembly: 20360SA000, 20360SA040, 20360SA120 (KYB Aftermarket Cross: 334344 / 339149). [1, 2, 3]
4. Factory Torque Specifications
Important: To prevent premature bushing binding and twisting, snug all fasteners while the car is raised, lower the vehicle completely until it sits under its own weight (at ride height), and apply the final torque settings. [1, 2]
Fastener Connection Profile Metric Spec (N·m) Imperial Spec (ft-lbs)
Lower Strut-to-Knuckle Bolts (2 large M14 bolts per side) 200 N·m 145 ft-lbf
Upper Strut Tower Top Hat Nuts (3 per side inside the cabin) 30 N·m 22 ft-lbf
Central Piston Shaft Top Lock Nut 60 N·m 44 ft-lbf
Rear Sway Bar End Link Nuts 45 N·m 33 ft-lbf

Subaru Impreza GG2 Rear Shocks

KSh10,000.00
Component & Material Specifications
  • Right Hand (RH) Engine Mount (Timing Side):
    • Type: Hydraulic (Hydro-filled) dampening insulator.
    • Function: Houses an internal fluid chamber that dampens engine movement and prevents low-frequency idle vibration from passing into the cabin frame. This is crucial for smoothing out the natural imbalances of the 3-cylinder turbo variants.
    • Body Material: Die-cast aluminum alloy bracket joined to a stamped steel chassis anchoring flange.
  • Left Hand (LH) Transmission Mount (Gearbox Side):
    • Type: Compressed rubber-to-metal bonded cushion insulator.
    • Function: Suspends the 5-speed manual, 6-speed automatic, or CVT gearbox housing securely onto the left-hand subframe frame rail.
  • Rear Torque Rod (Lower Engine Pitch Stopper):
    • Type: "Dog-bone" structural link assembly.
    • Function: Limits fore-and-aft engine rotational pitching during sudden throttle changes, clutch engagement, and heavy braking.
Genuine Suzuki OEM Part Numbers
Part numbers vary based on engine type, transmission pairing (Manual vs. CVT), and whether it is a standard hatchback or a Swift Sport variant. Core OEM production part numbers include:
  • Right Hand (RH) Hydraulic Engine Mount: 11610-52R00 / 11610-68R00
  • Left Hand (LH) Transmission Mount Assembly: 11620-52R00 / 11620-68R10
  • Rear Lower Torque Rod / Stopper: 11710-52R00 / 11710-68R00
Factory Fastener Torque Specifications
Important: To avoid twisting the vulcanized rubber compounds out of their neutral resting positions, support the engine weight with an under-hoist support stand or floor jack. Fully lower the vehicle's weight onto its suspension before applying final torque settings to the primary chassis fasteners.
Fastener Connection Profile Metric Spec (N·m) Imperial Spec (ft-lbs)
RH Engine Mount Central Through-Bolt (to Engine Bracket) 85 N·m 63 ft-lbf
RH Mount-to-Chassis Frame Bolts 50 N·m 37 ft-lbf
LH Transmission Mount Center Nut/Bolt 80 N·m 59 ft-lbf
Rear Torque Rod Frame Through-Bolts 90 N·m 66 ft-lbf

Nissan Skyline Ex-Japan Shocks

KSh10,000.00
1. Structural & Core Specifications
  • Internal Internal Dampening Technology: Premium Ex-Japan dampers (such as the standard KYB Excel-G or Japanese KYB New SR Special) rely on a low-pressure Nitrogen gas-charged twin-tube system. This design prevents internal oil aeration and fade under high-speed cornering. [1, 2]
  • Mounting Profiles (R33 / R34 platforms as benchmark):
    • Front Mount Type: Top pin threaded adapter (M12x1.25) with a specialized Bottom Clamp / Fork Clevis interface that slides onto the suspension third-link arm.
    • Rear Mount Type: Independent "Top Eye, Bottom Eye" cylindrical bushing loop layout. [1, 2, 3]
  • Dampening Fluid Seal: Multi-lip high-pressure synthetic oil seals bonded with micro-polished chrome piston rods to withstand extreme travel loads. [1]
2. Multi-Link Generation & Drivetrain Variances
When purchasing "Ex-Japan" shocks out of salvage or parts warehouses, you must specify the exact drivetrain configuration:
  • Rear-Wheel Drive (RWD / 2WD - GT, GTS, GT-T): The lower front shock uses an open fork/clevis base that wraps directly around the knuckle linkage. [1]
  • All-Wheel Drive (AWD / 4WD - GT-R, GTS-4): The front shock uses a cylindrical eyelet base instead of a fork to safely clear the front CV half-shafts axle assemblies. The valving profile is significantly stiffer to cope with the heavy RB26DETT/ATTESA E-TS weight footprint. [1]
3. Representative Dimensions & OEM Cross-References
Typical physical constraints for standard R-Chassis 2WD front replacement shocks (e.g., KYB 340000 series) include: [1]
  • Extended Length: ~540 mm to 556 mm
  • Collapsed/Compressed Length: ~383 mm to 388 mm
  • Piston Rod Stroke: ~150 mm to 170 mm
  • Piston Rod Core Diameter: 12 mm to 22 mm heavy-duty shaft
  • Baseline Front OEM Replacement Part Number: 56110-15U02 [1, 2]
4. Factory Torque Specifications
To secure the multi-link shock dampening towers correctly, follow these factory torque settings: [1]
Connection Location Metric Torque (N·m) Imperial Torque (ft-lbs)
Front Strut Top Mount-to-Chassis Body 40–55 N·m 29–40 ft-lbf
Front Shock Base Clevis Bolt-to-Link 39–54 N·m 28–40 ft-lbf
Rear Shock Tower Upper Nuts 16–19 N·m 12–14 ft-lbf
Rear Shock Lower Eyelet Bracket-to-Knuckle 88–108 N·m 65–80 ft-lbf

Mazda Demio Model 2005 Shocks Mountain

KSh2,000.00
Front Top Strut Mount Specifications
    • Design Profile: Single-unit heavy-duty upper suspension plate. It houses a vulcanized rubber cushion island surrounding a central metal guide sleeve, paired with an independent low-friction thrust ball bearing.
    • Material Construction: Stamped carbon steel frame plates bonded with high-durability natural rubber (elastomer) compound.
    • Bearing Function: The separate strut mount bearing sits directly beneath the top cap, allowing the entire spring and strut cylinder to rotate without friction when the steering wheel turns.
Genuine Mazda OEM Part Numbers
Depending on the automotive parts market, the upper mounting plate and the inner rotational bearing can be bought together or as individual replacement units.
    • Front Strut Top Mount (Left & Right are identical): DD32-34-380C (Commonly manufactured aftermarket by brands like Febest under part number MZSS-DY3F). [1]
    • Front Strut Bearing Only: D350-34-38X / D651-34-38XA.
    • Compatible Shock Strut Assemblies (KYB Dampers):
        • Front Right Hand (RH): 333400 / NST3017R
        • Front Left Hand (LH): 333401 / NST3017L [1]
Rear Shock Mounting Specification
    • Configuration: The rear setup uses a separate shock absorber and coil spring configuration. The top mount of the rear shock does not use a large metal plate assembly like the front strut; instead, it utilizes a heavy-duty top pin mounting bushed sleeve (Top Pin, Bottom Eye design) secured directly through the vehicle's rear wheel well frame arch. [1]
Factory Fastener Torque Specifications
Warning: When replacing the front shock mount, the central piston rod lock nut must only be unscrewed or tightened while the coil spring is safely locked down with a physical strut spring compressor tool to avoid catastrophic failure. [1]
Fastener Location Metric Spec (N·m) Imperial Spec (ft-lbs)
Strut Top Mount Nuts (Attaching the plate to the body tower) 31–45 N·m 23–33 ft-lbf
Central Piston Rod Lock Nut (Strut shaft to Mount) 60–75 N·m 44–55 ft-lbf
Lower Strut Pinch Bolts (Strut base to Steering Knuckle) 93–117 N·m 69–86 ft-lbf
Rear Shock Absorber Upper Pin Nut 25–35 N·m 18–26 ft-lbf

Nissan Teana Shocks Model J32

KSh7,500.00
1. Front Shock Absorbers (Strut Assembly)
  • Suspension Design: MacPherson Strut setup [1, 2]
  • System Type: Gas Pressure, Twin-Tube (Double Cylinder) [1, 2, 3]
  • Fitting Position: Front Axle (Left and Right side specific) [1]
  • Mounting Type: Top pin/stem mount, Bottom clamp configuration [1, 2]
  • Damping Effect: Single Action / Single Effect damping force [1]
  • Common Aftermarket Part Numbers:
    • Right Hand (RH): KYB 339228, 339146
    • Left Hand (LH): KYB 339229, 339147 [1, 2]
  • Genuine OEM Cross-References: 54302-JN81A, 54302-KA30A, E4302-JN01D [1]
2. Rear Shock Absorbers
  • Suspension Design: Independent Multi-link suspension layout
  • System Type: Gas Pressure, Telescopic Twin-Tube damper
  • Fitting Position: Rear Axle (Left and Right are interchangeable)
  • Mounting Type: Top pin/stem mount, Bottom eye-ring mount
  • Piston Rod Diameter: 12 mm
  • Outer Tube Diameter: 45 mm
  • Stroke/Length Profiles: Max length 359 mm | Min length 253 mm
  • Common Aftermarket Part Number: KYB 348024, TRW JGT960T
  • Genuine OEM Cross-References: E6210JC43A [1, 2, 3, 4, 5]
3. Platform & Powertrain Compatibility
  • Chassis Platform: Nissan J32 / J32R / J32Z series
  • Drivetrain Layouts: Optimized for Front-Wheel Drive (FWD) and All-Wheel Drive (250XL Four / QR25DE) setups
  • Engine Variations: Tuned for the weight distributions of the 2.0L (MR20DE), 2.5L V6 (VQ25DE), and 3.5L V6 (VQ35DE) models

Toyota Noah Rear Shocks 2003 To 2015

KSh3,000.00
1st Generation (AZR60 / AZR65) | 2001 – 2007
  • System Type: Gas Pressure, Twin-Tube telescopic shock absorber
  • Fitting Position: Rear Axle (Left and Right)
  • Mounting Type: Top pin/stem mount with cushions, bottom eye ring mount
  • Genuine OEM Part Numbers: 48531-80735, 48531-80753, 48530-80077
  • Common Aftermarket Part Number: KYB 344480
  • Drive Layout: Compatible with 2WD (AZR60G) and 4WD (AZR65G) variations [1, 2, 3, 4, 5, 6]
2nd Generation (ZRR70 / ZRR75) | 2007 – 2014
  • System Type: Gas Pressure, Twin-Tube
  • Fitting Position: Rear Axle (Left and Right)
  • Mounting Type: Top pin/stem mount with support assembly, bottom eye ring mount
  • Genuine OEM Part Numbers: 48531-80761 (Production years 2010–2014), 48530-28140 (RH), 48540-28020 (LH)
  • Common Aftermarket Part Number: KYB 344362
  • Chassis Compatibility: Broadly fits ZRR70G, ZRR70W, ZRR75G, and ZRR75W [1, 2, 3, 4, 5, 6, 7, 8, 9]
3rd Generation (ZRR80 / ZRR85) | 2014 – 2021
  • System Type: Gas Pressure, Twin-Tube (KYB Excel-G Series baseline)
  • Fitting Position: Rear Axle (Left and Right)
  • Mounting Type: Top pin/stem mount, bottom eye ring mount
  • Common Aftermarket Part Number: KYB 3440109
  • Chassis Compatibility: Fits ZRR80G, ZRR80W, ZRR85G, ZRR85W series [1, 2, 3]

Suzuki Alto Model 2015 Rear Shock

KSh3,500.00
1. Damping Architecture & Performance Mechanics
  • System Design Type: Gas-Pressurized Telescopic Hydraulic Damper
  • Damping Design: Twin-tube double-acting low-pressure hydraulic system
  • Fitting Position: Rear Axle (Symmetric construction; Left-Hand and Right-Hand units are mechanically interchangeable)
  • Functional Intent: Controls vehicle pitch and eliminates high tire bounce on ultra-light chassis profiles (sub-700 kg vehicle curb weight)
2. Mounting Configuration & Structural Connections
  • Upper Mounting Connection: Stem / Pin top end featuring a threaded stud assembly complete with two vulcanized rubber isolation cushions, retaining washers, and locking nuts.
  • Lower Mounting Connection: Closed metal eyelet ring containing a factory pre-pressed steel-sleeved horizontal natural rubber bushing.
  • Chassis Series Compatibility: HA36S, HA36V (Fits standard 2WD and 4WD configurations, though valving rates vary slightly between drivetrain packages)
3. Genuine OEM & Aftermarket Part Numbers
  • Genuine Suzuki OEM Part Numbers: 41800-74P00, 41800-74P10, 41800-74P01
  • Aftermarket Cross-References: KYB Excel-G / Gas-A-Just Series (Part Numbers: 3420011 / 3430013 depending on specific suspension travel calibration)
4. Metallurgical & Component Composition
  • Piston Rod Build: Induction-hardened carbon steel rod core finished with an anti-friction, mirror-smooth hard chrome plating layer to extend oil seal lifespan.
  • Gas Media: Low-pressure Nitrogen gas (N₂) injection to continuously suppress hydraulic oil foaming, aeration, and thermal fade under continuous travel cycles.
  • Fluid Seal: High-integrity multi-lip synthetic nitrile rubber pressure seal paired with an integrated external dust/grit wiper ring.
  • Surface Coating: Finished with an anti-corrosion black electrophoresis paint layer to shield the damper outer tube from road debris, moisture, and rust.

Toyota Passo Rear Shocks

KSh2,500.00
1. Damping Architecture & Performance Mechanics
  • System Design Type: Gas-Pressurized Telescopic Hydraulic Damper
  • Damping Technology: Twin-Tube double-acting low-pressure design
  • Fitting Position: Rear Axle (Symmetric construction; Left-Hand and Right-Hand units are mechanically interchangeable)
  • Functional Intent: Suppresses vehicle pitch, stabilizes lateral body roll, and eliminates high wheel bouncing under varying payload thresholds.
  • Standard Service Lifespan: Approximately 60,000 to 100,000 km (Recommended inspection cycles every 10,000 to 20,000 km). [1]
2. Mounting Matrix & Physical Dimensions
  • Upper Mounting Connection: Pin/Stem top end featuring a threaded stud assembly complete with two vulcanized rubber isolation cushions and locking washers. [1]
  • Lower Mounting Connection: Rigid eyelet ring containing a pre-pressed steel-sleeved horizontal natural rubber bushing linked by a metric M12 structural union bolt. [1]
  • Stroke Action Profile: Short-travel piston calibration custom-valved for sub-1,000 kg compact hatchback kerb weights.
3. Part Number Profiles By Vehicle Generation
3rd Generation (M700 / M710 Series: 2016–2023) [1]
  • Genuine OEM Reference: 48530B9275 (Marked body tag: 48531-B1250)
  • 4WD Specific OEM Reference: 48530B9160
  • Aftermarket Cross-Reference: KYB Gas Damper Series Part Number 343406 [1, 2]
2nd Generation (KGC30 / NGC30 Series: 2010–2016) [1]
  • Genuine OEM Reference: 48531-B1070, 48531-B1090
  • Aftermarket Cross-Reference: KYB Excel-G Series Part Number 343447 [1]
1st Generation (KGC10 / QNC10 Series: 2004–2010) [1]
  • Genuine OEM Reference: 48531-B1010, 48531-B1011, 48531-B1012, 48531-B1040
  • Aftermarket Cross-Reference: KYB Part Number 343406 [1, 2, 3]
4. Metallurgical & Component Specs
  • Piston Rod Engineering: High-tensile carbon steel rod core, induction-hardened and coated with a mirror-smooth micro-grooved chrome finish to eliminate seal drag.
  • Working Charge Media: Low-pressure Nitrogen gas (N₂) configuration to prevent hydraulic fluid cavitation, foaming, and high thermal fade during rapid cycles. [1]
  • Fluid Seal: High-durability multi-lip synthetic nitrile rubber seal accompanied by an integrated external debris scraper edge to restrict entry of environmental grit. [1]

Mazda 3 Front Shock

KSh12,500.00
1. Mazda 3 4th Generation (BP Series: 2019–Present)
Engineered for the SkyActiv-Vehicle Architecture to enhance linear handling and tire-to-road contact profiles.
  • Suspension Architecture: MacPherson Strut Assembly with an integrated coil spring tower perch
  • Damping Design: Twin-tube gas-pressurized hydraulic system
  • Fitting Position: Front Axle (Asymmetric Left-Hand and Right-Hand specific units)
  • Chassis Series Compatibility: BP5P, BP8P, BPEK, BPFP (2WD & AWD models)
  • Genuine OEM Part Numbers:
    • Right Hand (RH): BCKA-34-700, BCKA-34-700A, BDGH-34-700
    • Left Hand (LH): BCKA-34-900, BCKA-34-900A, BDGH-34-900
  • Aftermarket Cross-References: KYB Excel-G Series (Part Numbers: 3340182 for RH / 3340183 for LH)

2. Mazda 3 3rd Generation (BM/BN Series: 2014–2018)
Optimized for traditional SkyActiv-Chassis ride dynamics, balancing sportiness with road vibration isolation.
  • Suspension Architecture: MacPherson Strut Assembly with top-mount bearing integration
  • Damping Design: Gas-charged double-acting hydraulic pressure system
  • Fitting Position: Front Axle (Asymmetric Left-Hand and Right-Hand specific units)
  • Chassis Series Compatibility: BM5FS, BM5AS, BMEFS, BM2FS, BYEFP
  • Genuine OEM Part Numbers:
    • Right Hand (RH): B45A-34-700, B45A-34-700A, B62G-34-700
    • Left Hand (LH): B45A-34-900, B45A-34-900A, B62G-34-900
  • Aftermarket Cross-References: KYB Excel-G Series (Part Numbers: 3340114 for RH / 3340115 for LH)

Material & Structural Blueprint (All Generations)
  • Piston Rod Architecture: Induction-hardened, high-tensile carbon steel finished with an anti-friction, micro-smooth hard chrome plating layer to extend oil seal lifespan.
  • Working Gas Media: Low-pressure Nitrogen gas (N₂) injection to continuously suppress hydraulic oil foaming, aeration, and thermal fade under load cycles.
  • Valving Control: Multi-stage, velocity-sensitive internal valving matrix that scales hydraulic resistance automatically relative to piston stroke speed.
  • Fluid Seals: Multi-lip synthetic rubber oil pressure seal combined with an external abrasive dirt-scraper ring.

Toyota Noah Shock Model 2012

KSh3,000.00
Core Architectural Specifications (Front Struts)
  • Suspension System Layout: Independent MacPherson Strut front suspension.
  • Internal Shock Mechanics: Gas-Charged Twin-Tube low-pressure nitrogen gas technology (calibrated to eliminate hydraulic fluid aeration, cavitation, and damping fade).
  • Strut Assembly Design: Structural, load-bearing suspension strut carrying the lower integrated spring seat plate.
  • Mounting Configuration: Symmetrical Top Pin / Stud upper chassis link fastened via a 3-bolt suspension tower support, paired with a heavy-duty Saddle Bracket / Bottom Plate dual-bolt steering knuckle housing clamp layout.
  • Orientation: Asymmetrical, side-specific Left Hand (LH) and Right Hand (RH) directional assemblies.
Core Architectural Specifications (Rear Shocks)
  • Suspension System Layout: Semi-independent Torsion Beam / Axle Beam suspension system.
  • Damper Assembly Design: Standalone, non-load-bearing Telescopic Shock Absorber (operates entirely separated from the rear coil spring seats).
  • Internal Shock Mechanics: Low-pressure gas-charged twin-tube setup.
  • Mounting Configuration: Threaded Top Pin bushing stem adapter paired with a Bottom Eyelet sleeve through-bolt mounting layout on the rear axle trailing arms.
  • Orientation: Symmetrical layout featuring identical, interchangeable units for both the left and right rear positions.
Chassis Platform Application
  • Chassis Platform Generation: Late Second-Generation Toyota Noah (ZRR70 / ZRR75 series, 2012 production year).
  • Drive Form Profiles: Internal valving dimensions, stroke limits, and damping rates are split strictly between standard Front-Wheel Drive (2WD / ZRR70) chassis lines and heavy-duty, higher-load All-Wheel Drive (4WD / ZRR75) variations.
Factory OEM & Aftermarket Cross-Reference Numbers
  • Toyota Factory Genuine OEM Base Roots:
    • Front Right Hand (RH): 48510-80543, 48510-28230, 48510-80396
    • Front Left Hand (LH): 48520-80289, 48520-28230, 48520-80199
    • Rear Axle Assemblies: 48530-80547, 48530-28560
  • KYB (Excel-G OE Replacement Series) Production Catalog Codes:
    • Front Right Hand (RH): 339102
    • Front Left Hand (LH): 339103
    • Rear Axle (Both Sides): 344362
Structural Fastener Installation Torques
  • Strut-to-Steering Knuckle Clamp Bolts (Bottom dual-bolts): 164 Nm (121 ft-lbs).
  • Upper Chassis Suspension Tower Flange Nuts (3-bolt layout): 39 Nm (29 ft-lbs).
  • Center Strut Piston Rod Retaining Nut: 56 Nm (41 ft-lbs).
  • Front Sway Bar Stabilizer Link End Nuts: 74 Nm (55 ft-lbs).

Toyota Noah Shock Model 2010

KSh3,000.00
Core Architectural Specifications (Front Struts)
  • Suspension System Layout: Independent MacPherson Strut front suspension.
  • Internal Shock Mechanics: Gas-Charged Twin-Tube low-pressure nitrogen gas technology (calibrated to minimize hydraulic fluid aeration, foaming, and damping fade).
  • Strut Assembly Design: Structural, load-bearing suspension strut carrying the lower integrated spring seat plate.
  • Mounting Configuration: Symmetrical Top Pin / Stud upper chassis link fastened via a 3-bolt suspension tower support, paired with a heavy-duty Saddle Bracket / Bottom Plate dual-bolt steering knuckle housing clamp layout.
  • Orientation: Asymmetrical, side-specific Left Hand (LH) and Right Hand (RH) directional assemblies.
Core Architectural Specifications (Rear Shocks)
  • Suspension System Layout: Semi-independent Torsion Beam / Axle Beam suspension system.
  • Damper Assembly Design: Standalone, non-load-bearing Telescopic Shock Absorber (operates entirely separated from the rear coil spring seats).
  • Internal Shock Mechanics: Low-pressure gas-charged twin-tube setup.
  • Mounting Configuration: Threaded Top Pin bushing stem adapter paired with a Bottom Eyelet sleeve through-bolt mounting layout on the rear axle trailing arms.
  • Orientation: Symmetrical layout featuring identical, interchangeable units for both the left and right rear positions.
Chassis Platform Application
  • Chassis Platform Generation: Facelift Second-Generation Toyota Noah (ZRR70 / ZRR75 series, 2010 production year).
  • Drive Form Profiles: Internal valving dimensions, stroke limits, and damping rates are split strictly between standard Front-Wheel Drive (2WD / ZRR70) chassis lines and heavy-duty, higher-load All-Wheel Drive (4WD / ZRR75) variations.
Factory OEM & Aftermarket Cross-Reference Numbers
  • Toyota Factory Genuine OEM Base Roots:
    • Front Right Hand (RH): 48510-80543, 48510-28230, 48510-80396
    • Front Left Hand (LH): 48520-80289, 48520-28230, 48520-80199
    • Rear Axle Assemblies: 48530-80547, 48530-28560
  • KYB (Excel-G OE Replacement Series) Production Catalog Codes:
    • Front Right Hand (RH): 339102
    • Front Left Hand (LH): 339103
    • Rear Axle (Both Sides): 344362
Structural Fastener Installation Torques
  • Strut-to-Steering Knuckle Clamp Bolts (Bottom dual-bolts): 164 Nm (121 ft-lbs).
  • Upper Chassis Suspension Tower Flange Nuts (3-bolt layout): 39 Nm (29 ft-lbs).
  • Center Strut Piston Rod Retaining Nut: 56 Nm (41 ft-lbs).
  • Front Sway Bar Stabilizer Link End Nuts: 74 Nm (55 ft-lbs).

Toyota Voxy Shock Model 2008

KSh3,500.00
Core Architectural Specifications (Front Struts)
  • Suspension System Layout: Independent MacPherson Strut.
  • Internal Shock Mechanics: Gas-Charged Twin-Tube low-pressure nitrogen gas technology to eliminate internal hydraulic fluid aeration and cavitation.
  • Strut Assembly Design: Structural, load-bearing suspension strut carrying the lower integrated spring seat plate.
  • Mounting Configuration: Symmetrical Top Pin / Stud upper chassis link fastened via a 3-bolt suspension tower support geometry, paired with a heavy-duty Saddle Bracket / Bottom Plate dual-bolt steering knuckle housing clamp layout.
  • Orientation: Asymmetrical, side-specific Left Hand (LH) and Right Hand (RH) directional assemblies.
Core Architectural Specifications (Rear Shocks)
  • Suspension System Layout: Semi-independent Torsion Beam / Axle Beam suspension system.
  • Damper Assembly Design: Standalone, non-load-bearing Telescopic Shock Absorber (operates entirely separated from the rear coil spring seats).
  • Internal Shock Mechanics: Gas-pressure twin-tube setup.
  • Mounting Configuration: Threaded Top Pin bushing stem adapter paired with a Bottom Eyelet sleeve cross-bolt mounting layout on the rear axle trailing arms.
  • Orientation: Symmetrical layout featuring identical, interchangeable units for both the left and right rear wheel hubs.
Chassis Platform Application
  • Chassis Platform Generation: Second-Generation Toyota Voxy (ZRR70 / ZRR75 series).
  • Drive Form Profiles: Internal valving dimensions and dampening stroke tolerances split strictly between standard Front-Wheel Drive (2WD / ZRR70) chassis lines and heavy-duty, higher-load All-Wheel Drive (4WD / ZRR75) variations.
Factory OEM & Aftermarket Cross-Reference Numbers
  • Toyota Factory Genuine OEM Base Roots:
    • Front Right Hand (RH): 48510-80368, 48510-28320
    • Front Left Hand (LH): 48520-80131, 48520-28320, 48520-80251
    • Rear Axle Assemblies: 48530-80547, 48540-29365
  • KYB (Excel-G OE Replacement Series) Production Catalog Codes:
    • Front Right Hand (RH): 335068
    • Front Left Hand (LH): 335069
    • Rear Axle (Both Sides): 344362 (Alternative legacy code: 344480)
Structural Fastener Installation Torques
  • Strut-to-Steering Knuckle Clamp Bolts (Bottom dual-bolts): 164 Nm (121 ft-lbs).
  • Upper Chassis Tower Flange Mounting Nuts (3-bolt layout): 39 Nm (29 ft-lbs).
  • Center Strut Piston Rod Retaining Nut: 56 Nm (41 ft-lbs).
  • Front Sway Bar Stabilizer Link End Nuts: 74 Nm (55 ft-lbs).

Toyota Noah Model 2008 Front Shock

KSh3,500.00
Core Architectural Specifications
    • Suspension Layout: Independent MacPherson Strut front suspension system.
    • Internal Shock Mechanics: Gas-Charged Twin-Tube low-pressure nitrogen gas technology (calibrated to eliminate hydraulic fluid aeration and foaming over rough road surfaces).
    • Strut Assembly Design: Structural Suspension Strut (acts as a vital load-bearing suspension path and mechanical carrier for the front steering knuckle).
    • Mounting Configuration: Symmetrical Top Pin / Stud upper chassis link fastened via a 3-bolt tower pattern, paired with a heavy-duty Saddle Bracket / Bottom Plate dual-bolt steering knuckle housing clamp layout.
    • Orientation: Asymmetrical, side-specific Left Hand (LH) and Right Hand (RH) directional assemblies.
Chassis Platform Application
    • Chassis Platform Generation: Second-Generation Toyota Noah (ZRR70 / ZRR75 series).
    • Drive Form Configurations: Internal valving dimensions and dampening rates are split strictly between standard Front-Wheel Drive (2WD / ZRR70) chassis code lines and heavy-duty, higher-load All-Wheel Drive (4WD / ZRR75) variations.
Factory OEM & Aftermarket Cross-Reference Numbers
    • Toyota Factory Genuine OEM Base Roots:
        • Front Right Hand (RH): 48510-80396, 48510-80543, 48510-28230
        • Front Left Hand (LH): 48520-80199, 48520-80289, 48520-28230
    • KYB (Excel-G OE Replacement Series) Production Catalog Codes:
        • Front Right Hand (RH): 339102
        • Front Left Hand (LH): 339103
Structural Fastener Installation Torques
  • Strut-to-Steering Knuckle Clamp Bolts (Bottom dual-bolts): 164 Nm (121 ft-lbs).
  • Upper Chassis Tower Flange Mounting Nuts (3-bolt layout): 39 Nm (29 ft-lbs).
  • Center Strut Piston Rod Retaining Nut: 56 Nm (41 ft-lbs).
  • Front Sway Bar Stabilizer Link End Nuts: 74 Nm (55 ft-lbs).

Nissan B15 Shocks

KSh3,000.00
Core Architectural Specifications (Front Struts)
  • Suspension Layout: Independent MacPherson Strut.
  • Internal Shock Mechanics: Gas-Charged Twin-Tube low-pressure nitrogen configuration (engineered to reduce hydraulic fluid aeration and foaming on rough terrain).
  • Strut Assembly Design: Load-bearing structural suspension strut.
  • Mounting Configuration: 3-bolt upper triangular tower mounting pattern paired with a bottom dual-bolt steering knuckle mounting saddle bracket.
  • Orientation: Asymmetrical, side-specific Left Hand (LH) and Right Hand (RH) directional assemblies.
Core Architectural Specifications (Rear Shocks)
  • Suspension Layout Compatibility: Multi-Link Beam Axle or rigid trailing link rear suspension setup (depending on standard 2WD or 4WD chassis configurations).
  • Shock Assembly Design: Standalone, non-load-bearing Telescopic Shock Absorber (damper operates completely separate from the independent coil spring seat).
  • Mounting Configuration: Top Pin threaded rod connection paired with a Bottom Eyelet sleeve through-bolt bushing.
  • Orientation: Symmetrical layout (identical interchangeable units for both Left and Right rear positions).
Chassis & Drive Train Variations (Nissan Sunny B15 / Sentra Platform)
  • 2WD (Front-Wheel Drive) vs. 4WD (FNB15 Chassis): Rear shock dampening rates and internal oil-valving dimensions are split strictly between standard Front-Wheel Drive models and the heavier-duty, higher-load All-Wheel Drive (FNB15 / i-Four) platforms.
  • Material Composition: Induction-hardened carbon steel piston rods paired with premium multi-lip Nitrile rubber (NBR) oil seals to survive demanding dust conditions.
Factory OEM & Aftermarket Cross-Reference Numbers
  • Nissan Genuine Factory JDM OEM Roots:
    • Front Right Hand (RH): 54302-4M403, 54302-4M425, 54302-WD025
    • Front Left Hand (LH): 54303-4M403, 54303-4M425, 54303-WD025
    • Rear Axle外 Dampers: 56210-4M400, 56210-4M425, 56210-4M725
  • KYB (Excel-G OE Replacement Series) Part Numbers:
    • Front Right Hand (RH): 333310
    • Front Left Hand (LH): 333311
    • Rear Axle (Both Sides): 341279

Toyota BB Front Shocks

KSh3,000.00
Core Architectural Specifications
  • Suspension Architecture: Independent MacPherson Strut setup. [1, 2]
  • Internal Strut Mechanics: Gas-Pressure Twin-Tube low-pressure nitrogen configuration (OEA standard engineered to prevent hydraulic fluid cavitation and foaming over uneven road surfaces). [1, 2]
  • Shock Absorber Design: Structural Suspension Strut (operates as a critical load-bearing suspension path and structural carrier for the front steering knuckle assembly). [1, 2]
  • Mounting Configuration: Symmetrical Top Pin / Stud upper chassis link fastened via a 3-bolt tower pattern, paired with a heavy-duty Saddle Bracket / Bottom Plate dual-bolt steering knuckle housing clamp layout. [1, 2, 3]
Generation & Chassis Variations
The specific internal valving metrics and structural dimension baselines split precisely across the two prominent Japanese Domestic Market (JDM) production generations:
1. First Generation: NCP30 Platform (2000–2005) — NCP30 (1.3L 2NZ-FE) / NCP31 (1.5L 1NZ-FE) / NCP35 (4WD)
  • Chassis Setup: Shared global Toyota NBC platform footprint. [1, 2]
  • KYB (Excel-G Series) Aftermarket Part Numbers:
    • Front Right Hand (RH): 333368
    • Front Left Hand (LH): 333369
  • Subaru/Toyota Genuine OEM Base Roots: 48510-59135, 48520-59135, 48510-49035. [1]
2. Second Generation: QNC20 Platform (2006–2016) — QNC20 (1.3L K3-VE) / QNC21 (1.5L 3SZ-VE) / QNC25 (4WD)
  • Chassis Setup: Co-developed Daihatsu sub-compact baseline matrix. [1, 2]
  • KYB (Excel-G Series) Aftermarket Part Numbers:
    • Front Right Hand (RH): 3350000
    • Front Left Hand (LH): 3350001 [1, 2]
  • Subaru/Toyota Genuine OEM Base Roots: 48510-B1030, 48520-B1030, 48510-B1070. [1]
Structural Fastener Installation Torques
  • Strut-to-Steering Knuckle Clamp Bolts (Bottom dual-bolts): 153 Nm (113 ft-lbs).
  • Upper Chassis Tower Flange Mounting Nuts (3-bolt layout): 39 Nm (29 ft-lbs).
  • Center Strut Piston Rod Retaining Nut: 47 Nm (34 ft-lbs).
  • Front Sway Bar Stabilizer Link End Nuts: 74 Nm (55 ft-lbs). [1, 2]

Subaru Impreza GP2 Shock Mountain

KSh3,500.00
Front Strut Top Mount Specifications
    • Mounting Configuration: 3-bolt upper triangular tower mounting footprint.
    • Chassis Isolator Construction: Heavy-duty vulcanized shore-hardness rubber chemically bonded to a stamped structural steel core casing.
    • Integrated Bearing Profile: Heavy-duty internal axial thrust ball bearing mechanism integrated within the rubber seat to facilitate smooth, unbinding rotation of the MacPherson strut during steering inputs.
    • Axle Symmetry: Symmetrical, non-directional layout (same component services both the Front Left Hand and Front Right Hand strut assemblies).
    • Subaru Factory Genuine OEM Part Numbers: 20320FG012, 20320FG013, 20320FG002.
    • Factory Hardware Installation Torques:
        • Chassis Tower Flange Nuts (3 per mount): 20 Nm (14.5 ft-lbs).
        • Center Piston Rod Strut Nut: 55 Nm (41 ft-lbs).
Rear Shock Top Mount Specifications
  • Mounting Configuration: Dual-bolt (2-bolt) linear top-hat pin configuration.
  • Suspension Architecture Match: Specifically configured for the independent multi-link rear suspension platform utilized on the GP2 chassis.
  • Isolator Type: Isolated thick-sandwich rubber bushing damper configuration designed to suppress high-frequency road vibrations and Cabin NVH (Noise, Vibration, and Harshness).
  • Subaru Factory Genuine OEM Part Numbers: 20370FG012, 20370FJ001.
  • Factory Hardware Installation Torques:
    • Upper Chassis Fasteners (2 per mount): 30 Nm (22 ft-lbs).
    • Center Damper Shaft Retaining Nut: 25 Nm (18.4 ft-lbs).

Subaru Outback Model BP5 Bilstain Shocks

KSh8,000.00
Front Axle Bilstein Strut Specifications
  • Suspension Layout: Independent MacPherson Strut.
  • Internal Shock Architecture: Inverted Monotube (Upside-Down Technology). The piston rod is integrated inside the bottom axle casing, while the thicker outer tube acts as the structural slider. This drastically increases lateral rigidity under heavy cornering loads. [1]
  • Damping Medium: High-pressure nitrogen gas with a single-tube hydraulic fluid separation piston. [1]
  • Mounting Configuration: 3-bolt top pin hat assembly with a lower dual-bolt steering knuckle clamp layout. [1]
  • Damping Forces (Measured @ 0.52 m/s):
    • Compression Force: 1090 N
    • Rebound Force: 2460 N [1]
  • Orientation: Asymmetrical, side-specific left and right structures.
Rear Axle Bilstein Shock Specifications
  • Suspension Layout: Multi-Link Independent Rear Suspension.
  • Internal Shock Architecture: Standard Monotube (Gas Pressure).
  • Shock Design Type: Non-load-bearing telescopic damper (does not carry a spring seat; operates independently of the rear coil spring).
  • Lower Bushing Bushing Assembly OD: 40 mm (Specific to the BP/BL platform; thicker than later generation models).
  • Mounting Connections: Top Pin threaded rod | Bottom Eyelet sleeve through-bolt bushing. [1, 2, 3]
Factory OEM & Aftermarket Part Numbers
  • Bilstein Aftermarket Performance Upgrade (B6 Heavy Duty Series):
    • Front Right Hand (RH): 35-118312 (Alternative: VE3-3066RJ)
    • Front Left Hand (LH): 35-118305 (Alternative: VE3-3066LJ)
    • Rear Axle Dampers: 24-118323 [1, 2, 3]
  • Subaru Factory Genuine JDM OEM Numbers (Spec.B Baseline):
    • Front Right Hand (RH): 20310AG401, 20310AG424, 20310AG100
    • Front Left Hand (LH): 20310AG411, 20310AG434
    • Rear Axle Dampers: 20365AG274

Toyota Mark X Shock

KSh6,500.00
Core Architectural Specifications
  • Suspension Layout: Front Double Wishbone Independent Suspension system. [1, 2]
  • Shock Internal Mechanics: Gas-Charged Monotube (Gas-A-Just) high-pressure tech or Twin-Tube Low Pressure setups depending on the trim package. [1, 2]
  • Adaptive Variable Suspension (AVS): Higher-tier sports packages (e.g., Crown Athlete/Mark X 350S trims) utilize Electronic Actuator-Controlled Shock Absorbers with stepping-motor variable damping control. [1, 2, 3]
  • Mounting Assemblies: Top chassis link anchored by a 3-bolt tower pattern, while the bottom base secures symmetrically to the double-wishbone lower control arm pivot hub. [1, 2]
Dimensional & Functional Alignment
  • Chassis Configurations: Toyota X-Chassis platform (GRX120 / GRX121 First Gen; GRX130 / GRX133 Second Gen).
  • Axle Position Alignment: Front Axle (highly asymmetrical side-specific engineering for left and right positions).
  • Drive Form Profiles: Specialized internal valving layouts split strictly between Rear-Wheel Drive (2WD) chassis footprints and separate specialized heavy-duty cross-sections for All-Wheel Drive (4WD/i-Four) iterations. [1, 2, 3, 4, 5]
Standard Part Numbers & Identification Cross-References
  • Standard 2WD Aftermarket KYB References:
    • Front Right Hand (RH): 551112
    • Front Left Hand (LH): 551113 [1, 2, 3]
  • Factory Genuine OEM Reference Root Bases:
    • 48510-80160, 48510-80414, 48510-80351, 48520-29845. [1, 2, 3]
  • Premium Electronic/AVS Adaptive References:
    • Front Electronic Strut Series: 721001, 721002. [1, 2]
  • Standard 4WD/i-Four Dedicated Shock Codes:
    • Front 4WD Strut Configuration: 551128, 551129.

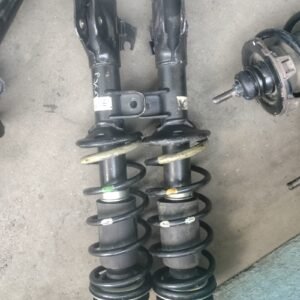

Suzuki Model Wagon R Complete Shocks

KSh5,000.00
Front Axle Shock Absorber Specifications (Strut Assembly)
    • Suspension Architecture: Independent MacPherson Strut. [1]
    • Shock Internal Mechanics: Gas-Pressure Twin-Tube low-pressure nitrogen gas configuration. [1, 2]
    • Strut Design Type: Structural Suspension Strut (load-bearing element). [1, 2]
    • Mounting Connections: Top Pin chassis mounting fastener (via a single center shaft rod nut nestled in the strut top hat mount) paired with a Bottom Clamp dual-bolt steering knuckle bracket configuration. [1, 2, 3]
    • Piston Rod Outer Diameter: 18 mm. [1]
    • Cylinder Bore Internal Diameter: 27 mm. [1]
    • Outer Strut Tube Diameters: 45 mm base structural body tapering to 30 mm upper step. [1, 2]
    • Front Strut Length Profiles:
        • Maximum Fully Extended Length: 477 mm – 498 mm.
        • Collapsed / Minimum Working Length: 351 mm. [1, 2]
    • Asymmetrical Left/Right Layout: Front struts are side-specific due to directional brake hose tabs and anti-roll bar bracket symmetry. [1, 2]
Rear Axle Shock Absorber Specifications (Dampers)
    • Suspension Architecture: Isolated Trailing Link (ITL) or rigid 3-link axle setup depending on standard 2WD or 4WD chassis configs. [1]
    • Damper Design Type: Telescopic Shock Absorber (non-load bearing standalone unit separated from the coil spring seat). [1, 2]
    • Mounting Connections: Top Eyelet / Bottom Eyelet sleeve bushing pins (secured with 85 Nm factory mounting torque values). [1, 2, 3]
    • Outer Shell Core Diameter: ~38 mm. [1]
    • Rear Shock Length Profiles:
        • Maximum Fully Extended Length: 401 mm – 412 mm.
        • Collapsed / Minimum Working Length: 270 mm. [1, 2, 3]
Genuine Factory & Aftermarket Identification Numbers
  • Suzuki Genuine Factory OEM Part Roots:
      • Front Struts: 41602-62C00, 41602-85200, 41602-85201, 41602-M55RA0.
      • Rear Shocks: 41800-M70F50, 41800-70K00, 41800-58JC1. [1, 2, 3]
  • KYB (Excel-G Series) Component Cross-References:
    • Front Right Strut: 333306 / 334464
    • Front Left Strut: 333307

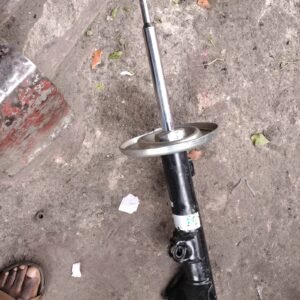

Mercedes-Benz W203 C-Class Shock Absorbers

Original price was: KSh7,500.00.Current price is: KSh6,000.00.
Genuine Mercedes W203 Shocks for KSh 6,000. Grade A Ex-Japan quality for executive comfort, high-speed German stability, and silent cabin refinement.
  • Price: KSh 6,000

  • Condition: Ex-Japan Grade A (Certified high-pressure; leak-tested for German specs)

  • Personality: "The Executive Glide." Engineered to restore the legendary Mercedes-Benz "Magic Carpet" ride.

  • Compatibility: Premium Grade A Ex-Japan suspension struts: Fits Mercedes-Benz C-Class W203 (2000–2007) models, including the C180, C200, C230, and C240 (Sedan, Kompressor, and Wagon variants)

Subaru Forester SG5 Bilstein Shock Absorbers

Original price was: KSh8,000.00.Current price is: KSh7,000.00.

Upgrade your vehicle's handling and sport performance with these premium Bilstein Shock Absorbers for the Subaru Forester SG5. Sourced as genuine Ex-Japan parts, these pressurized gas shocks provide superior damping and stability, perfect for the driver who demands a firmer, more controlled ride.

PRICE: KSh 7,000

COMPATIBILITY: Precision-engineered for the Subaru Forester SG5 series (2002–2007).

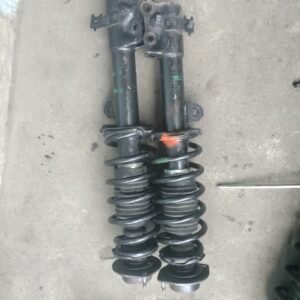

Toyota Passo Sette Shocks

Original price was: KSh7,800.00.Current price is: KSh6,500.00.
  • Price: KSh 6,500

  • Condition: Ex-Japan Grade A (Certified high-pressure, family-load tested)

  • Personality: "The Family Protector." Engineered for maximum passenger comfort and heavy-load stability.

  • Compatibility: Grade A Ex-Japan suspension struts: Fits Toyota Passo Sette (M502E, M512E) and its sibling, the Daihatsu Boon Luminas (2008–2012)

Showing 28 of 159 results
Please select your product
Product has been added to your cart
Compare (0)
