Honda Airwave Lower Arm Control

KSh4,000.00
Part Identification & Fitment
  • OEM Right (Passenger Side) Part Number: 51350-SLA-023, 51350-SLA-033
  • OEM Left (Driver Side) Part Number: 51360-SLA-023, 51360-SLA-J04
  • Design Type: Triangular L-shaped A-arm
  • Component Assembly: Rigid steel body with a pre-installed horizontal pivot bushing (front), a vertical compliance bushing (rear), and an integrated non-serviceable lower ball joint. [1, 2, 3, 4]
Physical Dimensions (Standard Aftermarket Market Multi-Fit)
  • Material: Pressed Steel
  • Length: 480 mm
  • Width: 400 mm
  • Height: 87 mm
  • Average Weight: ~4.51 kg (9.9 lbs) [1]
Fastener Torque Specifications
  • Front (Horizontal) Control Arm-to-Subframe Bolt: 40 ft-lbs (54 Nm)
  • Rear (Vertical) Compliance Bushing-to-Subframe Bolt: 61 ft-lbs (83 Nm)
  • Lower Ball Joint Castle Nut to Steering Knuckle: 36 to 43 ft-lbs (49 to 59 Nm) (Note: Tighten further within this range only to align the castle nut slot with the ball joint cotter pin hole).
  • Stabilizer / Sway Bar End Link to Lower Arm Nut: 22 ft-lbs (30 Nm)

Honda Insight Model 2014 Lower Control Arm

KSh4,000.00
Part Numbers & Placement
  • OEM Right (Passenger Side) Part Number: 51350-TM8-A01
  • OEM Left (Driver Side) Part Number: 51360-TM8-A01
  • Design Type: A-shape / Triangular lower suspension arm
  • Component Assembly: Fully integrated unit containing the lower control arm body, compliance rubber bushings, and an integrated non-serviceable lower ball joint. [1, 2, 3, 4, 5]
Physical Dimensions (Standard Aftermarket Market Multi-Fit)
  • Material: Sheet Steel
  • Length: 590 mm
  • Width: 320 mm
  • Height: 90 mm [1]
Fastener Torque Specifications
  • Front (Horizontal) Control Arm-to-Subframe Bolt: 54 ft-lbs (73 Nm)
  • Rear (Vertical) Compliance Bushing-to-Subframe Bolts: 51 ft-lbs (69 Nm)
  • Ball Joint Castle Nut to Steering Knuckle: 40 to 47 ft-lbs (54 to 64 Nm) (Note: Tighten further if needed only to align the castle nut gaps with the ball joint hole to insert a new cotter pin).
  • Control Arm Guard/Splash Plate Bolts: 16 ft-lbs (22 Nm)

Honda Insight Model 2013 Lower Control Arm

KSh4,000.00
OEM / Reference Part Numbers
  • Front Left Side (LHS): 51360-TK6-A01 / 51360-TF5-A00
  • Front Right Side (RHS): 51350-TK6-A01 / 51350-TF5-A00
Dimensional Specifications
  • Arm Segment Length: 357 mm
  • Ball Joint Cone Size / Pivot Diameter: Ø 17.5 mm
  • Ball Pin / Joint External Thread Size: M14 x 1.5 Right-Hand Thread (RHT)
  • Subframe Mounting Alignment: Configured for standard factory 17 mm and 19 mm hex flange fasteners.
Material & Component Properties
  • Structural Material: High-tensile stamped sheet steel matrix engineered for strict vehicle weight reduction and crash safety energy absorption.
  • Pre-assembled Bushings: Features a large, rearward horizontal rubber compliance damper ("hockey puck" style bushing) paired with a forward horizontal steel sleeve inner bushing to manage vehicle NVH (Noise, Vibration, and Harshness).
  • Ball Joint Assembly: Integrated pre-greased, sealed heavy-duty lower ball joint with a high-flexibility protective rubber dust boot.
  • Surface Coating: High-durability black anti-corrosion electro-deposition paint (E-coating) for maximum rust resistance.
  • Net Unit Weight: ~3.24 kg (7.14 lbs) per bare side arm assembly.

Honda Insight Model 2012 Lower Control Arm

KSh4,000.00
OEM / Reference Part Numbers
  • Front Left Side (LHS): 51360-TK6-A01 / 51360-TF5-A00
  • Front Right Side (RHS): 51350-TK6-A01 / 51350-TF5-A00
Dimensional Specifications
  • Arm Segment Length: 357 mm
  • Ball Joint Cone Size / Pivot Diameter: Ø 17.5 mm
  • Ball Pin / Joint External Thread Size: M14 x 1.5 Right-Hand Thread (RHT)
  • Subframe Mounting Alignment: Configured for standard factory 17 mm and 19 mm hex flange fasteners.
Material & Component Properties
  • Structural Material: High-tensile stamped sheet steel matrix engineered for strict vehicle weight reduction and crash safety energy absorption.
  • Pre-assembled Bushings: Features a large, rearward horizontal rubber compliance damper ("hockey puck" style bushing) paired with a forward horizontal steel sleeve inner bushing to manage vehicle NVH (Noise, Vibration, and Harshness).
  • Ball Joint Assembly: Integrated pre-greased, sealed heavy-duty lower ball joint with a high-flexibility protective rubber dust boot.
  • Surface Coating: High-durability black anti-corrosion electro-deposition paint (E-coating) for maximum rust resistance.
  • Net Unit Weight: ~3.24 kg (7.14 lbs) per bare side arm assembly.

Honda Insight Model 2011 Lower Control Arm

KSh4,000.00
OEM / Reference Part Numbers
  • Front Left Side (LHS): 51360-TK6-A01 / 51360-TF5-A00
  • Front Right Side (RHS): 51350-TK6-A01 / 51350-TF5-A00 [1, 2, 3]
Dimensional Specifications
  • Arm Segment Length: 357 mm (Note: Total packaged box profile length spans up to 590 mm)
  • Ball Joint Cone Size / Pivot Diameter: Ø 17.5 mm
  • Ball Pin / Joint External Thread Size: M14 x 1.5 Right-Hand Thread (RHT)
  • Subframe Mounting Alignment: Configured for standard factory 17 mm and 19 mm hex flange fasteners. [1, 2]
Material & Component Properties
  • Structural Material: High-tensile stamped sheet steel matrix engineered for strict vehicle weight reduction and crash safety energy absorption. [1]
  • Pre-assembled Bushings: Features a large, rearward horizontal rubber compliance damper ("hockey puck" style bushing) paired with a forward horizontal steel sleeve inner bushing to manage vehicle NVH (Noise, Vibration, and Harshness). [1]
  • Ball Joint Assembly: Integrated pre-greased, sealed heavy-duty lower ball joint with a high-flexibility protective rubber dust boot. [1, 2]
  • Surface Coating: High-durability black anti-corrosion electro-deposition paint (E-coating) for maximum rust resistance.
  • Net Unit Weight: ~3.24 kg (7.14 lbs) per bare side arm assembly. [1]

Honda Insight Model 2010 Lower Control Arm

KSh4,000.00
OEM / Reference Part Numbers
  • Front Left Side (LHS): 51360-TK6-A01 / 51360-TF5-A00 / 51360-TG5-C01
  • Front Right Side (RHS): 51350-TK6-A01 / 51350-TF5-A00 / 51350-TM8-A01 / 51350-TG5-C01 [1, 2, 3]
Dimensional Specifications
  • Ball Joint Cone Size / Pivot Diameter: Ø 17.5 mm
  • Ball Pin / Joint External Thread Size: M14 x 1.5
  • Subframe Flange Mounting Bolt Compatibility: Matches 17 mm and 19 mm factory hex flange bolt configurations.
Material & Component Properties
  • Structural Material: Heavy-duty stamped sheet steel matrix engineered for optimized vehicle weight distribution and strength.
  • Pre-assembled Bushings: Features a large, rearward horizontal rubber compliance damper ("hockey puck" style bushing) paired with a forward horizontal inner steel sleeve bushing to absorb road vibrations and isolate Cabin NVH (Noise, Vibration, and Harshness). [1, 2]
  • Ball Joint Assembly: Integrated pre-greased, sealed heavy-duty lower ball joint with a high-flexibility protective rubber dust boot. [1]
  • Surface Coating: High-durability black anti-corrosion electro-deposition paint (E-coating) for rust prevention.
  • Net Unit Weight: ~3.3 kg to 4.7 kg per side (depending on whether it is a bare aftermarket steel variant or a complete factory assembly with bracket layout). [1, 2]

Honda Fit Model 2014 Lower Control Arm

KSh4,000.00
OEM / Reference Part Numbers
  • Third Generation (GK Series – GK5 Chassis, Late 2014+):
    • Front Right Side (RHS): 51350-T5G-H01 / 51350-T5R-A00
    • Front Left Side (LHS): 51360-T5G-H01 / 51360-T5R-A00 [1]
  • Second Generation (GE Series – GE6 / GE8 / GP1, Early 2014 Production):
    • Front Right Side (RHS): 51350-TF0-030 / 51350-TK6-A01
    • Front Left Side (LHS): 51360-TF0-030 / 51360-TK6-A01 [1, 2]
Dimensional Specifications
  • Second Generation (GE Chassis):
    • Ball Joint Cone Size / Pivot Diameter: Ø 17.5 mm
    • Ball Pin / Joint External Thread Size: M14 x 1.5
    • Net Unit Weight: ~3.3 kg (7.27 lbs) per side [1]
  • Third Generation (GK Chassis):
    • Ball Joint Cone Size: Ø 16 mm
    • Ball Pin / Joint External Thread Size: M12 x 1.25
    • Net Unit Weight: ~3.1 kg (6.83 lbs) per side
Material & Component Properties
  • Structural Material: Heavy-duty stamped sheet steel / structural metal matrix.
  • Pre-assembled Bushings: Features a large, rearward horizontal compliance damper ("hockey puck" style rubber bushing) paired with a forward horizontal inner sleeve bushing to isolate NVH.
  • Ball Joint Assembly: Integrated pre-greased, sealed heavy-duty lower ball joint with a protective rubber dust boot.
  • Surface Coating: High-durability black anti-corrosion electro-deposition paint (E-coating) or powder finish. [1, 2, 3]

Honda Fit Model 2013 Lower Control Arm

KSh4,000.00
OEM / Reference Part Numbers
  • Front Left Side (LHS): 51360-TF0-030 / 51360-TK6-A01 / 51360-TF5-A00
  • Front Right Side (RHS): 51350-TF0-030 / 51350-TK6-A01 / 51350-TF5-A00
Dimensional Specifications
  • Ball Joint Cone Size / Pivot Diameter: Ø 17.5 mm
  • Ball Pin / Joint External Thread Size: M14 x 1.5
  • Subframe Flange Mounting Bolt Sizing: 17 mm and 19 mm hex flange bolts
Material & Component Properties
  • Structural Material: Heavy-duty stamped sheet steel / structural metal matrix.
  • Pre-assembled Bushings: Features a large, rearward horizontal hydraulic/rubber cylindrical compliance damper ("hockey puck" style bushing) paired with a forward horizontal inner sleeve bushing to isolate NVH (Noise, Vibration, and Harshness).
  • Ball Joint Assembly: Integrated pre-greased, sealed heavy-duty lower ball joint with a protective rubber dust boot.
  • Surface Coating: High-durability black anti-corrosion electro-deposition paint (E-coating).
  • Net Unit Weight: ~3.3 kg (7.27 lbs) per side.

Honda Fit Model 2012 Lower Control Arm

KSh4,000.00
OEM / Reference Part Numbers
  • Front Left Side (LHS): 51360-TF0-030 / 51360-TK6-A01 / 51360-TF5-A00
  • Front Right Side (RHS): 51350-TF0-030 / 51350-TK6-A01 / 51350-TF5-A00
Dimensional Specifications
  • Ball Joint Cone Size / Pivot Diameter: Ø 17.5 mm
  • Ball Pin / Joint External Thread Size: M14 x 1.5
  • Subframe Flange Mounting Bolt Sizing: 17 mm and 19 mm hex flange bolts
Material & Component Properties
  • Structural Material: Heavy-duty stamped sheet steel / structural metal matrix.
  • Pre-assembled Bushings: Features a large, rearward horizontal hydraulic/rubber cylindrical compliance damper ("hockey puck" style bushing) paired with a forward horizontal inner sleeve bushing to isolate NVH (Noise, Vibration, and Harshness).
  • Ball Joint Assembly: Integrated pre-greased, sealed heavy-duty lower ball joint with a protective rubber dust boot.
  • Surface Coating: High-durability black anti-corrosion electro-deposition paint (E-coating).
  • Net Unit Weight: ~3.3 kg (7.27 lbs) per side.

Honda Fit Model 2011 Lower Control Arm

KSh4,000.00
OEM / Reference Part Numbers
  • Front Left Side (LHS): 51360-TF0-030 / 51360-TK6-A01 / 51360-TF5-A00
  • Front Right Side (RHS): 51350-TF0-030 / 51350-TK6-A01 / 51350-TF5-A00
Dimensional Specifications
  • Ball Joint Cone Size / Pivot Diameter: Ø 17.5 mm
  • Ball Pin / Joint External Thread Size: M14 x 1.5
  • Subframe Flange Mounting Bolt Sizing: 17 mm and 19 mm hex flange bolts
Material & Component Properties
  • Structural Material: Heavy-duty stamped sheet steel / structural metal matrix.
  • Pre-assembled Bushings: Features a large, rearward horizontal hydraulic/rubber cylindrical compliance damper ("hockey puck" style bushing) paired with a forward horizontal inner sleeve bushing to isolate NVH (Noise, Vibration, and Harshness).
  • Ball Joint Assembly: Integrated pre-greased, sealed heavy-duty lower ball joint with a protective rubber dust boot.
  • Surface Coating: High-durability black anti-corrosion electro-deposition paint (E-coating).
  • Net Unit Weight: ~3.3 kg (7.27 lbs) per side.

Honda Fit Model 2010 Lower Control Arm

KSh4,000.00
OEM / Reference Part Numbers
  • Front Left Side (LHS / Driver Side): 51360-TF0-030 / 51360-TK6-A01 / 51360-TF5-A00
  • Front Right Side (RHS / Passenger Side): 51350-TF0-030 / 51350-TK6-A01 / 51350-TF5-A00 [1, 2, 3, 4]
Dimensional Specifications
  • Ball Joint Cone Size: Ø 17.5 mm
  • Ball Pin / Joint External Thread: M14 x 1.5
  • Subframe Flange Mounting Bolt Sizing: 17 mm and 19 mm hex flange bolts [1, 2]
Material & Component Properties
  • Structural Material: Heavy-duty stamped sheet steel / structural metal matrix.
  • Pre-assembled Bushings: Features a large, rearward horizontal hydraulic/rubber cylindrical damper ("hockey puck" style bushing) paired with a forward horizontal inner sleeve bushing to isolate NVH (Noise, Vibration, and Harshness).
  • Ball Joint Assembly: Integrated pre-greased, sealed heavy-duty lower ball joint with a protective rubber dust boot.
  • Surface Coating: High-durability black anti-corrosion electro-deposition paint (E-coating).
  • Net Unit Weight: ~3.3 kg (7.27 lbs) per side.[1, 2, 3, 4, 5]

Honda Fit Model 2012 Gearbox Mountain

KSh3,500.00
1. Component Breakdown & OEM Part Numbers
The 2012 Honda Fit utilizes a multi-point engine and transmission isolation configuration:
  • Left-Hand Gearbox Mount (Transmission Main Insulator):
    • Automatic / CVT Transmission (GE6 / GE8 standard): 50850-TF0-981 (or 50850-TF0-J81)
    • Manual Transmission: 50850-TF0-G01
    • Function: Primary weight-bearing insulator for the transmission housing. Connects the gearbox directly to the left frame rail.
  • Transmission Rear Torque Strut Mount (Lower Dog-Bone Mount):
    • Part Number: 50890-TF0-911 (or 50890-TF0-981)
    • Function: Controls the back-and-forth structural "pitching" and rotational torque twist of the transmission assembly under acceleration and deceleration.
2. Vehicle Structural Fitment
  • Engine & Gearbox Orientation: Transverse (East-West installation)
  • Chassis & Drivetrain Compatibility:
    • GE6: 1.3L L13A I4 Petrol engine, paired with CVT or 5-speed Automatic
    • GE8: 1.5L L15A I4 Petrol engine, paired with 5-speed Manual, 5-speed Automatic, or CVT
    • GP1: 1.3L LDA I4 Hybrid (Fit Hybrid), paired with CVT
3. Material Specifications
  • Composition: Premium vulcanized natural rubber formulation bonded directly to stamped carbon steel casing brackets.
  • Design Type: Fluid-filled hydraulic design (hydro-mount) for the main left-hand transmission insulator to absorb severe high-frequency CVT/Automatic harmonic vibrations; solid rubber bushing for the lower rear torque rod.

Honda N Wagn Front Shocks

KSh5,000.00
Strut Architecture & Design
  • Suspension Type: Independent MacPherson strut suspension.
  • Dampening System: Hydraulic twin-tube, low-pressure nitrogen gas-charged strut assembly.
  • Mounting Configuration:
    • Top Mount: 3-bolt upper strut mount plate with an integrated rubber isolation spring seat and strut bearing.
    • Bottom Mount: Rigid 2-bolt clamp bracket welded to the outer shell casing, clamping directly onto the front steering knuckle.
  • Integrated Hardware: Features a welded bracket for the stabilizer link (sway bar end-link) and a mounting clip for the brake hose line.
Dimensional Specifications (660cc S07A / S07B Key Car Chassis)
  • Extended Length: 455 mm to 468 mm (varies marginally between 2WD JH1/JH3 and 4WD JH2/JH4 ride height setups).
  • Collapsed Length: 315 mm to 325 mm.
  • Total Piston Stroke: 140 mm to 143 mm.
  • Piston Rod Diameter: 18.0 mm (high-tensile chrome-plated steel).
  • Outer Cylinder Casing Diameter: 45.0 mm.
Fastener & Torque Specifications
  • Upper Strut Center Piston Rod Nut: 44 Nm (approx. 33 ft-lbs).
  • Upper Strut Mount Base Flange Nuts (To Chassis Body): 34 Nm (approx. 25 ft-lbs).
  • Lower Strut-to-Knuckle Pinch Bolts (M12): 78 Nm to 85 Nm (approx. 58–63 ft-lbs).
  • Stabilizer / Sway Bar Link Nut (To Strut Bracket): 39 Nm (approx. 29 ft-lbs).
  • Front Wheel Lug Nuts (Road Wheel to Hub): 103 Nm (approx. 76 ft-lbs).
Component Mass
  • Average Unit Mass (Dry Strut Assembly): ~3.8 kg to 4.2 kg per side (excluding the coil spring).

Honda Odyssey Rear Shocks Absorbers

KSh8,500.00
Shock Absorber Architecture & Design
  • Suspension Type: Independent multi-link rear suspension or trailing-arm setup (depending on generation).
  • Dampening System: Low-pressure, nitrogen gas-charged twin-tube or mono-tube hydraulic shock absorber.
  • Mounting Configuration:
    • Top Mount: Two-bolt top mounting flange bracket or traditional stem/pin setup passing through the rear chassis tower body.
    • Bottom Mount: Clevis/fork bracket or heavy-duty eyelet sleeve mounted directly to the lower control arm or rear knuckle trailing bracket.
  • Aspiration/Adjustability: Deployed as passive variable dampening units (amplitude reactive dampers) or multi-valve configurations.
Dimensional Specifications (Standard J-Series V6 Generations - RL5/RL6)
  • Extended Length (Mount Center to Center): 520 mm to 545 mm (varying slightly by model year trim levels).
  • Collapsed Length: 345 mm to 365 mm.
  • Total Piston Stroke: 175 mm to 180 mm.
  • Piston Rod Diameter: 14.0 mm to 16.0 mm (high-strength induction hardened steel).
  • Outer Shell Tube Diameter: 45.0 mm to 51.0 mm.
  • Lower Mount Inner Bushing Diameter: 12.2 mm / 14.1 mm (designed for M12/M14 heavy-load shoulder bolts).
Fastener & Torque Specifications
  • Upper Shock Absorber Flange Mounting Bolts (To Body): 59 Nm (approx. 44 ft-lbs).
  • Upper Shock Pin/Stem Locknut (Where Applicable): 29 Nm (approx. 22 ft-lbs).
  • Lower Shock Absorber Mounting Bolt (To Lower Arm): 88 Nm to 98 Nm (approx. 65–72 ft-lbs) — Must be fully tightened only when the vehicle suspension is under full normal load (resting on the ground).
  • Rear Wheel Lug Nuts (Road Wheel to Hub): 108 Nm (approx. 80 ft-lbs).
Component Mass
  • Average Unit Mass (Dry): ~2.4 kg to 2.9 kg per shock absorber unit.

Honda Fit 2012 Engine Mountain

KSh4,000.00
Engine Mount System Layout
  • Total Number of Mounts: 3 structural mounting assemblies [1, 2]
  • Mounting Positions & Configuration:
    • Front / Right-Hand Mount: A heavy-duty, fluid-filled hydraulic isolation mount (hydro-mount) attached to the engine block side. It bears vertical load and dampens mid-to-high frequency block frequencies.
    • Left-Hand Transmission Mount: A solid rubber-metal isolation assembly supporting the gearbox casing to the structural framing.
    • Rear Lower Torque Strut Mount: Known as the "torque rod" or "dog-bone" link. It connects the transmission housing directly back into the front crossmember/subframe to absorb front-to-rear rotational energy during acceleration and engine braking. [1, 2, 3, 4, 5]
  • Isolation Material: Vulcanized synthetic elastomer combined with glycol fluid dampening internals (on the primary side mount). [1]
Engine Mount Fastener Torque Specifications
  • Front Right-Hand Mount (Side Bracket to Block Bolts): 54 Nm (40 ft-lbs)
  • Front Right-Hand Mount (Through-Bolt to Body): 64 Nm (47 ft-lbs)
  • Left-Hand Gearbox Side Mount Through-Bolt: 54 Nm (40 ft-lbs)
  • Rear Lower Torque Strut Mount Horizontal Bolt (To Frame): 83 Nm (approx. 61 ft-lbs)
  • Rear Lower Torque Strut Mount Vertical Bolt (To Bracket): 93 Nm (approx. 68 ft-lbs) [1, 2]
Core Engine Specs (GE6 / GE8 Chassis Variations)
The 2012 model year globally features two primary variants of the Honda L-Series engine family: [1, 2]
Engineering Parameter 1.3L Variant (L13A Engine) 1.5L Variant (L15A Engine)
Engine Code L13A L15A (L15A7 i-VTEC)
Configuration Inline 4-Cylinder, 4-Stroke Inline 4-Cylinder, 4-Stroke
Valvetrain 16-Valve SOHC i-VTEC 16-Valve SOHC i-VTEC
Timing Drive Chain-driven Chain-driven
Displacement 1,339 cc 1,497 cc
Bore x Stroke 73.0 mm × 80.0 mm 73.0 mm × 89.4 mm
Compression Ratio 10.5:1 10.4:1
Maximum Power 100 PS (73 kW / 99 HP) @ 6,000 rpm 117–120 HP (88 kW) @ 6,600 rpm
Maximum Torque 127 Nm @ 4,800 rpm 145 Nm (106 lb-ft) @ 4,800 rpm
Fuel System PGM-FI Multi-Point Injection PGM-FI Multi-Point Injection
Fluid & Service Specs
  • Engine Oil Total Capacity: 3.6 Liters (Refill capacity with filter change) [1]
  • Factory Recommended Grade: API Premium 0W-20 or 5W-30 synthetic oil [1]
  • Valve Clearances (Cold Engines):
    • Intake: 0.15 mm – 0.19 mm
    • Exhaust: 0.26 mm – 0.30 mm [1]
  • Spark Plug Gaps: 1.0 mm – 1.1 mm

Honda Fit Engine Mount

KSh3,500.00
1. Honda Fit 3rd Generation (GK3 / GK5 Chassis: 2014–2020)
This generation utilizes a refined torque-rod setup to stabilize engine pitch under rapid acceleration and braking.
  • Right Side Mount (Engine / Timing Chain Side):
    • Design Architecture: Hydraulic / Liquid-Filled Mount with integrated aluminum frame housing.
    • Genuine OEM Part Numbers: 50822-T5R-A01, 50822-T5A-J01
    • Aftermarket Cross-References: Febest (HM-GKRH)
  • Left Side Mount (Transmission / Gearbox Side):
    • Design Architecture: Solid vulcanized natural rubber isolator bracket.
    • Genuine OEM Part Numbers: 50850-T5R-A01, 50850-T5A-911 (CVT specific variants)
    • Aftermarket Cross-References: Febest (HM-GKLH)
  • Rear Lower Mount (Torque Strut / Dog Bone):
    • Design Architecture: Hard rubber dual-bushing anti-torque link rod. Controls backward and forward engine block roll.
    • Genuine OEM Part Numbers: 50890-T5A-911, 50890-T5R-A01
    • Aftermarket Cross-References: Febest (HM-GKR)

2. Honda Fit 2nd Generation (GE6 / GE8 Chassis: 2008–2013)
One of the most common configurations in the market, relying heavily on a large fluid-filled upper right mount.
  • Right Side Mount (Engine / Timing Chain Side):
    • Design Architecture: Premium Hydraulic (Liquid-Filled) core inside a cast-iron/aluminum retaining collar.
    • Genuine OEM Part Numbers: 50822-TF0-J02, 50822-TG0-T02, 50822-TF0-305
    • Aftermarket Cross-References: RBI (O10208RE), Febest (HM-GERH)
  • Left Side Mount (Transmission Upper Mount):
    • Design Architecture: Solid natural rubber dampening cushion bracket assembly.
    • Genuine OEM Part Numbers: 50850-TF0-981, 50850-TF0-J11
    • Aftermarket Cross-References: RBI (O10408LH), Febest (HM-GELH)
  • Rear Lower Mount (Transmission Rear Rod):
    • Design Architecture: Structural rubber damper sleeve link.
    • Genuine OEM Part Numbers: 50890-TF0-911, 50890-TF0-981
    • Aftermarket Cross-References: RBI (O10508R), Febest (HM-GER)

Material & Metallurgical Composition (All Generations)
  • Rubber Polymer Matrix: High-tensile Natural Rubber (NR) blend calibrated to 60–65 Shore A durometer hardness to resist tearing under high shear torque.
  • Hydraulic Fluid Core: Internal chambers packed with low-viscosity glycol-based fluid designed to absorb low-frequency engine resonance at idle speeds.
  • Structural Brackets: Finished with an anti-corrosion black powder coat or zinc-galvanized plating to shield structural steel plates from humidity and rust.

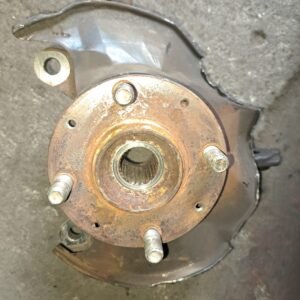

Honda fit, Honda insight, Honda fit shuttle Wheel Hub Bearing

KSh5,000.00
Front Wheel Bearing Specifications (Press-In Sealed Type)
The front axle uses a Generation 1 sealed double-row angular contact ball bearing that must be pressed into the front steering knuckle assembly. [1, 2]
    • Inner Diameter (ID): 43 mm
    • Outer Diameter (OD): 79 mm
    • Inner Ring Width: 41 mm
    • Outer Ring Width: 38 mm
    • ABS Integration: Features an integrated 96-magnetic-pole ABS encoder ring built directly into one side of the inner oil seal face (the bearing must be pressed in with this magnetic side facing inward toward the sensor).
    • Honda Factory Genuine OEM Part Numbers: 44300-TF0-951, 44300-SCC-003, 44300-SEY-008, 44300-T5A-951.
    • Major Aftermarket Cross-References: NSK 43BWD14, Febest DAC43793841M, SKF FW36. [1, 2, 3, 4, 5]
Rear Wheel Hub Bearing Unit Specifications (2WD Models)
For standard Front-Wheel Drive (2WD) models, the rear bearing is built into a non-serviceable, sealed Generation 3 complete modular bolt-on hub assembly that slides over a spindle stub axle and is secured by a single central axle nut. [1, 2]
    • Wheel Stud Quantity: 4 Studs
    • Pitch Circle Diameter (PCD / Lug Bolt Pattern): 4 x 100 mm
    • Flange Outer Diameter: 151.8 mm
    • Brake Pilot / Center Bore Diameter: 56.1 mm
    • Wheel Pilot Diameter: 51.0 mm
    • ABS Integration: Includes a pre-assembled, internal multi-pole magnetic ABS tone wheel tracking layout integrated on the spindle-facing side.
    • Honda Factory Genuine OEM Part Numbers: 42200-TF0-Z51, 42200-TF6-951, 42200-TG0-T51.
    • Major Aftermarket Cross-References: PFI PHU2323, Industry Standard Ref 512323. [1, 2, 3, 4, 5, 6]
Material Composition & Structural Tolerances
  • Steel Grade: Precision-hardened GCr15 High-Carbon Chromium Bearing Steel used across inner/outer structural tracks and internal rolling elements for high heat dissipation and fatigue resistance.
  • Flange Hardness: 55# structural forged medium-carbon steel base casing to withstand extreme cornering shear loads.
  • Lubrication: Pre-packed, life-lubricated high-performance polyurea synthetic grease optimized for operating ranges from -20°C to 120°C.

Honda Fit Sterbizer Links

KSh3,000.00
1st Generation: GD Chassis (2001–2008) Specs
  • Center-to-Center Stud Length: 299 mm – 300 mm (Standard 2WD) / 320 mm (4WD GD variants).
  • Total Structural Length: 325 mm (Standard 2WD) / 347 mm (4WD).
  • Thread Pitch Metric: M10 x 1.25 mm (Dual-end ball joints).
  • Joint Angular Joint Rotation: 112°.
  • OEM Reference Numbers: 51320-SAA-003 (Right Front), 51321-SAA-003 (Left Front).
  • Popular Aftermarket Alternative Cross-References: 555 Sankei SL-6340R, CTR CL0203. [1, 2, 3, 4, 5]
2nd Generation: GE Chassis / GP1 Hybrid (2009–2014) Specs
  • Center-to-Center Stud Length: 324.5 mm – 331 mm. [1, 2, 3]
  • Thread Pitch Metric: M10 x 1.25 mm or M10 x 1.5 mm depending on the specific assembly market. [1, 2]
  • Factory Structural Hardware Torque Specs:
    • Top Ball Stud Nut: 30 Nm (22 ft-lbs).
    • Bottom Ball Stud Nut: 38 Nm (28 ft-lbs). [1]
  • OEM Reference Numbers: 51320-TF0-003, 51321-TF0-003. [1, 2]
  • Popular Aftermarket Alternative Cross-References: 555 Sankei SL-H110, KYB KSLF4370. [1, 2]
3rd Generation: GK Chassis (2015–2020) Specs
  • Center-to-Center Stud Length: 349.25 mm (13.75 inches).
  • Thread Pitch Metric: M10 x 1.25 mm.
  • OEM Reference Numbers: 51320-T5A-003 (Right Front), 51325-T5A-003 (Left Front).
  • Popular Aftermarket Alternative Cross-References: Premium A-Premium MS608137, Moog K750838. [1, 2]
Core Material & Mechanism Specs
  • Link Rod Rod Composition: Heavy-duty carbon structural steel rods with an anti-corrosion zinc or phosphate surface plating finish. [1]
  • Ball Joint Internal Architecture: Highly polished carbon steel ball studs seated within structural self-lubricating polyoxymethylene (POM) inner sockets. [1]
  • Sealing Boot Mechanism: Heavy-duty, ozone-resistant chloroprene rubber dust covers sealed with steel retaining rings to entrap synthetic lithium grease.[1, 2]

Honda N-WGN Shock Absorbers

Original price was: KSh5,500.00.Current price is: KSh4,500.00.

Upgrade your vehicle's ride quality and stability with these high-performance Shock Absorbers for the Honda N-WGN. Sourced as premium Ex-Japan parts, they are engineered to provide superior damping and comfort, ensuring your "Kei car" remains smooth and easy to handle on all road surfaces.

PRICE: KSh 4,500

COMPATIBILITY: Precision-engineered for the Honda N-WGN series (JH1 and JH2 models).

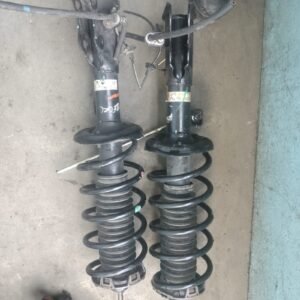

Honda Vezel Shock Absorbers

Original price was: KSh15,000.00.Current price is: KSh12,000.00.
Genuine Honda Vezel Shocks for KSh 12,000. Grade A Ex-Japan quality for a quiet, stable, and luxury SUV ride.
  • Price: KSh 12,000

  • Condition: Ex-Japan Grade A (Certified low-mileage, high-pressure tested)

  • Personality: The "Urban Sophisticate." Precision-tuned for a smooth, executive SUV experience.

  • Compatibility: Premium Grade A Ex-Japan suspension struts.Fits Honda Vezel / HR-V (RU1, RU2, RU3, RU4) models (2013–2021), including Hybrid and non-Hybrid variants

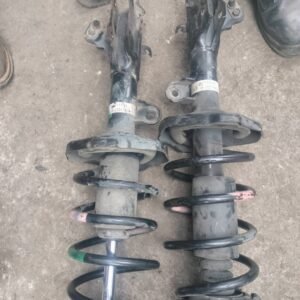

Honda Stepwgn Shock Absorbers

Original price was: KSh12,000.00.Current price is: KSh10,000.00.
Genuine Honda Stepwgn Shocks for KSh 10,000. Grade A Ex-Japan quality for a smooth, silent VIP ride and superior minivan stability.
  • Price: KSh 10,000

  • Condition: Ex-Japan Grade A (Certified high-pressure, low-usage units)

  • Personality: The "VIP Lounge Support." Designed for ultra-smooth, silent, and stable family travel.

  •  Compatibility: Grade A Ex-Japan suspension struts, Optimized for Honda Stepwgn (RP1, RP2, RP3, RP4, RP5) models (2015–2022) and fits many RK series models.

Honda CRV RM1 Rear Shock Absorbers (2016)

Original price was: KSh12,000.00.Current price is: KSh10,000.00.
Restore your 2016 Honda CRV RM1 ride with Grade A Ex-Japan Rear Shocks. KSh 10k for genuine SUV comfort.
  • Price: KSh 10,000

  • Condition: Ex-Japan Grade A

  • Personality: The "Master of Composure." Balances SUV toughness with luxury comfort.

  • Compatibility: Premium Rear Shock Absorbers. Compatibility: Fits 2012–2017 Honda CR-V (RM1/RM3/RM4) models.

2015 Honda CRV Rear Shock Absorbers

Original price was: KSh13,000.00.Current price is: KSh10,000.00.
Restore the premium SUV ride to your 2015 Honda CRV. These Grade A rear shocks are built to handle both city highways and weekend off-road adventures with ease.
  • Price: KSh 10,000

  • Condition: Ex-Japan Grade A

  • Personality: The "Stability Specialist." Smooth, strong, and silent.

  • Performance: Optimized for the 2015 CRV’s Real-Time AWD system. These shocks feature a sophisticated multi-link dampening system that isolates cabin noise while providing firm support for the SUV's rear chassis.

Honda Airwave Steering Rack

Original price was: KSh19,000.00.Current price is: KSh15,000.00.
Quality Ex-Japan Grade A steering rack for Honda Airwave delivering smooth and accurate steering performance.

Price: 15,000

 Compatibility: Honda Airwave (2005–2010),Honda Fit (certain compatible models)

Performance: Precise steering control,Smooth turning response

Honda Airwave Lower Control Arms

Original price was: KSh6,000.00.Current price is: KSh4,500.00.
Durable Ex-Japan Grade A lower control arms for Honda Airwave providing stable suspension support and smooth ride quality.

Price: 4,500

Compatibility: Honda Airwave (2005–2010),Compatible with Honda Fit Aria (select models)

 Performance: Improved suspension stability,Better wheel alignment

Honda Fit Rear Shocks

Original price was: KSh5,000.00.Current price is: KSh2,500.00.
Upgrade your ride with Honda Fit Rear Shocks (Ex Japan Grade A) for just 2,500. Imported directly from Japan, these shocks deliver superior stability, smooth handling, and long-lasting durability. Perfect fit and high performance guaranteed. Condition: Ex Japan – Grade A (Clean, low wear, excellent performance)
Price: 2,500
Compatibility: Honda Fit (multiple generations – confirm chassis before purchase)

Honda Fits Gp5 Steerin Rack, Model 2015

Original price was: KSh24,000.00.Current price is: KSh18,000.00.
  • Part: Electric Steering Rack & Pinion Assembly.

  • Condition: Grade A Ex-Japan (Foreign Used).

  • Compatibility: Honda Fit GP5 (Hybrid) and GK3 (Petrol) models 2013–2020.

  • Key Benefit: Eliminates "knocking" sounds and steering wheel stiffness; restores smooth EPS response.

  • Price: KSh 18,000.

Honda Airwave Lower Control Arms

Original price was: KSh5,500.00.Current price is: KSh4,500.00.
  • Condition (Ex-Japan): These are genuine Honda parts salvaged from vehicles in Japan. They are preferred over local "new" generics because they retain the original factory metal strength and high-quality rubber bushings.

  • Compatibility: Specifically designed for the Honda Airwave (2005–2010), chassis codes GJ1 (2WD) and GJ2 (4WD). It also shares suspension architecture with the Honda Fit/Jazz (GD1-GD4), making parts widely available.

  • Performance: Restores steering precision, eliminates "clunking" noises over bumps, and ensures proper wheel alignment to prevent uneven tire wear.

  • Price: KSh 4,500

Showing 28 of 53 results
Please select your product
Product has been added to your cart
Compare (0)
