Nissan Note Model E12 Lower Arm Control
KSh4,000.00 Buy Via Whatsapp- Suspension Type: MacPherson strut front independent suspension lower track control arm.
- Control Arm Material: Stamped sheet steel (welded assembly configuration).
- Component Weight: Approximately 2.49 kg per side (complete assembly including ball joint and bushings).
- Total Component Length: 338 mm.
- Ball Joint Cone Pin Size: 16 mm diameter.
- Bushing Design: Horizontal front rubber pivot mounting bush and an upright rear cylindrical rubber dampening mount.
- Assembly Inclusions: Pre-installed non-adjustable press-fit outer ball joint and vulcanized rubber mounting bushings. [1, 2, 3, 4]
- Front Right Hand (RH) Lower Arm:
54500-1HM0B,54500-1HA0C,54500-1HA5A,54500-1HA5D,54500-1HA6A - Front Left Hand (LH) Lower Arm:
54501-1HM0B,54501-1HA0C,54501-1HA5A,54501-1HA5D,54501-1HA6A - Chassis/Model Codes: E12 Series (2012–2020)
- Engine Compatibility: HR12DE, HR12DDR, HR15DE, HR16DE
Mitsubishi EK Lower Control Arms
KSh4,500.00 Buy Via Whatsapp- 3rd Generation OEM Left (Driver Side): 4013A639, 4013A495 (B11W / B11A Chassis)
- 3rd Generation OEM Right (Passenger Side): 4013A640, 4013A496 (B11W / B11A Chassis)
- 2nd Generation OEM Reference: MR554647 (H82W / H81W Chassis)
- Aftermarket Substitutes: SKF 4013A495-B (Heavy-duty bush application)
- Component Assembly: Pre-assembled, triangular L-shaped unit integrating a small front horizontal pivot bushing, a large rear vertical compliance bushing, and a fixed, non-serviceable ball joint mechanism.
- Body Material: High-Tensile Stamped Sheet Metal / Heavy-Gauge Pressed Steel
- Coating: Corrosion-resistant black electro-deposition coating (ED-coat)
- Ball Joint Connection: Tapered pin profile built for a cross-axis transverse pinch bolt locking method inside the wheel knuckle base.
- Front Pivot Bolt (Horizontal-to-Subframe): 74 to 85 ft-lbs (100 to 115 N·m)
- Rear Compliance Bushing Bolt (Vertical-to-Subframe): 81 to 96 ft-lbs (110 to 130 N·m)
- Lower Ball Joint Pinch Bolt to Steering Knuckle: 41 to 46 ft-lbs (55 to 62 N·m)
- Anti-Roll / Stabilizer Bar End Link to Lower Arm Nut: 26 ft-lbs (35 N·m)
- Front Wheel Lug Nuts: 76 ft-lbs (103 N·m)
Nissan Dayz Lower Control Arm
KSh4,000.00 Buy Via Whatsapp- 1st Generation OEM Right (Passenger Side): 54504-6A00E, 54504-6A00G (B21W / B21A Roox)
- 1st Generation OEM Left (Driver Side): 54505-6A00J (B21W)
- 2nd Generation OEM Right/Left Reference: 54501-7MA0B (B43W, B44W, B45W, B47W chassis architecture)
- Component Assembly: Comprises a pre-pressed horizontal front pivot bushing, a larger vertical rear compliance bushing, and a factory-integrated, non-serviceable outboard lower ball joint.
- Material Base: Stamped / Pressed High-Tensile Sheet Steel
- Surface Finish: Anti-corrosive black electro-deposition coating (ED-paint)
- Joint Configurations: Tapered ball joint pin designed specifically for a cross-axis horizontal pinch-bolt fitting at the steering knuckle throat base.
- Front Pivot Bolt (Horizontal to Subframe): 74 to 85 ft-lbs (100 to 115 N·m)
- Rear Compliance Bushing Bolt (Vertical to Subframe): 81 to 96 ft-lbs (110 to 130 N·m)
- Lower Ball Joint Pinch Bolt to Steering Knuckle: 41 to 46 ft-lbs (55 to 62 N·m)
- Stabilizer Bar End Link to Control Arm Base Nut: 26 ft-lbs (35 N·m)
- Front Wheel Lug Nuts: 76 ft-lbs (103 N·m)
Mazda CX3 Lower Control Arms
KSh6,000.00 Buy Via Whatsapp-
- OEM Right (Passenger Side) Part Number: D10E-34-300 (2015–2018) / D24H-34-300C (2018–2021) [1, 2]
- OEM Left (Driver Side) Part Number: D10E-34-350 (2015–2018) / D24H-34-350C (2018–2021) [1, 2, 3]
- Design Type: Triangular A-Arm / L-Shaped Lower Suspension Arm
- Component Assembly: One-piece stamped high-tensile steel frame with pre-pressed inner horizontal pivot rubber bushing, an outer rear compliance vertical bushing, and a non-serviceable factory-integrated lower ball joint. [1, 2]
- Drivetrain Compatibility: Direct replacement fitment for both Front-Wheel Drive (FWD) and All-Wheel Drive (AWD) variants across 1.5L TD, 1.8L TD, and 2.0L SkyActiv-G engines. [1, 2]
-
- Material Treatment: Electro-deposition (ED) coating/painting for anti-corrosion resistance
- Average Shipping Weight: ~3.65 kg (8.05 lbs) per side
- Ball Joint Stud Profile: Tapered pin, designed for a cross-axis pinch bolt fixing mechanism on the steering knuckle housing. [1]
-
- Front (Horizontal Pivot) Bushing Bolt to Subframe: 97 to 116 N·m (72 to 85 ft-lbs)
- Rear (Vertical Compliance Bushing) Retaining Bracket Bolts: 130 to 154 N·m (96 to 113 ft-lbs)
- Lower Ball Joint Pinch Bolt to Steering Knuckle: 44 to 53 N·m (33 to 39 ft-lbs)
- Front Anti-Roll / Stabilizer Bar End Link to Lower Arm Nut: 44 to 53 N·m (33 to 39 ft-lbs)

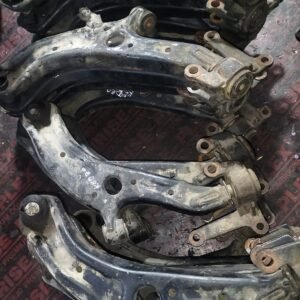

Honda Airwave Lower Arm Control
KSh4,000.00 Buy Via Whatsapp- OEM Right (Passenger Side) Part Number: 51350-SLA-023, 51350-SLA-033
- OEM Left (Driver Side) Part Number: 51360-SLA-023, 51360-SLA-J04
- Design Type: Triangular L-shaped A-arm
- Component Assembly: Rigid steel body with a pre-installed horizontal pivot bushing (front), a vertical compliance bushing (rear), and an integrated non-serviceable lower ball joint. [1, 2, 3, 4]
- Material: Pressed Steel
- Length: 480 mm
- Width: 400 mm
- Height: 87 mm
- Average Weight: ~4.51 kg (9.9 lbs) [1]
- Front (Horizontal) Control Arm-to-Subframe Bolt: 40 ft-lbs (54 Nm)
- Rear (Vertical) Compliance Bushing-to-Subframe Bolt: 61 ft-lbs (83 Nm)
- Lower Ball Joint Castle Nut to Steering Knuckle: 36 to 43 ft-lbs (49 to 59 Nm) (Note: Tighten further within this range only to align the castle nut slot with the ball joint cotter pin hole).
- Stabilizer / Sway Bar End Link to Lower Arm Nut: 22 ft-lbs (30 Nm)
Mitsubishi Colt Lower Arms Control
KSh4,000.00 Buy Via Whatsapp- OEM Left (Driver Side) Part Number: MN101373 (Varies slightly by engine variant)
- OEM Right (Passenger Side) Part Number: MN101374
- Design Type: Triangular A-Arm for independent MacPherson strut front suspension.
- Component Assembly: Sheet metal or hardened steel construction featuring a pre-installed inner horizontal pivot bushing, an outer rear vertical compliance bushing, and an integrated lower ball joint. [1, 2, 3, 4]
- Material Type: Pressed Sheet Metal / Hardened Steel
- Component Mass: ~3.78 kg (8.32 lbs)
- Ball Joint Cone Size: Ø 15 mm
- Ball Joint Pin Thread: M12 x 1.5
- Ball Joint Starting Torque: 0 to 3.9 N·m (0 to 2.9 ft-lbs) [1, 2, 3]
- Rear (Vertical) Control Arm-to-Subframe Fastener: 145 N·m (107 ft-lbs)
- Front (Horizontal) Control Arm-to-Subframe Pivot Bolt: 115 N·m (85 ft-lbs)
- Lower Ball Joint Pinch Bolt to Steering Knuckle: 52 to 60 N·m (38 to 44 ft-lbs)
- Anti-Roll Bar / Stabilizer Link to Lower Arm Nut: 30 N·m (22 ft-lbs) [1, 2]
- Toe-In: 0 ± 2 mm (Toe angle: 0°00' ± 0°06')
- Camber: -0°30' ± 0°30'
- Caster: 2°35' ± 0°30'
- Kingpin Inclination: 13°20' ± 0°30'[1]
Honda Insight Model 2014 Lower Control Arm
KSh4,000.00 Buy Via Whatsapp- OEM Right (Passenger Side) Part Number: 51350-TM8-A01
- OEM Left (Driver Side) Part Number: 51360-TM8-A01
- Design Type: A-shape / Triangular lower suspension arm
- Component Assembly: Fully integrated unit containing the lower control arm body, compliance rubber bushings, and an integrated non-serviceable lower ball joint. [1, 2, 3, 4, 5]
- Material: Sheet Steel
- Length: 590 mm
- Width: 320 mm
- Height: 90 mm [1]
- Front (Horizontal) Control Arm-to-Subframe Bolt: 54 ft-lbs (73 Nm)
- Rear (Vertical) Compliance Bushing-to-Subframe Bolts: 51 ft-lbs (69 Nm)
- Ball Joint Castle Nut to Steering Knuckle: 40 to 47 ft-lbs (54 to 64 Nm) (Note: Tighten further if needed only to align the castle nut gaps with the ball joint hole to insert a new cotter pin).
- Control Arm Guard/Splash Plate Bolts: 16 ft-lbs (22 Nm)
Honda Insight Model 2013 Lower Control Arm
KSh4,000.00 Buy Via Whatsapp- Front Left Side (LHS): 51360-TK6-A01 / 51360-TF5-A00
- Front Right Side (RHS): 51350-TK6-A01 / 51350-TF5-A00
- Arm Segment Length: 357 mm
- Ball Joint Cone Size / Pivot Diameter: Ø 17.5 mm
- Ball Pin / Joint External Thread Size: M14 x 1.5 Right-Hand Thread (RHT)
- Subframe Mounting Alignment: Configured for standard factory 17 mm and 19 mm hex flange fasteners.
- Structural Material: High-tensile stamped sheet steel matrix engineered for strict vehicle weight reduction and crash safety energy absorption.
- Pre-assembled Bushings: Features a large, rearward horizontal rubber compliance damper ("hockey puck" style bushing) paired with a forward horizontal steel sleeve inner bushing to manage vehicle NVH (Noise, Vibration, and Harshness).
- Ball Joint Assembly: Integrated pre-greased, sealed heavy-duty lower ball joint with a high-flexibility protective rubber dust boot.
- Surface Coating: High-durability black anti-corrosion electro-deposition paint (E-coating) for maximum rust resistance.
- Net Unit Weight: ~3.24 kg (7.14 lbs) per bare side arm assembly.
Honda Insight Model 2012 Lower Control Arm
KSh4,000.00 Buy Via Whatsapp- Front Left Side (LHS): 51360-TK6-A01 / 51360-TF5-A00
- Front Right Side (RHS): 51350-TK6-A01 / 51350-TF5-A00
- Arm Segment Length: 357 mm
- Ball Joint Cone Size / Pivot Diameter: Ø 17.5 mm
- Ball Pin / Joint External Thread Size: M14 x 1.5 Right-Hand Thread (RHT)
- Subframe Mounting Alignment: Configured for standard factory 17 mm and 19 mm hex flange fasteners.
- Structural Material: High-tensile stamped sheet steel matrix engineered for strict vehicle weight reduction and crash safety energy absorption.
- Pre-assembled Bushings: Features a large, rearward horizontal rubber compliance damper ("hockey puck" style bushing) paired with a forward horizontal steel sleeve inner bushing to manage vehicle NVH (Noise, Vibration, and Harshness).
- Ball Joint Assembly: Integrated pre-greased, sealed heavy-duty lower ball joint with a high-flexibility protective rubber dust boot.
- Surface Coating: High-durability black anti-corrosion electro-deposition paint (E-coating) for maximum rust resistance.
- Net Unit Weight: ~3.24 kg (7.14 lbs) per bare side arm assembly.
Honda Insight Model 2011 Lower Control Arm
KSh4,000.00 Buy Via Whatsapp- Front Left Side (LHS): 51360-TK6-A01 / 51360-TF5-A00
- Front Right Side (RHS): 51350-TK6-A01 / 51350-TF5-A00 [1, 2, 3]
- Arm Segment Length: 357 mm (Note: Total packaged box profile length spans up to 590 mm)
- Ball Joint Cone Size / Pivot Diameter: Ø 17.5 mm
- Ball Pin / Joint External Thread Size: M14 x 1.5 Right-Hand Thread (RHT)
- Subframe Mounting Alignment: Configured for standard factory 17 mm and 19 mm hex flange fasteners. [1, 2]
- Structural Material: High-tensile stamped sheet steel matrix engineered for strict vehicle weight reduction and crash safety energy absorption. [1]
- Pre-assembled Bushings: Features a large, rearward horizontal rubber compliance damper ("hockey puck" style bushing) paired with a forward horizontal steel sleeve inner bushing to manage vehicle NVH (Noise, Vibration, and Harshness). [1]
- Ball Joint Assembly: Integrated pre-greased, sealed heavy-duty lower ball joint with a high-flexibility protective rubber dust boot. [1, 2]
- Surface Coating: High-durability black anti-corrosion electro-deposition paint (E-coating) for maximum rust resistance.
- Net Unit Weight: ~3.24 kg (7.14 lbs) per bare side arm assembly. [1]
Honda Insight Model 2010 Lower Control Arm
KSh4,000.00 Buy Via Whatsapp- Front Left Side (LHS): 51360-TK6-A01 / 51360-TF5-A00 / 51360-TG5-C01
- Front Right Side (RHS): 51350-TK6-A01 / 51350-TF5-A00 / 51350-TM8-A01 / 51350-TG5-C01 [1, 2, 3]
- Ball Joint Cone Size / Pivot Diameter: Ø 17.5 mm
- Ball Pin / Joint External Thread Size: M14 x 1.5
- Subframe Flange Mounting Bolt Compatibility: Matches 17 mm and 19 mm factory hex flange bolt configurations.
- Structural Material: Heavy-duty stamped sheet steel matrix engineered for optimized vehicle weight distribution and strength.
- Pre-assembled Bushings: Features a large, rearward horizontal rubber compliance damper ("hockey puck" style bushing) paired with a forward horizontal inner steel sleeve bushing to absorb road vibrations and isolate Cabin NVH (Noise, Vibration, and Harshness). [1, 2]
- Ball Joint Assembly: Integrated pre-greased, sealed heavy-duty lower ball joint with a high-flexibility protective rubber dust boot. [1]
- Surface Coating: High-durability black anti-corrosion electro-deposition paint (E-coating) for rust prevention.
- Net Unit Weight: ~3.3 kg to 4.7 kg per side (depending on whether it is a bare aftermarket steel variant or a complete factory assembly with bracket layout). [1, 2]
Honda Fit Model 2014 Lower Control Arm
KSh4,000.00 Buy Via Whatsapp- Third Generation (GK Series – GK5 Chassis, Late 2014+):
- Front Right Side (RHS): 51350-T5G-H01 / 51350-T5R-A00
- Front Left Side (LHS): 51360-T5G-H01 / 51360-T5R-A00 [1]
- Second Generation (GE Series – GE6 / GE8 / GP1, Early 2014 Production):
- Second Generation (GE Chassis):
- Ball Joint Cone Size / Pivot Diameter: Ø 17.5 mm
- Ball Pin / Joint External Thread Size: M14 x 1.5
- Net Unit Weight: ~3.3 kg (7.27 lbs) per side [1]
- Third Generation (GK Chassis):
- Ball Joint Cone Size: Ø 16 mm
- Ball Pin / Joint External Thread Size: M12 x 1.25
- Net Unit Weight: ~3.1 kg (6.83 lbs) per side
- Structural Material: Heavy-duty stamped sheet steel / structural metal matrix.
- Pre-assembled Bushings: Features a large, rearward horizontal compliance damper ("hockey puck" style rubber bushing) paired with a forward horizontal inner sleeve bushing to isolate NVH.
- Ball Joint Assembly: Integrated pre-greased, sealed heavy-duty lower ball joint with a protective rubber dust boot.
- Surface Coating: High-durability black anti-corrosion electro-deposition paint (E-coating) or powder finish. [1, 2, 3]
Honda Fit Model 2013 Lower Control Arm
KSh4,000.00 Buy Via Whatsapp- Front Left Side (LHS): 51360-TF0-030 / 51360-TK6-A01 / 51360-TF5-A00
- Front Right Side (RHS): 51350-TF0-030 / 51350-TK6-A01 / 51350-TF5-A00
- Ball Joint Cone Size / Pivot Diameter: Ø 17.5 mm
- Ball Pin / Joint External Thread Size: M14 x 1.5
- Subframe Flange Mounting Bolt Sizing: 17 mm and 19 mm hex flange bolts
- Structural Material: Heavy-duty stamped sheet steel / structural metal matrix.
- Pre-assembled Bushings: Features a large, rearward horizontal hydraulic/rubber cylindrical compliance damper ("hockey puck" style bushing) paired with a forward horizontal inner sleeve bushing to isolate NVH (Noise, Vibration, and Harshness).
- Ball Joint Assembly: Integrated pre-greased, sealed heavy-duty lower ball joint with a protective rubber dust boot.
- Surface Coating: High-durability black anti-corrosion electro-deposition paint (E-coating).
- Net Unit Weight: ~3.3 kg (7.27 lbs) per side.
Honda Fit Model 2012 Lower Control Arm
KSh4,000.00 Buy Via Whatsapp- Front Left Side (LHS): 51360-TF0-030 / 51360-TK6-A01 / 51360-TF5-A00
- Front Right Side (RHS): 51350-TF0-030 / 51350-TK6-A01 / 51350-TF5-A00
- Ball Joint Cone Size / Pivot Diameter: Ø 17.5 mm
- Ball Pin / Joint External Thread Size: M14 x 1.5
- Subframe Flange Mounting Bolt Sizing: 17 mm and 19 mm hex flange bolts
- Structural Material: Heavy-duty stamped sheet steel / structural metal matrix.
- Pre-assembled Bushings: Features a large, rearward horizontal hydraulic/rubber cylindrical compliance damper ("hockey puck" style bushing) paired with a forward horizontal inner sleeve bushing to isolate NVH (Noise, Vibration, and Harshness).
- Ball Joint Assembly: Integrated pre-greased, sealed heavy-duty lower ball joint with a protective rubber dust boot.
- Surface Coating: High-durability black anti-corrosion electro-deposition paint (E-coating).
- Net Unit Weight: ~3.3 kg (7.27 lbs) per side.
Honda Fit Model 2011 Lower Control Arm
KSh4,000.00 Buy Via Whatsapp- Front Left Side (LHS): 51360-TF0-030 / 51360-TK6-A01 / 51360-TF5-A00
- Front Right Side (RHS): 51350-TF0-030 / 51350-TK6-A01 / 51350-TF5-A00
- Ball Joint Cone Size / Pivot Diameter: Ø 17.5 mm
- Ball Pin / Joint External Thread Size: M14 x 1.5
- Subframe Flange Mounting Bolt Sizing: 17 mm and 19 mm hex flange bolts
- Structural Material: Heavy-duty stamped sheet steel / structural metal matrix.
- Pre-assembled Bushings: Features a large, rearward horizontal hydraulic/rubber cylindrical compliance damper ("hockey puck" style bushing) paired with a forward horizontal inner sleeve bushing to isolate NVH (Noise, Vibration, and Harshness).
- Ball Joint Assembly: Integrated pre-greased, sealed heavy-duty lower ball joint with a protective rubber dust boot.
- Surface Coating: High-durability black anti-corrosion electro-deposition paint (E-coating).
- Net Unit Weight: ~3.3 kg (7.27 lbs) per side.
Honda Fit Model 2010 Lower Control Arm
KSh4,000.00 Buy Via Whatsapp- Front Left Side (LHS / Driver Side): 51360-TF0-030 / 51360-TK6-A01 / 51360-TF5-A00
- Front Right Side (RHS / Passenger Side): 51350-TF0-030 / 51350-TK6-A01 / 51350-TF5-A00 [1, 2, 3, 4]
- Ball Joint Cone Size: Ø 17.5 mm
- Ball Pin / Joint External Thread: M14 x 1.5
- Subframe Flange Mounting Bolt Sizing: 17 mm and 19 mm hex flange bolts [1, 2]
- Structural Material: Heavy-duty stamped sheet steel / structural metal matrix.
- Pre-assembled Bushings: Features a large, rearward horizontal hydraulic/rubber cylindrical damper ("hockey puck" style bushing) paired with a forward horizontal inner sleeve bushing to isolate NVH (Noise, Vibration, and Harshness).
- Ball Joint Assembly: Integrated pre-greased, sealed heavy-duty lower ball joint with a protective rubber dust boot.
- Surface Coating: High-durability black anti-corrosion electro-deposition paint (E-coating).
- Net Unit Weight: ~3.3 kg (7.27 lbs) per side.[1, 2, 3, 4, 5]
Suzuki Alto Model 2016 Lower Control Arm
KSh5,000.00 Buy Via Whatsapp- Japan-market/HA36 Generation:
- Front Right Side (RHS): 45201-74P10 / 45201-74P00
- Front Left Side (LHS): 45202-74P10 [1]
- Export-market/GF Generation (1.0L K10B):
- Total Length: 281.2 mm (Note: Select international 1.0L variations feature an extended profile up to 460 mm)
- Overall Height: 81 mm
- Ball Pin / Joint External Thread: M12 x 1.25
- Fitted / Cone Stud Diameter: 13.5 mm to 15 mm
- Bushing Inner/Bore Diameter: 12 mm [1, 2, 3, 4]
- Structural Material: Heavy-duty stamped sheet steel (Premium aftermarket options utilize high-tensile forged steel).
- Pre-assembled Components: Integrated natural rubber silent-block bushings and pre-greased, sealed lower ball joint assembly.
- Surface Coating: Anti-corrosion electro-deposition paint (E-coating) or black powder coat finish.
- Average Weight: 1.05 kg – 1.15 kg per side. [1, 2]
Suzuki Alto Model 2017 Lower Control Arm
KSh5,000.00 Buy Via Whatsapp- Total Length: ~281.2 mm to 282 mm
- Overall Height: 81 mm
- Ball Pin / Joint External Thread: M12 x 1.25
- Cone / Ball Joint Stud Size: 13.4 mm to 15 mm
- Inner/Bore Diameter (Bushing Sleeve): 12 mm to 14 mm [1, 2, 3, 4]
- Structural Material: Heavy-duty stamped/sheet structural steel (select premium variants use forged steel).
- Component Assembly: Pre-installed premium natural rubber silent-block bushings and integrated lower ball joint mount.
- Coatings: Anti-corrosion electro-deposition paint (E-coating) or black oxide layer finish.
- Average Weight: 1.05 kg – 1.15 kg per side. [1, 2, 3, 4, 5]
Suzuki Alto Model 2018 Lower Control Arm
KSh5,000.00 Buy Via Whatsapp- Component Type: Front Suspension Lower Control Arm (A-Arm / Wishbone).
- Material Composition: Stamped high-strength sheet steel.
- Control Arm Type: Trailing link configuration with integrated ball joint and rubber silent-block bushings.
- Dimensional Profile:
- Center-to-Center Length: Approximately 281.2 mm.
- Overall Height: 81.0 mm.
- Ball Joint External Stud Thread: M12 x 1.25.
- Inner Bushing Sleeve Diameter: 12.0 mm. [1]
- Front Right Hand (RH) OEM Reference: 45201-74P10 (Alternative factory supersede: 45201-74P00).
- Front Left Hand (LH) OEM Reference: 45202-74P10 (Alternative factory supersede: 45202-74P00).
- Interchange Aftermarket ID: 273C0853 (Ridex). [1, 2, 3, 4]
- Chassis Platform / Generation: Suzuki HA36 Platform (8th Generation Alto).
- Applicable Model Codes: HA36S, HA36V (including standard JDM versions, Alto Works, and Alto Turbo RS).
- Cross-Brand Shared Footprint: Swaps its exact geometric layout and mounting pattern with the Suzuki Alto Lapin (HE33S), Suzuki Wagon R (MH35S/MH55S), Suzuki Hustler (MR52S), and Mazda Carol (HB36S). [1, 2]
- Inner Pivot/Frame Horizontal Bolt (Control arm front nut): 55 Nm to 70 Nm {41 to 52 ft-lbs}.
- Rear Vertical Bushing Clamp Mounting Nut: 70 Nm to 85 Nm {52 to 63 ft-lbs}.
- Ball Joint Pinch Bolt to Steering Knuckle: 45 Nm to 55 Nm {33 to 40 ft-lbs}.
- Stabilizer/Sway Bar Link to Control Arm Connecting Nut: 30 Nm to 40 Nm.
Mazda Demio Model 2018 Lower Control Arm
KSh5,500.00 Buy Via Whatsapp- Total Component Length: 350 mm (Note: Certain unbracketed aftermarket replacements indicate up to 422 mm across extended geometric measurement points).
- Total Component Height: 82 mm
- Component Width: ~50 mm (at base structural track profile)
- Ball Joint Cone/Pin Diameter: Ø 16 mm (Note: Factory-fitted original equipment measures 16 mm, though some heavy-duty replacement matrices use a 17.5 mm variant).
- Fitting Configuration Type: Pinch Bolt alignment configuration (16 mm)
- Inner Bushing Bolt Hole Diameter: 10.4 mm
- Left-Hand Side (LH):
- Mazda Original Equipment (OE) Codes:
DA7H-34-350B,DA6A-34-350C,DB2R-34-350 - Major Aftermarket Match: Delphi TC3286
- Mazda Original Equipment (OE) Codes:
- Right-Hand Side (RH):
- Mazda Original Equipment (OE) Codes:
DA7H-34-300B,DA6A-34-300C,DB2R-34-300 - Major Aftermarket Match: Delphi TC3287
- Mazda Original Equipment (OE) Codes:
- Structural Material: High-tensile forged or stamped steel alloy structural matrix finished with an anti-corrosion black powder layer.
- Pre-Assembled Bushings: Premium vulcanized natural rubber silent-block bushings (one forward cylindrical pivot bushing and one large rear compliance load bushing) engineered to minimize cabin NVH (Noise, Vibration, and Harshness).
- Ball Joint Mechanism: Maintenance-free, non-adjustable, factory-sealed, pre-greased low-friction ball joint enclosed in a flexible neoprene protective dust boot.
- Chassis Codes Covered: Mazda Demio / Mazda 2 Hatchback and Sedan (DBA-DJ3FS, DBA-DJ3AS 4WD, 3BA-DJLFS, 5BA-DJLFS, DJ5FS, DJ5AS).
- Powertrain Compatibility: 1.3L SkyActiv-G (
P3-VPS), 1.5L SkyActiv-G (F5-VPT/P5-VPS), and 1.5L SkyActiv-D Diesel (S5-DPTS). - Platform Sharing: Shared geometric subframe attachment layout with the Toyota Yaris / Yaris iA (North American variants derived from the Mazda DJ platform partnership).
Mazda Demio Model 2017 Lower Control Arm
KSh5,500.00 Buy Via Whatsapp- Total Component Length: 350 mm (Note: Certain unbracketed aftermarket replacements indicate up to 422 mm across extended geometric points). [1]
- Total Component Height: 82 mm [1]
- Component Width: ~50 mm (at base structural track profile)
- Ball Joint Cone/Pin Diameter: Ø 16 mm (Note: Some heavy-duty premium replacement matrices specify a 17.5 mm cone variant; standard factory factory-fitted OE measures 16 mm). [1]
- Fitting Configuration Type: Pinch Bolt alignment configuration (16 mm)
- Inner Bushing Bolt Hole Diameter: 10.4 mm
- Left-Hand Side (LH):
- Mazda Original Equipment (OE) Codes:
DA7H-34-350B,DA6A-34-350C,DA7H-34-350 - Major Aftermarket Match: Delphi TC3286 [1, 2]
- Mazda Original Equipment (OE) Codes:
- Right-Hand Side (RH):
- Mazda Original Equipment (OE) Codes:
DA7H-34-300B,D23H-34-300,DA6A-34-300C - Major Aftermarket Match: Delphi TC3287 [1, 2]
- Mazda Original Equipment (OE) Codes:
- Structural Material: High-tensile forged or stamped steel alloy structural matrix finished with an anti-corrosion black powder layer.
- Pre-Assembled Bushings: Premium vulcanized natural rubber silent-block bushings (one forward cylindrical pivot bushing and one large rear compliance load bushing) engineered to minimize cabin NVH (Noise, Vibration, and Harshness).
- Ball Joint Mechanism: Maintenance-free, non-adjustable, factory-sealed, pre-greased low-friction ball joint enclosed in a flexible neoprene protective dust boot. [1, 2]
- Chassis Codes Covered: Mazda Demio / Mazda 2 Hatchback and Sedan (DBA-DJ3FS, DBA-DJ3AS 4WD, DJ5FS, DJ5AS).
- Powertrain Compatibility: 1.3L SkyActiv-G (
P3-VPS), 1.5L SkyActiv-G (F5-VPT), and 1.5L SkyActiv-D Diesel (S5-DPTS). - Platform Sharing: Shared geometric subframe attachment layout with the Toyota Yaris / Yaris iA (2016+ North American variants derived from the Mazda DJ platform partnership). [1, 2]
Toyota fielder Model 2015-2010 Lower Control Arms
KSh4,000.00 Buy Via Whatsapp- Chassis System Codes: NZE141G, NZE144G (4WD), ZRE142G, ZRE144G (4WD) [1]
- Right Hand (RH) Control Arm OEM: 48068-12300 / 48068-12290 [1, 2]
- Left Hand (LH) Control Arm OEM: 48069-12300 / 48069-12290 [1, 2]
- Dimensional Parameters & Bushings:
- Forward Pivot Bolt Sleeve ID: 14.2 mm
- Rear Large Bushing Outer Diameter (OD): 65.2 mm
- Bushing Component Component Refs: Small Front Bushing (48654-12150 / RU-494); Large Rear Bushing (48655-12120 / RU-495 / TAB-145).
- Chassis System Codes: NZE161G, NZE164G (4WD), NRE161G, NKE165G (Hybrid Wagon) [1, 2]
- Right Hand (RH) Control Arm OEM: 48068-59135 / 48068-59145 [1, 2]
- Left Hand (LH) Control Arm OEM: 48069-59135 / 48069-59145 [1, 2]
- Bushing Configuration Specs:
- Structural Frame Shell: Robotic-welded heavy-gauge stamped carbon steel sheet matrix. [1]
- Pivot Configuration: 3-Point multi-axis movement tracking (Inner front horizontal rubber bush, inner rear vertical trailing bush, and outer ball joint knuckle receptacle). [1]
- Drivetrain Variance (2WD vs 4WD): 4WD platforms (NZE144G / NZE164G) utilize alternative bushing durometer tolerances along the inner sleeves to absorb transfer-case counter-shudder, despite sharing spatial geometries with FWD counterparts.[1, 2]
Toyota Nze Lower Control Arms
KSh4,000.00 Buy Via Whatsapp- Chassis Codes Covered: NZE121, ZZE122, CZE121 [1, 2]
- Right Hand (RH) Front Lower Control Arm OE: 48068-20400 / 48068-12220 [1, 2]
- Left Hand (LH) Front Lower Control Arm OE: 48069-20400 / 48069-12220 [1, 2]
- Structural Material: Stamped structural carbon sheet steel. [1, 2]
- Bushing Internal Steel Sleeve Dimensions:
- Forward Horizontal Pivot Sleeve (Inner Diameter): 14.2 mm (Matches M14 alignment fasteners).
- Rear Vertical Trailing Bush Sleeve (Inner Diameter): 14.5 mm
- Pressed Elastomeric Sub-Components:
- Small Front Bushing Ref: 48654-12120 / RU-357 (Dimensions: 14.2mm ID × 39.0mm OD × 59.0mm Length)
- Large Rear Bushing Ref: 48655-12170 / RU-385 / TAB-026 (Dimensions: 14.5mm ID × 68.5mm OD × 60.0mm Length) [1]
- Platform Sharing / Cross-Compatibility: Interchanges directly with the Toyota Allion/Premio (240 series), Toyota Wish (10 series), and the Toyota Matrix (ZZE130). [1, 2]
- Chassis Codes Covered: NZE141 (Axio / Fielder variants) [1, 2]
- Right Hand (RH) Front Lower Control Arm OE: 48068-12300 / 48068-12290 [1, 2]
- Left Hand (LH) Front Lower Control Arm OE: 48069-12300 / 48069-12290 [1]
- Component Weight: Approximately 3.15 kg per side assembly.
- Bushing Internal Steel Sleeve Dimensions:
- Forward Horizontal Pivot Sleeve (Inner Diameter): 14.2 mm
- Rear Vertical Trailing Bush Sleeve (Inner Diameter): 14.4 mm
- Pressed Elastomeric Sub-Components:
- Small Front Bushing Ref: 48654-12150 / RU-494 (Dimensions: 14.2mm ID × 38.2mm OD × 61.0mm Length)
- Large Rear Bushing Ref: 48655-12120 / RU-495 / TAB-145 (Dimensions: 14.4mm ID × 65.2mm OD × 55.0mm Length)

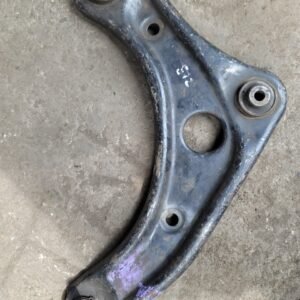

Nissan March Model K12 Lower Control Arm
KSh4,000.00 Buy Via Whatsapp- Suspension Type: Track Control Arm / Trailing Wishbone (Independent MacPherson Strut lower pivot locator).
- Material Composition: Stamped Heavy-Duty Structural Sheet Steel.
- Overall Length: 390 mm.
- Overall Width: 375 mm.
- Overall Height: 70 mm.
- Axle Placement: Front Axle (Asymmetrical, side-specific Left/Right configuration). [1, 2, 3, 4]
- Integrated Front Bushing: Cylindrical rubber-to-metal silent block sleeve bushing. [1]
- Integrated Rear Bushing: Heavy-duty rubber damper pad bush.
- Ball Joint Configuration: Integrated press-fit ball joint assembly featuring a 16 mm tapered pin/stud sizing. [1]
- Front Bushing Horizontal Pivot Bolt: 114 Nm (84 ft-lbs).
- Rear Bushing Vertical Pivot Bolt: 108 Nm (80 ft-lbs).
- Ball Joint Knuckle Pinch Bolt: 29 Nm (21 ft-lbs).
- Note on Installation: Fasteners anchoring the inner rubber bushes must only be torqued to final limits once the suspension is pre-loaded to vehicle ride height (approx. 36.5 cm hub-to-fender center) to eliminate binding and premature rubber failure. [1, 2, 3, 4]
- Nissan Genuine OEM Component Part Roots:
- Right Hand (RH): 54500-AX600, 54500-BC40A.
- Left Hand (LH): 54501-AX600, 54501-BC40A.
- Major Aftermarket Technical Cross-References:
Mitsubishi Lancer Lower Control Arm
Price: 4,500
Compatibility: Mitsubishi Lancer (select models – confirm chassis code)
Performance: Stable suspension movement, Reduced road vibration
Honda Airwave Lower Control Arms
Price: 4,500
Compatibility: Honda Airwave (2005–2010),Compatible with Honda Fit Aria (select models)
Performance: Improved suspension stability,Better wheel alignment
Daihatsu Mira Lower Control Arms
Daihatsu Mira Lower Control Arms
Condition: Ex-Japan – Grade A, lightly used, fully tested for reliability and durability.
Compatibility: Perfectly designed for Daihatsu Mira ensuring OEM fit and smooth suspension performance.
Performance: Maintains precise wheel alignment, improves handling, and ensures stable, safe driving. Absorbs road shocks for better ride comfort.
Durability: Made with high-quality materials to resist wear, corrosion, and long-term usage.
Value: Affordable at 4000, delivering safety, control, and long-lasting performance for daily driving or rough road conditions.
2012 Swift Lower Control Arms
-
Part: Front Lower Control Arm (Left/Right).
-
Condition: Grade A Ex-Japan (Used)
-
Compatibility: Fits Suzuki Swift models 2010–2017 (Chassis: ZC72S, ZD72S, ZC82S).
-
Components: Includes pre-fitted high-density bushings and heavy-duty ball joint.
-
Price: KSh 4,000
