Nissan Wingroad Y12 Wheel Hub Bearing

KSh4,000.00
Front Wheel Hub Assembly Specifications
The front wheel hub is a complete, sealed bolt-on unit containing double-row angular contact ball bearings. The bearing cannot be pressed out independently; the entire unit must be replaced. [1, 2, 3]
  • Flange Outer Diameter: 122 mm
  • Spline/Teeth Count (CV Axle Input): 25 teeth
  • Bolt Pattern (PCD): 4 x 100 mm
  • Wheel Stud Thread Size: M12 x 1.25
  • ABS Integration: Features a built-in 48-teeth magnetic sensor encoder ring on the inner face.
  • Mounting Configuration: 3-bolt triangular pattern securing directly to the steering knuckle.
  • Common OEM Cross-References: 40202-ED000, 40202-ED02A, 40202-ED05A, and PHU58010. [1, 2, 3, 4]
Rear Wheel Hub Assembly Specifications (FWD Modifications)
For standard Front-Wheel Drive models (such as the DBA-Y12 and DBA-JY12), the rear hub assembly houses the spindle sleeve and bolts straight to the rear trailing axle beam. [1, 2]
  • Flange Outer Diameter: 134 mm
  • Inner Diameter (Center Bore): 25 mm
  • Centering/Pilot Diameter: 68 mm
  • Total Unit Height: 69 mm
  • Bolt Pattern (PCD): 4 x 100 mm
  • Mounting Configuration: 4-bolt square mounting flange.
  • Common OEM Cross-References: 43202-ED305 and 0282-Z12WDR. [1, 2, 3]
Critical Installation Torque Specifications
Proper torque loading is essential to set the exact factory preload on the internal double-row ball bearings. Deviations can result in premature bearing noise or complete structural breakdown. [1, 2, 3]
  • Front Axle Spindle/Hub Nut: 113 Nm to 125 Nm (83 to 92 ft-lbs)
  • Hub-to-Steering Knuckle Bolts (Front): 88.3 Nm (65 ft-lbs)
  • Hub-to-Axle Housing Bolts (Rear): 85 Nm (63 ft-lbs)
  • Wheel Lug Nuts: 108 Nm (80 ft-lbs)

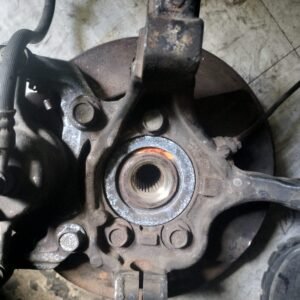

Nissan Tiida Wheel Hub

KSh4,000.00
The Nissan Tiida (primarily the C11 and C12 generations) utilizes a fully integrated wheel hub and bearing assembly for both the front and rear axles. Because specifications differ significantly depending on the market region (e.g., Japan/Australia vs. Europe/Americas) and ABS configurations, the data is split by standard setups. [1, 2, 3, 4]
Front Wheel Hub Specifications
The front wheel hub houses the internal splines that receive power from the CV axle shaft. [1]
  • Spline/Teeth Quantity: 25 teeth on the input shaft.
  • Bolt Pattern (PCD): Commonly 4 x 114.3 mm (Standard JDM/Global models) or 4 x 100 mm (Select European variants).
  • Flange Outer Diameter: 122 mm to 136 mm (depending on PCD configuration).
  • Hub Pilot Diameter: 80 mm.
  • Mounting Configuration: 3-bolt triangular mounting flange to the steering knuckle.
  • Wheel Stud Thread Size: M12 x 1.25. [1, 2, 3, 4, 5, 6, 7]
Rear Wheel Hub Specifications
The rear hub assembly varies drastically between front-wheel drive (FWD) and all-wheel drive (4WD) e-4WD models. The standard FWD rear assembly includes: [1]
  • Flange Outer Diameter: 134 mm to 148 mm.
  • Center Bore / Wheel Pilot Diameter: 66 mm to 68 mm.
  • Mounting Configuration: 4-bolt square pattern to the rear trailing axle.
  • ABS Integration: Available as standard magnetic encoder ring variants or non-ABS variants. [1, 2, 3]
Critical Torque Specifications
Adhering to correct torque specifications is mandatory during installation to avoid premature wheel bearing failure: [1]
  • Front Wheel Hub Central Axle Nut: 113 Nm (83 ft-lbs)
  • Hub Assembly-to-Knuckle Bolts (Front): 88.3 Nm (65 ft-lbs)
  • Hub Assembly-to-Axle Bolts (Rear): 94.3 Nm (70 ft-lbs)
  • Wheel Lug Nuts: 113 Nm (83 ft-lbs)

Nissan Note Model E12 Lower Arm Control

KSh4,000.00
Nissan Note (Model E12) Front Lower Control Arm Technical Specifications
  • Suspension Type: MacPherson strut front independent suspension lower track control arm.
  • Control Arm Material: Stamped sheet steel (welded assembly configuration).
  • Component Weight: Approximately 2.49 kg per side (complete assembly including ball joint and bushings).
  • Total Component Length: 338 mm.
  • Ball Joint Cone Pin Size: 16 mm diameter.
  • Bushing Design: Horizontal front rubber pivot mounting bush and an upright rear cylindrical rubber dampening mount.
  • Assembly Inclusions: Pre-installed non-adjustable press-fit outer ball joint and vulcanized rubber mounting bushings. [1, 2, 3, 4]
Genuine OEM Part Numbers
  • Front Right Hand (RH) Lower Arm: 54500-1HM0B, 54500-1HA0C, 54500-1HA5A, 54500-1HA5D, 54500-1HA6A
  • Front Left Hand (LH) Lower Arm: 54501-1HM0B, 54501-1HA0C, 54501-1HA5A, 54501-1HA5D, 54501-1HA6A
  • Chassis/Model Codes: E12 Series (2012–2020)
  • Engine Compatibility: HR12DE, HR12DDR, HR15DE, HR16DE

Nissan Dayz Rear Arms

KSh7,000.00
Part Numbers & Identification
  • OEM Part Number (Rear Left Control Arm - B21W): 55501-6A00K [1]
  • OEM Part Number (Rear Right Control Arm - B21W): 55502-6A00K / 55501-6A00K [1, 2]
  • Chassis Codes:
    • 1st Gen (2013–2019): DBA-B21W (Dayz), DBA-B21A (Dayz Roox)
    • 2nd Gen (2019–Present): 5BA-B43W, 5AA-B44W, 4AA-B45W, 5AA-B47W [1, 2, 3]
2WD (FF) Rear Suspension Layout Specs
  • Suspension Type: Torsion Beam Axle with integrated trailing arms.
  • Arm Configuration: Rigid trailing arms trailing forward from the main beam axle to the chassis frame mounting pivots.
  • Bushing Type: Rubber-to-metal bonded isolation bushings pressed directly into the trailing arm pivot ends.
  • Shock Mount Configuration: Eyelet-type lower mounting bolt integrated into the rear end of the trailing arm assembly structure. [1]
4WD Rear Suspension Layout Specs
  • Suspension Type: Torque Arm Type 3-Link Suspension System.
  • Arm Configuration: Two separate lower trailing arms (left and right sides) combined with a lateral control arm (Panhard rod/track bar) for lateral axle stabilization.
  • Control Arm Material: Pressed structural steel profile.
  • Lateral Rod Connection: Spherical inner hub with vulcanized rubber bushing.

Nissan AD Van Driveshaft

KSh6,000.00
Part Numbers & Identification
  • OEM Part Number (Front Left - 1.5L HR15DE): 39101-ED000 / 39101-3ZJ0C
  • OEM Part Number (Front Left - 1.2L CR12DE): 39101-JJ01A
  • OEM Part Number (Front Left - 1.6L HR16DE 4WD): 39101-CV20A
  • Vehicle Families: VAY12 (1.2L), VY12 (1.5L), VZNY12 (1.6L 4WD)
  • Compatible Engine Formats: 1.2L CR12DE, 1.5L HR15DE, 1.6L HR16DE, 1.8L MR18DE [1, 2, 3]
Drivetrain & Joint Dimensions (Standard 2WD / 1.5L CVT)
  • Fitting Position: Front Axle (Left and Right specific)
  • External Spline Count (Wheel / Outer Side): 25 Teeth
  • Internal Spline Count (Outer CV Joint Inner Toothing): 22 Teeth
  • External Spline Count (Differential / Inner Side): 25 Teeth
  • Driveshaft Length (Left Side / Compressed): ~615 mm – 630 mm
  • Driveshaft Length (Right Side / Compressed): ~910 mm – 915 mm (Utilizes a 2-piece setup with an intermediate extension shaft)
  • Seal Journal/Ring Diameter: 49 mm
  • Hub Nut Thread Size: M22 x 1.5
  • Outboard Joint Type: Rzeppa (Ball-type CV Joint)
  • Inboard Joint Type: Tripod Joint
Chassis & Transmission Specific Variances
  • 4WD Variant (e-4WD / VZNY12 Chassis): Models powered by the 1.6L engine feature an electric 4WD system. The front shafts feature reinforced inner joints, while the rear electronic-drive half-shafts operate on a separate independent rear axle configuration with independent spline sets. [1]
  • 4-Speed Automatic (Standard Transaxle): Automatic transmission variants (typically paired with the early CR12DE engines) share the 25-spline differential output profile but feature minor variances in overall rod compression lengths. [1]

Nissan Wingroad Y12 Driveshafts

KSh6,000.00
Part Numbers & Identification
  • OEM Part Number (Front Left - HR15DE CVT): 39101-1V10C / 39101-ED000
  • OEM Part Number (Front Right - HR15DE CVT): 39100-1V10C / 39100-ED000
  • Vehicle Generation: Y12 Series (Wagon)
  • Compatible Engine Formats: 1.5L HR15DE, 1.8L MR18DE [1, 2]
Drivetrain & Joint Dimensions
  • Fitting Position: Front Axle (Left and Right specific)
  • External Spline Count (Wheel / Outer Side): 25 Teeth
  • Internal Spline Count (Outer CV Joint Inner Toothing): 22 Teeth
  • External Spline Count (Differential / Inner Side): 25 Teeth
  • Driveshaft Length (Left Side / Compressed): ~615 mm – 630 mm
  • Driveshaft Length (Right Side / Compressed): ~910 mm – 915 mm (Utilizes an intermediate/extension shaft config)
  • Seal Journal/Ring Diameter: 49 mm
  • Hub Nut Thread Size: M22 x 1.5
  • Outboard Joint Type: Rzeppa (Ball-type CV Joint)
  • Inboard Joint Type: Tripod Joint [1, 2]
Transmission & Layout Differences
  • CVT Variant (RE0F08A / RE0F10A): Standard 25x22x25 spline configuration.
  • 4WD Variant (e-4WD / NY12 Chassis): Features distinct specifications for the rear electronic-drive half-shafts, which utilize a smaller outer joint configuration (~21-spline internal mapping on specific sub-components). [1, 2, 3]

Nissan Tiida Driveshaft

KSh6,000.00
Part Numbers & Identification
  • OEM Part Number (Front Left - CVT/HR15DE): 39101-1V10C
  • OEM Part Number (Alternative Base Cross-References): 39101-95F0C
  • Vehicle Generation: C11 Series (Hatchback / Tiida Latio Sedan)
  • Compatible Engine Formats: 1.5L HR15DE, 1.6L HR16DE, 1.8L MR18DE [1, 2, 3, 4]
Automatic / CVT Transmission Variant Specs
  • Fitting Position: Front Axle (Left and Right specific)
  • External Spline Count (Wheel / Outer Side): 25 Teeth
  • External Spline Count (Differential / Inner Side): 25 Teeth
  • Driveshaft Length (Right Side / Compressed): ~910 mm – 911 mm (with intermediate/extension shaft)
  • Driveshaft Length (Left Side): ~615 mm – 630 mm
  • Hub Nut Thread Size: M22 x 1.5
  • Seal Ring Diameter: 49 mm
  • Outboard Joint Type: Ball-type joint
  • Inboard Joint Type: Tripod-type joint [1, 2]
Manual Transmission (6-Speed / Euro-Spec) Variant Specs
  • External Spline Count (Wheel / Outer Side): 29 Teeth
  • External Spline Count (Differential / Inner Side): 26 Teeth (Note: High-output diesel or MR18DE variants may utilize 29 teeth inner splines)
  • Driveshaft Length (Left Side): 692 mm
  • Driveshaft Length (Right Side): 941 mm
  • Hub Nut Thread Size: M24 x 1.5
  • Seal Ring Diameter: 56 mm [1, 2]

Nissan Serena Model 2018 Steering Rack

KSh20,000.00
Part Numbers & Identification
  • OEM Part Number (2WD / 4x2): 48001-5TA0A
  • OEM Part Number (4WD / 4x4): 48001-5TB4A
  • Vehicle Generation: C27 Series
  • Compatible Engine Models: 2.0L MR20DD / MR20DD (SM24) S-Hybrid [1, 2, 3, 4]
System Specifications
  • Operating Mode: Electronic Power Steering (EPS) Assembly
  • Steering Gear Type: Rack and Pinion
  • Input Shaft Configuration: Toothed connection with 36 teeth
  • Input Shaft Diameter: 17.4 mm – 17.5 mm
  • Input Shaft Height: 29.6 mm – 37 mm (depending on specific sub-supplier variance like TRW)
  • Axle Joint / Tie Rod Thread Size: M12 x 1.5
  • Main Housing Thread Connections: M14 x 1.5 / M16 x 1.5

Nissan Dayz Lower Control Arm

KSh4,000.00
Part Identification & Cross-References
  • 1st Generation OEM Right (Passenger Side): 54504-6A00E, 54504-6A00G (B21W / B21A Roox)
  • 1st Generation OEM Left (Driver Side): 54505-6A00J (B21W)
  • 2nd Generation OEM Right/Left Reference: 54501-7MA0B (B43W, B44W, B45W, B47W chassis architecture)
  • Component Assembly: Comprises a pre-pressed horizontal front pivot bushing, a larger vertical rear compliance bushing, and a factory-integrated, non-serviceable outboard lower ball joint.
Physical Construction
  • Material Base: Stamped / Pressed High-Tensile Sheet Steel
  • Surface Finish: Anti-corrosive black electro-deposition coating (ED-paint)
  • Joint Configurations: Tapered ball joint pin designed specifically for a cross-axis horizontal pinch-bolt fitting at the steering knuckle throat base.
Tightening Torque Specifications
  • Front Pivot Bolt (Horizontal to Subframe): 74 to 85 ft-lbs (100 to 115 N·m)
  • Rear Compliance Bushing Bolt (Vertical to Subframe): 81 to 96 ft-lbs (110 to 130 N·m)
  • Lower Ball Joint Pinch Bolt to Steering Knuckle: 41 to 46 ft-lbs (55 to 62 N·m)
  • Stabilizer Bar End Link to Control Arm Base Nut: 26 ft-lbs (35 N·m)
  • Front Wheel Lug Nuts: 76 ft-lbs (103 N·m)

Nissan Dayz Driveshafts

KSh5,000.00
Part Identification & Fitment
  • 1st Gen OEM Right (Passenger/Long Side) Part Number: 39100-6A00A (B21W 2WD / 3B20 Engine)
  • 1st Gen OEM Left (Driver/Short Side) Part Number: 39100-6A00B / 39101-6A00E (B21W 2WD)
  • 2nd Gen OEM Left (Driver/Short Side) Part Number: 39101-7MA0A (B44W / BR06 Engine)
  • Alternative Aftermarket Equivalents: HDK DS-MI-13 (Left) / HDK DS-MI-14 (Right)
  • Drivetrain Variants: Separate configurations exist for Front-Wheel Drive (FF) and Full-time 4WD chassis. 4WD models employ unique length profiles and different rear axle output splines. [1, 2, 3, 4]
Physical & Joint Spline Dimensions
  • Outer Spline (Wheel / Steering Knuckle Side): 21 Teeth
  • Inner Spline (Differential / Transmission Side): 21 Teeth (Note: Standard manual or CVT transaxles match this count; turbo or 4WD inner joints can alter stub sizing).
  • Outer Component Profile: Features an integrated ABS tone/encoder ring or specialized dynamic balancer on the longer passenger shaft.
  • ABS Integration Type: Magnetic pickup or toothed rotor variant depending on production tier. [1]
Tightening Torque Specifications
  • Front Axle Center Spindle Nut to Hub: 111 to 132 ft-lbs (150 to 180 N·m) (Note: Standard practice requires a brand new locking nut, which must be mechanically peened down or cotter-pinned to prevent back-out after final torquing).
  • Lower Ball Joint Pinch Bolt to Steering Knuckle: 44 ft-lbs (60 N·m)
  • Tie Rod End Ball Joint Nut: 25 ft-lbs (34 N·m)
  • MacPherson Strut Lower Base Mounting Bracket Bolts (2x): 74 ft-lbs (100 N·m)
  • Front Wheel Lug Nuts: 76 ft-lbs (103 N·m)

Nissan Dayz Gearbox Mountain

KSh3,500.00
Component Overview & Construction
  • Component Type: Left-Hand (LH) Transmission / Gearbox Insulator Mount.
  • Material Composition: Stamped structural steel bracket combined with natural rubber vibration-damping inserts.
  • Mounting Method: Multi-bolt frame attachment with a through-bolt core bushing layout to suspend the CVT/manual transmission case.
Part Numbers & Factory Designations
  • Primary OE/OEM Reference (Transmission Mount): 75860-6A00C
  • Alternative Manufacturer Part Identification: MN120289 (Cross-referenced due to joint development under the NMKV venture with Mitsubishi).
  • Associated Left-Hand Bracket Reference: 24236-6A00B [1]
Platform & Vehicle Compatibility
  • Chassis Platform/Generation:
    • 1st Generation: B21W Series (AA0 chassis code) spanning 2013–2019.
    • 2nd Generation: B44W, B45W, B47W, B48W Series (AA1 chassis code) spanning 2019–present. [1, 2]
  • Model Variants: Nissan Dayz, Nissan Dayz Highway Star, and Nissan Dayz Roox (B21A). [1]
  • Shared Architecture: Shared mechanical footprint and component styling with the Mitsubishi eK Wagon / eK Space (B11W series).
Powertrain Configurations
  • Engine Compartment Applications: Engineered specifically for the 659cc 3-cylinder power plants: 3B20 (Naturally Aspirated) and 3B20T (Turbocharged), along with newer BR06 engine codes. [1, 2]
  • Transmission Layout Support: Built for front-wheel-drive (2WD) and all-wheel-drive (4WD) layouts mated to an Xtronic Continuously Variable Transmission (CVT) or 5-speed manual transmission gearbox. [1, 2]
Tightening Torque Specifications
  • Main Gearbox Mount-to-Chassis Frame Bolts: 55 Nm (41 ft-lbs)
  • Central Through-Bolt / Hex Nut (Bushing Core Pin): 62 Nm (46 ft-lbs)
  • Gearbox Support Bracket-to-Transmission Case Fasteners: 59 Nm (43 ft-lbs) [1, 2]

Nissan Note Model E12 Crossmember Mountain

KSh3,000.00
Component Overview & Bushing Dimensions
  • Component Type: Front Axle Subframe Crossmember / Engine Carrier Cradle.
  • Material Composition: High-strength stamped structural steel.
  • Bushing Dimensional Profile (OEM / Polyurethane Upgrades):
    • Inner Bolt Diameter: 17.2 mm
    • Outer Fitting Diameter: 39.7 mm
    • Total Bushing Height: 80.3 mm
    • Bushing Core Width: 35.0 mm
  • Mounting Pattern: 4-point isolated high-density rubber dampening configuration.
Part Numbers & Component Identifiers
  • Primary OE/OEM Reference (FWD Models): 54401-3VA0A
  • Alternative / Regional Variations: 8200371332, 54401-5WH0A
  • Lower Cross Rail Support (Manual Transmission): L02952
  • Lower Cross Rail Support (Automatic/CVT): L02953
  • Associated Left Side Bracket/Stay: 54525-3VA0A
  • Associated Right Side Bracket/Stay: 54524-3VA0A [1]
Platform & Vehicle Compatibility
  • Chassis Platform: Nissan V Platform (Evolutionary successor to the B platform).
  • Model Range/Codes: Nissan Note 2nd Generation (E12, NE12 - 4WD) spanning production years 2012–2020.
  • Shared Geometric Footprint: Shares basic subframe isolation dimensions and steering rack mounting positions with the Nissan Micra/March (K13). [1]
Powertrain & Mechanical Layout
  • Compatible Engine Layouts: 1.2L 3-cylinder (HR12DE), 1.2L DIG-S (HR12DDR), 1.6L 4-cylinder (HR16DE), and 1.5L dCi Diesel.
  • Drivetrain Variances: Standard front relief for FWD versions; modified rear transfer case clearances on NE12 4WD and e-POWER variants. [1]
Tightening Torque Specifications
  • Main Subframe Cradle-to-Body Bolts (4 points): 127 Nm (94 ft-lbs)
  • Subframe Lower Stay/Bracket Reinforcement Bolts: 97 Nm (72 ft-lbs)
  • Rear Torque-Rod Engine Mount (Pins to Subframe): 95 Nm (70 ft-lbs)
  • Steering Rack Gearbox to Subframe Mounting Bolts: 147 Nm (109 ft-lbs)
  • Lower Control Arm Ball Joint (Pins to Steering Knuckle): 37 Nm (27 ft-lbs) [1]

Nissan AD Crossmember Mountain

KSh3,000.00
Component Overview & Bushing Dimensions
  • Component Type: Front Axle Subframe Member / Engine Carrier Support Cradle. [1]
  • Material Composition: High-strength stamped structural steel.
  • Bushing Dimensional Profile (OEM / Direct Replacement):
    • Inner Bolt Diameter: 17.2 mm
    • Outer Fitting Diameter: 39.7 mm
    • Total Bushing Height: 80.3 mm
    • Bushing Core Width: 35.0 mm
  • Damping Configuration: 4-point isolated press-fit rubber bushings engineered for high-durability commercial van duty cycles. [1]
Part Numbers & Interchangability
  • Primary OE/OEM Reference: 54400-EW000 [1, 2]
  • Factory Substitution/Supercession Reference: 54400-1FS0A [1]
  • Associated Left Support Link/Stay: 54525-EL000
  • Associated Right Support Link/Stay: 54524-EL000 / NSL-NM1 [1]
  • Lower Control Arm Bushing Identifiers (Pins to Crossmember):
    • Large Bushing: 54570-ED500
    • Small Bushing: 54560-ED530
Platform & Vehicle Compatibility
  • Chassis Platform: Nissan B Platform (Commercial Wagon Layout).
  • Model Range/Codes: Nissan AD / AD Expert 4th Generation (VAY12, VY12, VJY12, VZNY12) spanning production years 2006–2021.
  • Shared Architecture: Swaps its mechanical footprint, structural mounting geometries, and internal bush dimensions directly with the Nissan Wingroad (Y12) and Nissan Tiida (C11). [1, 2, 3, 4, 5]
Powertrain & Mechanical Layout
  • Compatible Engine Layouts: 1.2L (CR12DE), 1.5L (HR15DE), 1.6L (HR16DE), and 1.8L (MR18DE).
  • Drivetrain Layouts: Optimized for Front-Wheel Drive (FF/FWD) setups (Automatic / CVT) with altered rear relief profiles on VZNY12 4WD e-4WD systems. [1, 2, 3]
Tightening Torque Specifications
  • Primary Main Subframe Cradle Bolts (4 points): 127 Nm (94 ft-lbs)
  • Subframe Stay Bracket Reinforcement Bolts: 97 Nm (72 ft-lbs)
  • Transaxle/Engine Mount Rear Torque Bracket (Pins to Subframe): 88 to 107 Nm
  • Steering Rack Gearbox to Subframe Connecting Bolts: 147 Nm (109 ft-lbs)

Nissan Wingroad Crossmember Mountain

KSh3,000.00
Component Overview & Bushing Dimensions
  • Component Type: Front Suspension Axle Subframe Member / Engine Carrier Cradle. [1, 2]
  • Material Composition: High-strength stamped structural steel.
  • Bushing Dimensional Profile (OEM / Direct Replacement):
    • Inner Diameter: 17.2 mm
    • Outer Fitting Diameter: 39.7 mm
    • Total Bushing Height: 80.3 mm
    • Bushing Core Width: 35.0 mm
  • Mounting Design: 4-point isolated high-density press-fit rubber damping configuration. [1, 2]
Part Numbers & Component Identifiers
  • Primary OE/OEM Reference: 54400-EW000 [1, 2]
  • Associated Left Support Link/Stay: 54525-EL000
  • Associated Right Support Link/Stay: 54524-EL000 [1]
  • Lower Control Arm Bushing Identifiers (Connects to Crossmember):
    • Large Bushing: 54570-ED500
    • Small Bushing: 54560-ED530 [1]
Platform & Vehicle Compatibility
  • Chassis Platform: Nissan B Platform.
  • Model Range/Codes: Nissan Wingroad 3rd Generation (Y12, JY12, NY12) spanning production years 2005–2018.
  • Shared Architecture: Interchanges chassis core components, internal bushing inserts, and control arm dimensions directly with the Nissan Tiida (C11) and Nissan Note (E11). [1, 2]
Powertrain & Mechanical Layout
  • Compatible Engine Layouts: 1.5L Petrol (HR15DE) and 1.8L Petrol (MR18DE).
  • Drivetrain Support: Configured for Front-Wheel Drive (FF/FWD) layouts with Continuously Variable Transmissions (CVT) or Automatic Transmissions (AT). [1, 2, 3]
Tightening Torque Specifications
  • Primary Main Subframe Cradle Bolts (4 points): 127 Nm (94 ft-lbs)
  • Subframe Stay Bracket Reinforcement Bolts: 97 Nm (72 ft-lbs)
  • Transaxle/Engine Mount Rear Torque Bracket (Pins to Subframe): 88 to 107 Nm
  • Steering Rack Gearbox to Subframe Connecting Bolts: 147 Nm (109 ft-lbs) [1, 2, 3]

Nissan NV200 Crossmember Mountain

KSh3,000.00
Component Overview & Bushing Dimensions
  • Component Type: Front Suspension Axle Subframe Crossmember / Engine Cradle. [1]
  • Material Composition: High-tensile stamped structural steel. [1]
  • Bushing Dimensional Profile:
    • Interchanges layout configurations with the Nissan Tiida platform architecture.
    • Inner Diameter: 17.2 mm
    • Outer Fitting Diameter: 39.7 mm
    • Total Bushing Height: 80.3 mm
    • Bushing Core Width: 35.0 mm [1]
  • Mounting Configuration: 4-point isolated press-fit rubber bushing mounting assembly. [1, 2]
Part Numbers & Factory Designations
  • Primary OE/OEM Reference (Front): 54400-9SA0A [1]
  • Superseded / Alternative Part Numbers:
    • 54400-3LM0A
    • 54525-JX00A (Associated Subframe Support Link/Stay - Left)
    • 54524-JX00A (Associated Subframe Support Link/Stay - Right) [1]
  • Rear Axle Crossmember Reference (If applicable): 43010-BJ00A [1]
Platform & Vehicle Compatibility
  • Chassis Platform: Nissan B Platform (Van/Commercial Variant Layout).
  • Model Range/Codes: Nissan NV200 / Evalia (M20, M20X) spanning production years 2009–2021.
  • Shared Architecture: Shares internal bushing dimensions and specific steering rack mounting geometric alignments with the Nissan Tiida (C11) and Nissan Cube (Z12) global configurations. [1, 2]
Powertrain & Alignment Baseline Specifications
  • Engine Compartment Compatibility: Built for 1.5L dCi Diesel (K9K), 1.6L Petrol (HR16DE), and 2.0L Petrol (MR20DE) engine layouts. [1]
  • Drivetrain Support: Engineered for Front-Wheel Drive (FWD) layouts across Manual, Automatic, and CVT options.
  • Factory Alignment Baseline Constraints (Unladen Crossmember Geometry):
    • Camber: 0°00' (Acceptable factory tolerance: -0°45' to +0°45')
    • Caster: 3°55' (Acceptable factory tolerance: 3°10' to 4°40')
    • Total Toe-In: 1 mm to 2 mm

Nissan Tiida Crossmember Mountain

KSh3,000.00
Component Overview & Bushing Dimensions
  • Component Type: Front Axle Subframe Member / Engine Carrier Cradle. [1, 2]
  • Material Composition: High-strength stamped structural steel.
  • Bushing Dimensional Profile (OEM / Direct Replacement):
    • Inner Diameter (A): 17.2 mm
    • Outer Fitting Diameter (B): 39.7 mm
    • Total Height/Length (C): 80.3 mm
    • Bushing Flange/Core Width (D): 35.0 mm [1]
  • Bushing Compound: Hardened high-density anti-crack rubber (OEM standard). [1]
Part Numbers & Factory Designations
  • Primary OE/OEM Reference: 54401-HV70B [1]
  • Alternative / Cross-Reference Part Numbers:
    • 54400-BB50A, 54401-6605R (Renault global platform sharing)
    • 54525-EL000 (Associated Subframe Mounting Link - Left)
    • 54524-EL000 / NSL-NM1 (Associated Subframe Mounting Link/Stay - Right) [1, 2, 3, 4]
Platform & Vehicle Compatibility
  • Chassis Platform: Nissan B Platform.
  • Model Range/Codes: Tiida / Tiida Latio Hatchback and Sedan (C11, C11X, SC11, SC11X) spanning production years 2004–2014.
  • Shared Architecture: Interchanges structural configuration attributes with the Nissan Cube (Z12) and Nissan Livina (L10/L11). [1, 2, 3, 4]
Powertrain & Alignment Specifications
  • Compatible Engine Codes: 1.5L Petrol (HR15DE), 1.6L Petrol (HR16DE), 1.8L Petrol (MR18DE), and 1.5L dCi Diesel. [1, 2, 3]
  • Drivetrain Support: Configured for Front-Wheel Drive (FWD) transmissions (Automatic, Manual, and CVT variants). [1]
  • Associated Factory Wheel Alignment Constraints (Unladen Crossmember Baseline):
    • Camber (Nominal): -0°10' (Acceptable factory range: -0°55' to +0°35')
    • Caster (Nominal): 4°35' (Acceptable factory range: 3°50' to 5°20')
    • Total Toe-In: 1 mm (Acceptable factory range: 0 mm to 2 mm) [1]

Nissan Note Model E11 Crossmember Mountain

KSh3,000.00
Component Overview & Dimensions
  • Component Type: Front Axle Subframe Crossmember / Suspension Cradle.
  • Material Composition: High-grade structural stamped steel.
  • Surface Protective Treatment: Dual-layer protection featuring a Ceramic Conversion Coating combined with an Electrophoretic (E-coat) anti-corrosion finish.
  • Bushing Fitment Specifications: Inner Diameter: 17mm | Outer Diameter: 41mm.
  • Installation Profile: Bolt-on configuration with pre-installed bushings. [1, 2, 3, 4, 5, 6, 7]
Part Numbers & Interchangability
  • Primary OE/OEM Reference: 8200371332. [1, 2]
  • Alternative & Superseded Part Numbers:
    • 544009U000, 544009U21A, 544009U22A, 544009U23A
    • 54400AX602, 54400BC10A, 54400BC11A, 54400BC12A
    • 8200475469, 8200766078, 8200766079, 8200766085, 8200500491 [1, 2]
  • Platform Compatibility: Nissan B Platform (Shared layout across Nissan Note E11/NE11 2005–2013, Nissan Micra K12, Renault Clio III, and Renault Modus). [1, 2, 3, 4]
Engine & Powertrain Matching
  • Compatible Engine Displacements: 1.4L, 1.5L, 1.6L Petrol (including HR15DE) and 1.5L dCi Diesel variants.
  • Drivetrain Layout: Front-Wheel Drive (FWD) layouts. [1, 2, 3, 4, 5]

Nissan Note Model E12 Engine Mounting

KSh4,000.00
1. Component Breakdown & OEM Part Numbers
The E12 platform utilizes a three-point suspended engine containment setup designed to isolate the low-frequency vibrations typical of 3-cylinder powertrains:
  • Right-Hand Engine Mount (Front Right / Timing Side):
    • OEM Part Numbers: 11210-3HD3A, 11210-3HD0A
    • Function: Primary weight-bearing insulator. It secures the engine block to the right-hand chassis frame rail and absorbs primary engine harmonics. [1, 2]
  • Left-Hand Transmission Mount (Front Left / Gearbox Side):
    • OEM Part Numbers: 11220-3HD2A, 11360-1HC3C
    • Function: Gearbox casing insulator. It bears the weight of the transmission case, counteracting drivetrain movement during deceleration and CVT ratio adjustments. [1]
  • Rear Torque Rod (Lower Engine Stabilizer / "Dog-Bone" Mount):
    • OEM Part Numbers: 11360-1HC0A, 11360-1HC0D
    • Function: Lower restriction link. It fastens the rear of the transmission casing directly to the lower subframe cross-member to suppress the rotational "pitching" or rocking motion of the engine during acceleration. [1, 2]
2. Vehicle Structural Fitment
  • Engine Installation: Transverse alignment (East-West configuration)
  • Chassis & Powertrain Compatibility:
    • DBA-E12 (2WD): 1.2L 3-cylinder naturally aspirated (HR12DE) or 1.2L 3-cylinder supercharged (HR12DDR)
    • DBA-NE12 (4WD): 1.2L 3-cylinder Petrol variants
    • HE12 (e-POWER): 1.2L HR12DE paired with the EM57 electric motor generation system [1, 2]
  • Platform Sharing Interchangeability: The engine mounts directly match the mounting layout used on the Nissan March / Micra (K13) and the Nissan Latio (N17) platforms. [1, 2]
3. Material Specifications
  • Material Composition: Specially treated, high-absorption vulcanized natural rubber chemically bonded to stamped structural carbon steel base plates and cast aluminum brackets.
  • Damping Classification: Standard solid-core high-damping elastomeric design (passive configuration) optimized to target secondary-order idle frequencies.
4. Standard Installation Torque Specifications
  • Right-Hand Mount-to-Chassis Bolts: ~62 Nm (approx. 45 ft-lbs)
  • Right-Hand Mount-to-Engine Bracket Bolts: ~62 Nm (approx. 45 ft-lbs)
  • Left-Hand Mount-to-Gearbox Casing Stud/Nut: ~62 Nm to 80 Nm (approx. 45 to 59 ft-lbs)
  • Rear Lower Torque Rod Bracket Bolts: ~80 Nm (approx. 59 ft-lbs) [1, 2, 3]

Nissan Note Beam Model E12

KSh20,000.00
1. Structural Geometry & Alignment Specs
The E12 platform utilizes a semi-independent rear suspension layout with a semi-rigid twist profile:
  • Suspension Architecture Type: Torsion Beam / Twist Beam Axle with trailing arms. [1, 2]
  • Rear Track Width: 1,485 mm (standard variants). [1, 2]
  • Wheelbase Compatibility: 2,600 mm. [1, 2]
  • Brake Integration Interface: Formed with integral backing plates designed to accept factory 203 mm hydraulic drum brake units or specialized solid disc calipers (market/trim dependent). [1, 2]
  • Stabilizer Element: Built with an integrated inner anti-roll sway bar welded directly inside the V-shape profile of the torsion beam structure to control body roll.
2. OEM Part Numbers & Drive Layouts
  • Standard Front-Wheel Drive Layout (2WD / 4x2 / FF):
    • Nissan Original Equipment (OE) Codes: 55501-3VA0A, 55501-3VA0B, 55501-5WH0A [1]
  • All-Wheel Drive / Four-Wheel Drive Layout (4WD / 4x4 / e-POWER 4WD):
    • Nissan Original Equipment (OE) Code: 55501-3VE1B [1]
  • Matching Rear Pivot Axle Bushing Code: 55045-1HJ0A [1]
3. Material & Component Composition
  • Material Matrix: High-tensile cold-stamped structural spring steel with variable wall thickness for progressive roll rigidity.
  • Mounting Interface: Dual forward-facing eyelets carrying pre-pressed vulcanized natural rubber silent-block compliance bushings.
  • Coil Spring Mount Geometry: Dual welded structural lower spring seats configured for linear-rate coil springs and single-tube vertical dampening shock absorbers. [1]
4. Vehicle Platform Alignment
  • Chassis Series Covered: Nissan Note (DBA-E12, DBA-NE12 4WD, HE12 e-POWER).
  • Powertrain Mating: HR12DE (1.2L 3-cylinder), HR12DDR (1.2L Supercharged), and HR12DE-EM57 (e-POWER Hybrid systems). [1, 2, 3]

Nissan Cube Lower Arms

KSh4,000.00
1. Dimensional & Sizing Specifications
  • Ball Joint Cone/Pin Diameter:
    • Z11 Platform (2002–2008): Ø 16 mm [The Nissan Note Z11 shares this spec with the K12 Micra/E11 Note].
    • Z12 Platform (2008–2020): Ø 18 mm [Upgraded to match the C11 Tiida/NV200 standard for a wider wheel track].
  • Bushing Bolt Hole Diameters: 12 mm (Main subframe pivot alignment points)
  • Average Assembly Weight: ~2.25 kg to 2.40 kg per arm (dependent on platform width)
2. OEM Part Numbers & Cross-References
  • Z11 Generation (2002–2008 / B-Platform):
    • Left-Hand Side (LH): 54501-AX000, 54501-14B0A
    • Right-Hand Side (RH): 54500-AX000, 54500-14B0A
    • Aftermarket Matches: Delphi TC1307 (LH) / Delphi TC1308 (RH)
  • Z12 Generation (2008–2020 / B-Lounge Platform):
    • Left-Hand Side (LH): 54501-1FU0A, 54501-ED000, 54501-EE50A
    • Right-Hand Side (RH): 54500-1FU0A, 54500-ED000, 54500-ED00A
    • Aftermarket Matches: Delphi TC2873 (LH) / Delphi TC2874 (RH)
3. Material & Component Architecture
  • Structural Composition: Heavy-gauge stamped sheet steel matrix frame finished in an anti-corrosion black protective coating.
  • Pre-Installed Bushings: High-damping vulcanized natural rubber silent-block bushings (one small horizontal pivot bushing at the front position, one large vertical compliance cylindrical bushing at the rear position).
  • Ball Joint Mechanism: Maintenance-free, non-adjustable, factory-sealed and pre-greased low-friction ball joint integrated with a neoprene protective dust boot.
4. Vehicle & Platform Fitment Geometry
  • Chassis Codes Covered: Nissan Cube (BZ11, BNZ11, YZ11, Z12, NZ12).
  • Engine Alignment: 1.4L (CR14DE), 1.5L (HR15DE), 1.6L (HR16DE), 1.8L (MR18DE).
  • Platform Interchangeability:
    • Z11 arms directly swap with the Nissan March/Micra (K12) and Nissan Note (E11).
    • Z12 arms directly swap with the Nissan Tiida (C11), NV200 (M20), and Wingroad (Y12).

Nissan NV200 Lower Arms

KSh4,000.00
1. Dimensional & Sizing Specifications
  • Ball Joint Cone/Pin Diameter: Ø 18 mm
  • Ball Joint Body Diameter (Press-fit size): Ø 38.5 mm
  • Bushing Bolt Hole Diameters: 12 mm (Main frame pivot points)
  • Total Component Length: 540 mm
  • Total Component Width: 280 mm
  • Total Component Height: 80 mm
  • Average Assembly Weight: ~2.45 kg per side [1, 2]
2. OEM Part Numbers & Cross-References
  • Left-Hand Side (LH / Driver Side or Passenger depending on market):
    • Nissan Original Equipment (OE) Codes: 54501-EL000, 54501-3SH2A, 54501-9AM1A, 54501-9AM1B
    • Major Premium Aftermarket Match: Delphi TC2496 [1, 2]
  • Right-Hand Side (RH):
    • Nissan Original Equipment (OE) Codes: 54500-EL000, 54500-3SH2A, 54500-3SH2B, 54500-9AM1A, 54500-9AM1B
    • Major Premium Aftermarket Match: Delphi TC2497 [1, 2, 3]
3. Material & Component Architecture
  • Structural Composition: Heavy-duty stamped structural sheet steel or cast steel matrix shell, designed to withstand commercial van payload distributions. [1, 2, 3]
  • Pre-Installed Bushings: High-damping vulcanized natural rubber silent-block bushings (one horizontal inner pivot bushing, one vertical large compliance rear cylindrical bushing). [1, 2]
  • Ball Joint Mechanism: Maintenance-free, non-adjustable, factory-sealed and pre-greased low-friction ball joint integrated with a durable neoprene dust boot. [1, 2]
4. Vehicle & Platform Fitment Geometry
  • Chassis Codes Covered: Nissan NV200 Van / Combi / Evalia Bus (M20, M20M).
  • Engine Variant Alignment: 1.5L dCi (K9K), 1.6L (HR16DE), 2.0L (MR20DE).
  • Platform Sharing Interchangeability: Built on a modified variant of the global Nissan B-platform. The tracking arm architecture directly shares subframe layout points with the Nissan Tiida (C11), Bluebird Sylphy (G11), and Wingroad (Y12).

Nissan Note E11 Lower Arms

KSh4,000.00
1. Dimensional & Sizing Specifications
  • Ball Joint Cone/Stud Diameter: Ø 16 mm
  • Bushing Bolt Hole Inner Diameters: 12 mm (mounts to the subframe via 18 mm bolt heads)
  • Component Length: ~383 mm to 390 mm
  • Component Width: ~365 mm to 375 mm
  • Average Assembly Weight: ~2.25 kg to 2.37 kg per side [1, 2, 3, 4]
2. OEM Part Numbers & Cross-References
  • Left-Hand Side (LH / Passenger Side in RHD markets):
    • Nissan Original Equipment (OE) Codes: 54501-AX000, 54501-9U00A, 54501-BC40A
    • Major Premium Aftermarket Match: Delphi TC1307 [1, 2]
  • Right-Hand Side (RH / Driver Side in RHD markets):
    • Nissan Original Equipment (OE) Codes: 54500-AX000, 54500-9U00A, 54500-BC40A
    • Major Premium Aftermarket Match: Delphi TC1308 [1]
  • Standalone Replacement Ball Joint Code (Pressed-In Type): 40160-AX000 [1]
3. Material & Component Architecture
  • Structural Composition: Heavy-duty stamped sheet steel (matrix shell format) painted with an anti-corrosion protective layer. [1, 2]
  • Pre-Assembled Bushings: Two high-damping natural rubber silent-block bushings per arm (one small horizontal pivot bushing at the front position, one large vertical compliance cylindrical bushing at the rear position). [1, 2]
  • Ball Joint Mechanism: Maintenance-free, factory-sealed, pre-greased low-friction ball joint integrated with a neoprene protective dust boot. [1, 2]
4. Vehicle & Platform Fitment Geometry
  • Chassis Codes Covered: Nissan Note (E11 / NE11 4WD variant).
  • Engine Alignment: 1.4L (CR14DE), 1.5L dCi (K9K), and 1.6L (HR16DE).
  • Platform Sharing Interchangeability: Built on the global Nissan B-platform architecture. The track control arm dimensions directly match and swap with the Nissan March/Micra (K12), Nissan Cube (Z11), and select Renault platform cousins like the Clio III. [1, 2, 3]

Nissan Tiida Lower Arms

KSh4,000.00
1. Dimensional & Sizing Specifications
  • Ball Joint Cone/Stud Size: Ø 18 mm
  • Bushing Inner Bore Diameter: 12 mm
  • Total Component Length: 510 mm
  • Total Component Width: 235 mm
  • Total Component Height: 62 mm
  • Average Assembly Weight: ~2.3 kg to 2.35 kg per side [1, 2, 3, 4]
2. OEM Part Numbers & Cross-References
  • Left-Hand Side (LH / Driver Side or Passenger depending on market alignment):
    • Nissan Original Equipment (OE) Codes: 54501-ED000, 54501-EL000, 54501-EE50A, 54501-1FU0A [1, 2]
  • Right-Hand Side (RH):
    • Nissan Original Equipment (OE) Codes: 54500-ED000, 54500-EL000, 54500-1FU0A, 54500-ED00A [1, 2]
  • Major Premium Aftermarket Matches:
    • Delphi: TC2873 (LH) / TC2874 (RH)
    • A.B.S. Electronics/Mechanical: 211511 [1, 2]
3. Material & Component Architecture
  • Structural Material: High-strength heavy-gauge stamped sheet steel (welded matrix frame structure).
  • Pre-Installed Bushings: High-durability vulcanized natural rubber silent-block bushings (one horizontal pivot bush, one vertical rear compliance bush).
  • Ball Joint Setup: Non-adjustable, pre-greased, sealed low-friction heavy-duty ball joint assembly with integrated neoprene dust boot. [1, 2, 3, 4]
4. Vehicle & Platform Fitment Geometry
  • Chassis Codes Covered: Nissan Tiida Hatchback / Sedan (C11, C11X, SC11, C12).
  • Engine Variant Alignment: 1.5L (HR15DE), 1.6L (HR16DE), 1.8L (MR18DE).
  • Platform Sharing: Completely interchangeable with the Nissan Wingroad (Y12), Bluebird Sylphy (G11), NV200 (M20), and Nissan Cube (Z12) front suspension subframe geometry. [1, 2, 3, 4]

Nissan Xtrail Model NT31 Rear Wheel Hub Bearing

KSh7,000.00
1. Dimensional & Structural Specifications
The NT31 chassis (specifically the 4WD variant) utilizes a complete, integrated wheel hub and bearing assembly (Generation 3 hub unit): [1]
  • Inner Diameter (Spindle Fitment): 26 mm
  • Outer Diameter (Hub Flange): 91 mm (bearing outer diameter) / 147 mm (total flange outer diameter)
  • Total Assembly Height: 94.5 mm
  • Spline/Teeth Count (Drive Axle Entry): 25 teeth (Note: Some aftermarket cross-references measure 24 teeth depending on the exact CV axle manufacturer match, but factory NT31 4WD standard is 25 teeth).
  • Wheel Lug Bolt Pattern: 5 holes / Mounting bores (5 x 114.3 mm Pitch Circle Diameter) [1, 2, 3]
2. OEM Part Numbers & Cross-References
  • Nissan Original Equipment (OE) Codes: 43202-JG200, 43202-JG000, 43202-4BA0B [1, 2]
  • Major Premium Aftermarket Matches:
    • NSK: 53BWKH20
    • SKF: VKBA 3997
    • FAG: 713 6138 10 [1]
3. Material, Sensor & Component Architecture
  • Bearing Construction: Double-row angular contact ball bearing pre-packed with heavy-duty, high-temperature lithium-based grease.
  • ABS Integration: Includes an integrated magnetic encoder ring/tone wheel embedded within the inner oil seal to interface directly with the vehicle’s anti-lock braking system sensor.
  • Sealing: Double-lip rubber contact seals (NBR/Nitrile) on both faces to prevent moisture and road debris contamination.[1]

Nissan Xtrail NT32 Engine Mountain

KSh8,000.00
Engine Mount System Layout
  • Total Number of Mounts: 4 individual mounting points [1]
  • Mount Components:
    • Right-Hand (Passenger Side): Main engine rubber-metal suspended engine mount
    • Left-Hand (Driver Side): Transmission / Gearbox rubber pad mounting
    • Upper Front / Right: Torque strut rod / Torque stabilizer link (prevents engine twisting under acceleration)
    • Rear (Lower): Rear torque support mount / "Dog bone" mount attached to the subframe [1, 2, 3, 4, 5]
  • Mounting Materials: Heavy-duty vulcanized elastomer rubber structurally bonded to cast aluminum and forged steel outer brackets. [1, 2]
Engine Mount Torque Specifications
  • Right-Hand Suspended Mount Bolt (Body Side): 62 Nm (approx. 45 ft-lbs)
  • Right-Hand Suspended Mount Bolt (Engine Side): 62 Nm (approx. 45 ft-lbs)
  • Upper Engine Torque Strut Link Bolts: 75 Nm (approx. 55 ft-lbs)
  • Left-Hand Gearbox Mount (To Bracket): 62 Nm (approx. 45 ft-lbs)
  • Left-Hand Rubber Pad Bolt (To Body): 21 Nm (approx. 15 ft-lbs)
  • Left-Hand Rubber Pad Bolt (To Mounting): 105 Nm (approx. 77 ft-lbs)
  • Transmission Mount Main Stud (Gearbox Side): 180 Nm (approx. 132 ft-lbs)
  • Rear Lower Torque Rod (Engine Tie-Bar Bolt): 180 Nm (approx. 132 ft-lbs) [1, 2]
Supported Engine Specifications (NT32 Core Block - MR20DD)
The NT32 chassis configuration denotes the 4WD version of the T32 X-Trail, which houses the 2.0L MR20DD powertrain: [1, 2]
  • Engine Code: MR20DD
  • Configuration: Inline 4-Cylinder, DOHC, 16 Valves with Twin CVTC
  • Fuel Injection: Direct Fuel Injection (Nissan Di)
  • Displacement: 1,997 cc
  • Cylinder Bore x Piston Stroke: 84.0 mm × 90.1 mm
  • Compression Ratio: 11.2:1
  • Maximum Power: 147 PS (108 kW / ~145 HP) @ 6,000 rpm
  • Maximum Torque: 207 Nm (21.1 kg·m) @ 4,400 rpm

Nissan Note Model E12 Drum

KSh6,500.00
Dimensional & Structural Specifications
  • Inner Brake Drum Diameter: 203 mm (Standard baseline nominal dimension).
  • Maximum Wear/Reboring Limit: 204.5 mm (The drum must be discarded and replaced if the inner surface wears past this diameter).
  • Inner Friction Height (Shoe Contact Width): 50.5 mm to 52 mm.
  • Total Exterior Drum Height: 75 mm to 76 mm.
  • Outer Total Diameter: 234 mm or 244 mm (Depending on the specific sub-trim and brake dust shield casing shape).
  • Bolt Pattern (PCD): 4 x 100 mm (4 lug holes spaced on a 100mm pitch circle).
  • Center Wheel Hub Bore Size: 52 mm to 55 mm.
  • Compatible Rear Brake Shoe Size: 203 mm x 38 mm. [1, 2, 3, 4, 5, 6]
Hydraulic System Configurations
  • Wheel Cylinder Bore Piston Diameter: 19.1 mm.
  • Adjustment System: Mechanical ratchet assembly with automatic self-adjustment activated whenever the parking brake is engaged.
  • ABS Integration: The drum housing sits flush over an integrated tone ring or wheel hub speed sensor assembly depending on whether the wheel bearing is pressed straight into the drum assembly. [1, 2, 3]
Factory Fastener Torque Specifications
Crucial Assembly Rule: When tightening the primary spindle center hub nut to retain the brake drum/bearing layout, you must rotate the brake drum concurrently by hand to prevent damaging the internal bearing shells or crushing the outer races. [1]
Connection Location Metric Spec (N·m) Imperial Spec (ft-lbs)
Main Rear Spindle Center Hub Nut (30mm Axle Socket) 240 N·m 177 ft-lbf
Wheel Lug Nuts (Attaching wheel to drum flange) 114 N·m 84 ft-lbf
Brake Backing Plate to Rear Axle Beam Bolts 55 N·m 41 ft-lbf
Wheel Cylinder Mounting Bolt 10 N·m 7.5 ft-lbf

Nissan Skyline Ex-Japan Shocks

KSh10,000.00
1. Structural & Core Specifications
  • Internal Internal Dampening Technology: Premium Ex-Japan dampers (such as the standard KYB Excel-G or Japanese KYB New SR Special) rely on a low-pressure Nitrogen gas-charged twin-tube system. This design prevents internal oil aeration and fade under high-speed cornering. [1, 2]
  • Mounting Profiles (R33 / R34 platforms as benchmark):
    • Front Mount Type: Top pin threaded adapter (M12x1.25) with a specialized Bottom Clamp / Fork Clevis interface that slides onto the suspension third-link arm.
    • Rear Mount Type: Independent "Top Eye, Bottom Eye" cylindrical bushing loop layout. [1, 2, 3]
  • Dampening Fluid Seal: Multi-lip high-pressure synthetic oil seals bonded with micro-polished chrome piston rods to withstand extreme travel loads. [1]
2. Multi-Link Generation & Drivetrain Variances
When purchasing "Ex-Japan" shocks out of salvage or parts warehouses, you must specify the exact drivetrain configuration:
  • Rear-Wheel Drive (RWD / 2WD - GT, GTS, GT-T): The lower front shock uses an open fork/clevis base that wraps directly around the knuckle linkage. [1]
  • All-Wheel Drive (AWD / 4WD - GT-R, GTS-4): The front shock uses a cylindrical eyelet base instead of a fork to safely clear the front CV half-shafts axle assemblies. The valving profile is significantly stiffer to cope with the heavy RB26DETT/ATTESA E-TS weight footprint. [1]
3. Representative Dimensions & OEM Cross-References
Typical physical constraints for standard R-Chassis 2WD front replacement shocks (e.g., KYB 340000 series) include: [1]
  • Extended Length: ~540 mm to 556 mm
  • Collapsed/Compressed Length: ~383 mm to 388 mm
  • Piston Rod Stroke: ~150 mm to 170 mm
  • Piston Rod Core Diameter: 12 mm to 22 mm heavy-duty shaft
  • Baseline Front OEM Replacement Part Number: 56110-15U02 [1, 2]
4. Factory Torque Specifications
To secure the multi-link shock dampening towers correctly, follow these factory torque settings: [1]
Connection Location Metric Torque (N·m) Imperial Torque (ft-lbs)
Front Strut Top Mount-to-Chassis Body 40–55 N·m 29–40 ft-lbf
Front Shock Base Clevis Bolt-to-Link 39–54 N·m 28–40 ft-lbf
Rear Shock Tower Upper Nuts 16–19 N·m 12–14 ft-lbf
Rear Shock Lower Eyelet Bracket-to-Knuckle 88–108 N·m 65–80 ft-lbf

Nissan Teana Shocks Model J32

KSh7,500.00
1. Front Shock Absorbers (Strut Assembly)
  • Suspension Design: MacPherson Strut setup [1, 2]
  • System Type: Gas Pressure, Twin-Tube (Double Cylinder) [1, 2, 3]
  • Fitting Position: Front Axle (Left and Right side specific) [1]
  • Mounting Type: Top pin/stem mount, Bottom clamp configuration [1, 2]
  • Damping Effect: Single Action / Single Effect damping force [1]
  • Common Aftermarket Part Numbers:
    • Right Hand (RH): KYB 339228, 339146
    • Left Hand (LH): KYB 339229, 339147 [1, 2]
  • Genuine OEM Cross-References: 54302-JN81A, 54302-KA30A, E4302-JN01D [1]
2. Rear Shock Absorbers
  • Suspension Design: Independent Multi-link suspension layout
  • System Type: Gas Pressure, Telescopic Twin-Tube damper
  • Fitting Position: Rear Axle (Left and Right are interchangeable)
  • Mounting Type: Top pin/stem mount, Bottom eye-ring mount
  • Piston Rod Diameter: 12 mm
  • Outer Tube Diameter: 45 mm
  • Stroke/Length Profiles: Max length 359 mm | Min length 253 mm
  • Common Aftermarket Part Number: KYB 348024, TRW JGT960T
  • Genuine OEM Cross-References: E6210JC43A [1, 2, 3, 4, 5]
3. Platform & Powertrain Compatibility
  • Chassis Platform: Nissan J32 / J32R / J32Z series
  • Drivetrain Layouts: Optimized for Front-Wheel Drive (FWD) and All-Wheel Drive (250XL Four / QR25DE) setups
  • Engine Variations: Tuned for the weight distributions of the 2.0L (MR20DE), 2.5L V6 (VQ25DE), and 3.5L V6 (VQ35DE) models
Showing 28 of 89 results
Please select your product
Product has been added to your cart
Compare (0)
