Suzuki Alto 2015-2018 Driveshaft

KSh5,000.00
Core Spline & Toothing Geometry
  • External Toothing (Wheel/Hub Side): 23 teeth
  • External Toothing (Differential Side): 22 teeth
  • Internal Toothing (Inner Wheel-Side CV Joint): 19 teeth (up to 20 teeth on select localized HA36 versions)
  • ABS Tone Ring Tooth Count: 43 teeth [1]
Physical Dimensions & Hardware
  • Overall Length (Left / Short Side Compressed): 638 mm to 662 mm
  • Overall Length (Right / Long Side Compressed): 820 mm to 837 mm
  • Outboard Joint Thread Size (Hub Nut): M18 x 1.5
  • Seal Ring Diameter (Wheel Side): 49 mm
  • Drive Shaft Seal ID (Inner): Left Side: 38 mm | Right Side: 40 mm
  • Joint Configuration: Tripod-type inboard joint with a ball-type outboard CV joint [1, 2, 3]
OEM Part Numbers & Platform Compatibility
  • Front Passenger Side (Left) OEM Numbers: 44102-74P00, 44102-74P02
  • Inner CV Joint OEM Reference: 44117-84330-002
  • Engine & Transmission Pairing: Optimized for 660cc R06A (NA & Turbo) and 1.0L K10B engine configurations matched with CVT, 5-speed Manual, or AGS (Auto Gear Shift) transmissions. [1, 2, 3]
  • Platform Sharing: Components maintain structural layout sharing with matching-era Suzuki Wagon R (MH55S) and Alto Lapin (HE33S) platforms.

Suzuki Alto 2015 Driveshaft

KSh5,000.00
Core Spline & Toothing Geometry
  • External Toothing (Wheel/Hub Side): 23 teeth
  • External Toothing (Differential Side): 22 teeth
  • Internal Toothing (Inner Wheel-Side CV Joint): 19 teeth (varies up to 20 teeth on some HA36 versions)
  • ABS Ring Tooth Count: 43 teeth [1, 2, 3, 4]
Physical Dimensions & Hardware
  • Overall Length (Left / Short Side Compressed): 638 mm to 662 mm
  • Overall Length (Right / Long Side Compressed): 837 mm
  • Outboard Joint Thread Size (Hub Nut): M18 x 1.5
  • Seal Ring Diameter (Wheel Side): 49 mm
  • Drive Shaft Seal ID (Inner): Left Side: 38 mm | Right Side: 40 mm
  • Joint Configuration: Tripod-type inboard joint with a ball-type outboard CV joint. [1, 2, 3, 4]
OEM Part Numbers & Compatibility
  • Front Passenger Side (Left) OEM Numbers: 44102-74P00, 44102-74P02
  • Inner CV Joint OEM Reference: 44117-84330-002
  • Platform Sharing: Components maintain structural layout sharing with matching-era Suzuki Wagon R (MH55S) and Alto Lapin (HE33S) platforms.[1, 2]

Suzuki Alto Model 2016 Lower Control Arm

KSh5,000.00
OEM Part Numbers
  • Japan-market/HA36 Generation:
    • Front Right Side (RHS): 45201-74P10 / 45201-74P00
    • Front Left Side (LHS): 45202-74P10 [1]
  • Export-market/GF Generation (1.0L K10B):
    • Front Right Side (RHS): 45201M68K00
    • Front Left Side (LHS): 45202M68K00 [1, 2]
Dimensional Specifications
  • Total Length: 281.2 mm (Note: Select international 1.0L variations feature an extended profile up to 460 mm)
  • Overall Height: 81 mm
  • Ball Pin / Joint External Thread: M12 x 1.25
  • Fitted / Cone Stud Diameter: 13.5 mm to 15 mm
  • Bushing Inner/Bore Diameter: 12 mm [1, 2, 3, 4]
Material & Build Properties
  • Structural Material: Heavy-duty stamped sheet steel (Premium aftermarket options utilize high-tensile forged steel).
  • Pre-assembled Components: Integrated natural rubber silent-block bushings and pre-greased, sealed lower ball joint assembly.
  • Surface Coating: Anti-corrosion electro-deposition paint (E-coating) or black powder coat finish.
  • Average Weight: 1.05 kg – 1.15 kg per side. [1, 2]

Suzuki Alto Model 2017 Lower Control Arm

KSh5,000.00
OEM Part Numbers
  • Front Right Side (RHS): 45201-74P10 / 45201-74P00
  • Front Left Side (LHS): 45202-74P10 [1, 2]
Dimensional Specifications
  • Total Length: ~281.2 mm to 282 mm
  • Overall Height: 81 mm
  • Ball Pin / Joint External Thread: M12 x 1.25
  • Cone / Ball Joint Stud Size: 13.4 mm to 15 mm
  • Inner/Bore Diameter (Bushing Sleeve): 12 mm to 14 mm [1, 2, 3, 4]
Material & Build Properties
  • Structural Material: Heavy-duty stamped/sheet structural steel (select premium variants use forged steel).
  • Component Assembly: Pre-installed premium natural rubber silent-block bushings and integrated lower ball joint mount.
  • Coatings: Anti-corrosion electro-deposition paint (E-coating) or black oxide layer finish.
  • Average Weight: 1.05 kg – 1.15 kg per side. [1, 2, 3, 4, 5]

Suzuki Alto Model 2018 Lower Control Arm

KSh5,000.00
Component Overview & Dimensions
  • Component Type: Front Suspension Lower Control Arm (A-Arm / Wishbone).
  • Material Composition: Stamped high-strength sheet steel.
  • Control Arm Type: Trailing link configuration with integrated ball joint and rubber silent-block bushings.
  • Dimensional Profile:
    • Center-to-Center Length: Approximately 281.2 mm.
    • Overall Height: 81.0 mm.
    • Ball Joint External Stud Thread: M12 x 1.25.
    • Inner Bushing Sleeve Diameter: 12.0 mm. [1]
Part Numbers & Factory Designations
  • Front Right Hand (RH) OEM Reference: 45201-74P10 (Alternative factory supersede: 45201-74P00).
  • Front Left Hand (LH) OEM Reference: 45202-74P10 (Alternative factory supersede: 45202-74P00).
  • Interchange Aftermarket ID: 273C0853 (Ridex). [1, 2, 3, 4]
Platform & Vehicle Compatibility
  • Chassis Platform / Generation: Suzuki HA36 Platform (8th Generation Alto).
  • Applicable Model Codes: HA36S, HA36V (including standard JDM versions, Alto Works, and Alto Turbo RS).
  • Cross-Brand Shared Footprint: Swaps its exact geometric layout and mounting pattern with the Suzuki Alto Lapin (HE33S), Suzuki Wagon R (MH35S/MH55S), Suzuki Hustler (MR52S), and Mazda Carol (HB36S). [1, 2]
Fastener Tightening Torque Specifications
  • Inner Pivot/Frame Horizontal Bolt (Control arm front nut): 55 Nm to 70 Nm {41 to 52 ft-lbs}.
  • Rear Vertical Bushing Clamp Mounting Nut: 70 Nm to 85 Nm {52 to 63 ft-lbs}.
  • Ball Joint Pinch Bolt to Steering Knuckle: 45 Nm to 55 Nm {33 to 40 ft-lbs}.
  • Stabilizer/Sway Bar Link to Control Arm Connecting Nut: 30 Nm to 40 Nm.

Suzuki Alto Model 2018 Rear Drum

KSh6,500.00
1. Dimensional Specifications
  • Inner Drum Diameter (Working Friction Surface): 180.0 mm
  • Maximum Wear/Reboring Limit (Discard Diameter): 182.0 mm
  • Outer Brake Drum Diameter: 208.0 mm
  • Inner Brake Drum Width / Working Depth: 34.6 mm to 35.0 mm
  • Total Component Height (Overall Thickness): 63.0 mm
  • Centering / Center Bore Diameter: 52.1 mm [1]
2. Wheel Lug Bolt Pattern & Mounting
  • Number of Holes: 4 holes
  • Pitch Circle Diameter (PCD): 4 x 100 mm
  • Hub Bolt Circle (Bore) Diameter: 12.0 mm [1]
3. OEM Part Numbers & Cross-References
  • Suzuki Original Equipment (OE) Codes: 43511-74P00 (Standard Japanese Domestic Market HA36 platform code), 43511-68K00 / 43511-76G50 [1, 2]
  • Major Premium Aftermarket Matches:
    • Blue Print: ADK84709 or ADK84713
    • TRW: DB4424
    • Bosch: 0 986 477 263
    • Maxgear: 19-2625 [1, 2]
4. Architecture & Engineering Layout
  • Drivetrain Position: Rear Axle Only
  • Material Composition: High-thermal cast grey alloy iron
  • Design Type: Integral wheel hub carrier assembly casing (machined outer shell containing the inner hub profile, structurally designed without pre-pressed wheel bearings or pre-fitted wheel studs).
  • Braking System Type: Mechanical leading-trailing shoe setup activated by a dual-piston hydraulic rear wheel cylinder.[1, 2]

Suzuki Alto Model 2017 Rear Drum

KSh6,500.00
1. Dimensional Specifications
  • Inner Drum Diameter (Friction Surface): 180.0 mm
  • Maximum Wear/Reboring Limit (Discard Diameter): 182.0 mm
  • Outer Brake Drum Diameter: 208.0 mm
  • Inner Brake Drum Width / Working Depth: 34.6 mm to 35.0 mm
  • Total Component Height (Overall Thickness): 63.0 mm
  • Centering / Center Bore Diameter: 52.0 mm to 52.1 mm [1, 2, 3, 4]
2. Wheel Lug Bolt Pattern & Mounting
  • Number of Holes: 4 holes
  • Pitch Circle Diameter (PCD): 4 x 100 mm
  • Hub Bolt Hole Diameter: 12.0 mm [1, 2]
3. OEM Part Numbers & Cross-References
  • Suzuki Original Equipment (OE) Codes: 43511-74P00 (HA36 platform standard), 43511-68K00 / 43511-76G50 (Cross-over compatibility codes) [1, 2]
  • Major Premium Aftermarket Matches:
    • Blue Print: ADK84709 or ADK84713
    • TRW: DB4424
    • Bosch: 0 986 477 263 [1, 2]
4. Architecture & Engineering Layout
  • Drivetrain Position: Rear Axle Only
  • Material Composition: High-thermal cast grey alloy iron.
  • Design Type: Integral wheel hub carrier assembly casing (machined outer shell containing the inner hub profile, structurally designed without pre-pressed wheel bearings or pre-fitted wheel studs).
  • Braking System Type: Mechanical leading-trailing shoe setup activated by a hydraulic rear wheel cylinder.

Suzuki Alto Model 2016 Rear Drum

KSh6,500.00
1. Dimensional Specifications
  • Inner Drum Diameter (Working Surface): 180.0 mm
  • Maximum Wear/Reboring Limit (Discard Diameter): 182.0 mm
  • Outer Brake Drum Diameter: 208.0 mm
  • Inner Brake Drum Width / Depth: 35.0 mm
  • Total Component Height (Thickness): 63.0 mm
  • Centering/Center Bore Diameter: 52.0 mm to 52.1 mm [1, 2]
2. Wheel Lug Bolt Pattern & Mounting
  • Number of Holes: 4 holes
  • Pitch Circle Diameter (PCD): 4 x 100 mm
  • Hub Bolt Circle (Bore) Diameter: 12.0 mm [1, 2]
3. OEM Part Numbers & Cross-References
  • Suzuki Original Equipment (OE) Codes: 43511-74P00 (Main code for HA36 platform), 43511-76G50 / 43511-68K00 (GF platform cross-over) [1, 2, 3]
  • Major Premium Aftermarket Matches:
    • Blue Print: ADK84709 or ADK84713
    • TRW: DB4424
    • Bosch: 0 986 477 263 [1, 2]
4. Architecture & Engineering Layout
  • Drivetrain Position: Rear Axle
  • Design Type: Integral wheel hub carrier assembly casing (cast high-thermal grey alloy iron structure without wheel bearings/studs pre-pressed).
  • Braking System Type: Mechanical leading-trailing drum configuration expanding outward via dual-piston rear hydraulic brake cylinders. [1, 2, 3]

Suzuki Alto Model 2015 Rear Drum

KSh6,500.00
1. Dimensional Specifications
    • Inner Drum Diameter (Working Surface): 180.0 mm
    • Maximum Wear/Reboring Limit (Discard Diameter): 182.0 mm
    • Outer Brake Drum Diameter: 208.0 mm
    • Inner Brake Drum Width / Depth: 35.0 mm
    • Total Component Height (Thickness): 63.0 mm
    • Centering/Center Bore Diameter: 52.0 mm [1]
2. Wheel Lug Bolt Pattern & Mounting
    • Number of Holes: 4 holes
    • Pitch Circle Diameter (PCD): 4 x 100 mm
    • Hub Bolt Circle (Bore) Diameter: 12.0 mm [1]
3. OEM Part Numbers & Cross-References
    • Suzuki Original Equipment (OE) Numbers: 43511-76G50, 43511-76G00, 43511-72M00 [1, 2]
    • Major Premium Aftermarket Matches:
        • Blue Print: ADK84709
        • TRW: DB4304B
        • A.B.S.: 2755-S [1]
4. Architecture & Engineering Layout
  • Drivetrain Position: Rear Axle
  • Design Type: Integrated drum assembly designed with an inner cavity to accept the rear wheel bearing unit setup.
  • Braking System Type: Leading-trailing drum brake configuration, driven by dual-piston rear wheel hydraulic cylinders.[1, 2, 3]

Suzuki Alto Model 2014 Rear Drum

KSh6,500.00
1. Dimensional Specifications
  • Inner Drum Diameter (Working Surface): 180.0 mm
  • Maximum Wear/Reboring Limit (Discard Diameter): 182.0 mm
  • Outer Brake Drum Diameter: 208.0 mm
  • Inner Brake Drum Width / Depth: 34.6 mm to 35.0 mm
  • Total Component Height (Depth): 63.0 mm
  • Centering/Center Bore Diameter: 52.0 mm [1, 2]
2. Wheel Lug Bolt Pattern & Mounting
  • Number of Holes: 4 holes
  • Pitch Circle Diameter (PCD): 4 x 100 mm
  • Bore Diameter: 12.0 mm [1]
3. OEM Part Numbers & Cross-References
  • Suzuki Original Equipment (OE) Numbers: 43511-76G00, 43511-76G50 [1]
  • Major Premium Aftermarket Matches:
    • Blue Print: ADK84709
    • Delphi: BF584
    • Ridex: 123B0045 [1, 2]
4. Architecture & Engineering Layout
  • Drivetrain Position: Rear Axle only.
  • Design Type: Integral wheel hub design (the brake drum casing houses the outer wheel hub, built to fit directly over the rear spindle setup).
  • Braking System Type: Standard dual-circuit hydraulic drum brake utilizing leading and trailing brake shoe architecture.

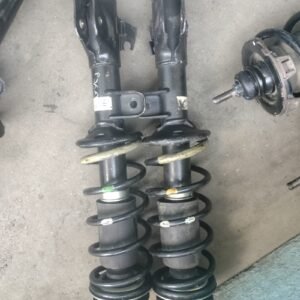

Suzuki Alto Model 2018 Front Shocks

KSh5,000.00

Product Description: Suzuki Alto / Alto Works / Alto Turbo RS (HA36S & HA36V Chassis, 2014–2021 / 2018 Model Year) Complete Front Shock Absorber Set

Overview

The Front Shock Absorber Set for the 2018 Suzuki Alto (HA36S 2WD & HA36V Van / 4WD Chassis, 8th Generation 2014–2021 with 660cc R06A Naturally Aspirated & Turbocharged Powertrains) is an OEM-spec, gas-pressurized front strut replacement set engineered to restore light, responsive steering control, eliminate nose-diving, and absorb harsh urban road impacts. Specially calibrated for the lightweight, high-rigidity HEARTECT platform architecture of the HA36 Suzuki Alto, these twin-tube dampers restore factory ride stability and cornering balance.

Technical Specifications & Characteristics

  • Vehicle Compatibility:

    • 8th Generation Suzuki Alto: HA36S (2WD Passenger / Works / Turbo RS) & HA36V (2WD / 4WD Commercial Van) (2014–2021 / 2018 Model Year) (Also cross-fits twin platform Mazda Carol HB36S).

  • Position: Front Axle (Left Front LH & Right Front RH specific).

  • Operating System: Twin-Tube Low-Pressure Nitrogen Gas-Charged Hydraulic Struts.

  • Damping Medium: High-viscosity all-weather synthetic hydraulic fluid charged with nitrogen gas to prevent fluid foaming, internal aeration, and thermal performance fade during daily urban driving.

  • Build Quality: High-tensile seamless steel body cylinder, micro-polished induction-hardened chrome piston rod, and multi-lip NOK fluid seals to eliminate oil leaks.

  • Mounting Configuration: Direct factory bolt-on fitment attaching to upper strut top mounts, lower steering knuckle clevis bolts, stabilizer link brackets, and brake hose/ABS sensor wiring clips.

Key Features & Performance Benefits

  1. Stops Front-End Nose-Diving & Pitching: Restores firm front rebound control, eliminating forward pitching under braking and controlling body lean through tight turns.

  2. Absorbs Potholes & Rough Road Chatter: Dampens sharp pavement chatter, expansion joints, and speed humps, preserving a comfortable ride for driver and front passenger.

  3. Restores Precise Steering & Wheel Alignment: Holds front camber and toe angles steady under dynamic travel, protecting front tires from patchy tread cupping and uneven shoulder wear.

  4. Reinforced Lower Knuckle Brackets: Heavy-duty lower clevis brackets withstand severe road impacts and maintain rigid steering geometry alignment.

Variant & Fitment Notes (2WD HA36S vs. 4WD HA36V / Standard vs. Works Turbo RS)

Important: While standard HA36S Alto 2WD models share identical front strut body dimensions, 4WD variants and performance-oriented Alto Turbo RS / Alto Works models feature firmer damper valving and altered spring seat heights:

  • Standard 2WD (HA36S / HA36V) OEM Reference:

    • Front Right (RH) Strut: 41601-74P00, 41601-74P10, 41601-74P01

    • Front Left (LH) Strut: 41602-74P00, 41602-74P10, 41602-74P01

  • Alto Turbo RS / Works (HA36S Sport Trim) OEM Reference:

    • Front Right (RH) Strut: 41601-74P50, 41601-74P60

    • Front Left (LH) Strut: 41602-74P50, 41602-74P60

  • Popular Aftermarket Brands: KYB (Excel-G / New SR Special NST5628R/L for HA36S), Tokico, Monroe OESpectrum, GAB, Febest, and SenSen.

Suzuki Wagon R Wheel Hub Bearing

KSh4,000.00
Front Axle Wheel Bearing Specifications
  • Bearing Design Style: Generation 1 (Gen 1) Double-Row Angular Contact Ball Bearing (Sealed, pre-greased, press-in configuration). [1, 2]
  • Core Dimensions (Standard K-Car / MH / Wagon R+ Generations):
    • Inner Diameter (ID): 35.0 mm (Note: Specific older 1.2L Wagon R+ European versions utilize a 42.0 mm ID).
    • Outer Diameter (OD): 61.8 mm (42mm ID variants utilize an 82.0 mm OD).
    • Width / Thickness: 40.0 mm (42mm ID variants utilize a 36.0 mm width). [1, 2]
  • Part Interactivity: Fits symmetric left and right steering knuckles.
  • ABS Integration: Available as standard passive sealed or featuring a built-in magnetic multi-pole ABS encoder ring on the inner seal face, depending on the manufacturing year and trim. [1, 2]
  • Standard Mass / Weight: ~0.43 kg. [1]
Rear Axle Wheel Hub & Bearing Specifications
  • Bearing Design Style: Hub Unit I (Internal double-row setup or integrated wheel hub assembly depending on chassis configuration, e.g., MH21S, MH34S, MH44S). [1, 2]
  • Core Dimensions (Standard Wagon R / Stingray Variations):
    • Inner Diameter (ID): 25.0 mm
    • Outer Diameter (OD): 52.0 mm
    • Width / Thickness: 42.0 mm [1]
  • Wheel Lug Mounting (Flange Type Hubs):
    • Bolt Pattern / PCD: 4 x 100 mm
    • Centering Pilot Diameter: 54.0 mm [1]
  • Total Component Weight: ~0.37 kg [1]
Fastener & Torque Specifications
  • Main Front Axle Center Hub Nut Torque: 175 Nm to 210 Nm (Approx. 129–155 ft-lbs) — Must be torqued to spec while the vehicle is lifted to set the correct non-adjustable internal bearing preload.
  • Rear Axle Hub Nut Torque:
    • For Drum/Spindle Setup: 180 Nm (Approx. 132 ft-lbs)
    • For R+ High-Load Rear Variations: Up to 325 Nm [1]
  • Wheel Lug Nuts (Road Wheel to Hub): 85 Nm to 95 Nm (Approx. 63–70 ft-lbs). [1, 2]
  • Internal Structural Bearing Tolerances: Acceptable factory end play is 0.001 to 0.005 inches (0.025 to 0.127 mm) maximum.

Suzuki Swift Model 2018 Engine Mountain

KSh8,000.00
Component & Material Specifications
  • Right Hand (RH) Engine Mount (Timing Belt/Chain Side):
    • Type: Hydraulic (Hydro-filled) dampening insulator.
    • Function: Isolates high-amplitude vibrations, which is highly critical on the 3-cylinder K10C models to prevent rough idling resonance from vibrating the cabin.
    • Housing Material: High-pressure die-cast aluminum alloy bracket with structural steel base plates.
  • Left Hand (LH) Transmission Mount (Gearbox Side):
    • Type: Rubber-metal bonded cushion insulator.
    • Function: Suspends the 5-speed manual, 6-speed automatic, or CVT gearbox directly to the frame rail.
  • Rear Torque Rod (Lower Engine Pitch Stopper):
    • Type: "Dog-bone" style anchor bracket with high-durometer rubber bushings.
    • Function: Restricts front-to-back engine twisting (torque reaction) during quick acceleration and heavy braking.
Genuine Suzuki OEM Part Numbers
Part configurations differ slightly between standard hatchbacks and the Swift Sport. The core reference numbers for the standard 2018 platform include:
  • Right Hand (RH) Engine Mount Assembly: 11610-52R00 / 11610-68R00
  • Left Hand (LH) Gearbox Mount Assembly: 11620-52R00 / 11620-68R10
  • Rear Lower Torque Rod / Stopper: 11710-52R00
Factory Fastener Torque Specifications
Note: To avoid twisting the internal rubber matrices out of their neutral seat, the engine block must be safely supported with a screw jack, and the chassis must be sitting level before bringing the primary bracket through-bolts up to final torque.
Fastener Connection Profile Metric Spec (N·m) Imperial Spec (ft-lbs)
RH Engine Mount Central Through-Bolt (to Engine Bracket) 85 N·m 63 ft-lbf
RH Mount-to-Chassis Frame Bolts 50 N·m 37 ft-lbf
LH Transmission Mount Center Nut/Bolt 80 N·m 59 ft-lbf
Rear Torque Rod Through-Bolts (Subframe to Transmission) 90 N·m 66 ft-lbf

Suzuki Solio Gear Box Mountain

KSh45,000.00
Structural & Material Specifications
  • Mounting Configuration: 3-Point multi-mount dampening system (Left Gearbox Mount, Right Engine Mount, Rear Torque Mount). [1]
  • Body Material: Stamped structural carbon steel plate or die-cast aluminum housing bracket assembly.
  • Dampening Compound: High-density, natural rubber elastomer (or upgraded aftermarket hardened rubber) bonded directly onto the inner sleeve matrix to handle rotational torque. [1, 2]
  • Operational Hardness: Engineered to meet standard Shore A hardness levels (55–65 Durometer) to maximize energy dissipation without generating interior resonance or cabin noise.
Generation-Specific Layouts & OEM Part Numbers
First Generation (2000–2010: Wagon R Solio — MA34S / MA64S)
  • Platform Info: Paired alongside the 1.3L M13A engine and a traditional 4-speed automatic transmission (4AT). [1, 2]
  • Gearbox Mount Type: Standard cylindrical rubber-metal bracket mount. [1]
  • Common OEM Part Numbers:
    • 11620-75F00 (Left Transmission Mount Core)
    • 11710-75F00 / 11710-78F11 (Rear Firewall Support Anchor) [1, 2]
Second & Third Generation (2011–2020: MA15S, MA26S, MA36S, MA46S)
  • Platform Info: Re-engineered for the fuel-efficient K12B/K12C engines mated to a high-efficiency CVT or Mild Hybrid powertrain. The gearbox housing mount was enlarged to account for the unique weight distribution of the CVT casing. [1, 2, 3]
  • Gearbox Mount Type: Dual-stage heavy-duty rubber insulator dampener.
  • Common OEM Part Numbers:
    • 11620-54M00 (Left Hand Gearbox / Transmission Support)
    • 11710-54MJ0 (Rear Lower Torque Stopper)
    • 11610-81P21 (RH Primary Companion Engine Mount) [1, 2]
Standard Tightening Torque Specifications
To secure the transmission housing safely onto the frame rail, the fasteners require precise progressive torquing:
Connection Location Metric Spec (N·m) Imperial Spec (ft-lbs)
Gearbox Mount Central Thru-Bolt (Mount to Bracket) 85 N·m 63 ft-lbf
Chassis Frame Mounting Bolts (Mount to Subframe) 55 N·m 41 ft-lbf
Transmission Bracket Bolts (Bracket to Gearbox Casing) 60 N·m 44 ft-lbf
Rear Lower Torque Bracket Bolt 90 N·m 66 ft-lbf

Suzuki Swift Model 2018 Shock Absorber

KSh10,000.00
Component & Sizing Specifications
The factory front lower control arms use a integrated layout where the ball joint is pressed directly into the arm assembly.
  • Material Construction: Heavy-gauge stamped sheet steel.
  • Dimensions & Physical Profiles:
    • Inner Flange Length: ~336 mm
    • Outer Pivot Length: ~374 mm
    • Ball Joint Stud Joint Diameter: 20 mm
    • Small Front Bushing Hole: 16.2 mm diameter (Outer diameter: 53 mm)
    • Large Rear Bushing Hole: 23.3 mm diameter (Outer diameter: 82 mm)
  • Bushing Layout: Features a small front horizontal bushing and a large, vertically oriented rear cylindrical rubber dampening bushing designed to isolate high-amplitude road shocks and harshness.
Genuine Mazda OEM Part Numbers
Part numbers vary slightly depending on the build origin (Japan vs. Mexico plants) and drivetrain (FWD vs. AWD). The base numbers for the complete front arm assemblies include the ball joint and pre-installed bushings.
  • Front Right (RH) Lower Control Arm Assy: KD35-34-300P / KD35-34-300T (Supersedes previous revisions ending in D, E, F, G, H, J, L, R, S).
  • Front Left (LH) Lower Control Arm Assy: KD35-34-350T / KA0G-34-350.
  • Front Small Bushing Only: TK48-34-470A.
  • Front Mounting Pivot Bolt: 9YA0-21-603C.
Factory Torque Specifications
Important: To protect the inner rubber elements from tearing prematurely, you must pre-load the suspension using a jack to mimic the vehicle resting at normal ride height on its wheels before applying the final torque to the subframe pivot bolts.
Fastener Connection Location Metric Spec (N·m) Imperial Spec (ft-lbs)
Front Pivot Horizontal Bolt (to Subframe) 244 N·m 180 ft-lbf
Rear Bushing Vertical Mount Bolts (2 per arm) 149 N·m 110 ft-lbf
Ball Joint Stud Pinch Nut/Bolt (to Steering Knuckle) 40 N·m 30 ft-lbf

Alto 2017 GearBox Mountain

KSh5,000.00
1. Global / Indian Market Variant (Alto K10 2nd Gen)
This variant utilizes a 3-point powertrain mounting structure supporting the 1.0L K10B engine layout. [1, 2]
  • System Layout: 3-Point Structural Isolation (1 Front-Right Engine, 1 Front-Left Gearbox, 1 Rear Torque Stabilizer).
  • Gearbox Mount Position: Front-Left Axle Side (LH Mounting). [1, 2]
  • Mounting Type: Heavy-duty rubber-metal bond matrix. [1, 2]
  • Body / Housing Material: Structural Die-Cast Aluminum alloy housing with high-density vulcanized rubber isolators. [1, 2]
  • Mounting Style: Bolt-on configuration. [1]
  • Primary Function: Isolates cyclic transmission resonance and load-reversal deflection during manual or AMT (Auto Gear Shift) gear changes. [1]
  • Genuine OEM Part Numbers:
    • Left Hand (LH) Gearbox Mount: 11620M67P00
    • Rear Engine/Transmission Torque Mount: 11710M65L00 [1, 2, 3]
2. Japanese Domestic Market (JDM) Variant (Alto HA36S / HA36V)
This variant supports the 658cc R06A naturally aspirated or turbocharged powertrain layout coupled to a CVT, Manual, or 5-speed AGS gearbox. [1, 2]
  • System Layout: Multi-point lightweight NVH (Noise, Vibration, and Harshness) dampening suspension.
  • Gearbox Mount Position: Transmission-side frame rail (Left-Hand Side).
  • Mounting Type: Steel or Aluminum bracket shell featuring high-elasticity elastomer damping blocks designed for micro-car weight limits. [1]
  • Average Component Weight: ~0.55 kg to 0.85 kg (dependent on specific AGS vs. manual chassis specification).
  • Genuine OEM Part Numbers:
    • LH Transmission Bracket / Mount: 11620-74P00 (Base manual/AGS platform layout series)
    • Rear Torque Support Rod: 11710-74P00

Suzuki Alto Model 2015 Rear Shock

KSh3,500.00
1. Damping Architecture & Performance Mechanics
  • System Design Type: Gas-Pressurized Telescopic Hydraulic Damper
  • Damping Design: Twin-tube double-acting low-pressure hydraulic system
  • Fitting Position: Rear Axle (Symmetric construction; Left-Hand and Right-Hand units are mechanically interchangeable)
  • Functional Intent: Controls vehicle pitch and eliminates high tire bounce on ultra-light chassis profiles (sub-700 kg vehicle curb weight)
2. Mounting Configuration & Structural Connections
  • Upper Mounting Connection: Stem / Pin top end featuring a threaded stud assembly complete with two vulcanized rubber isolation cushions, retaining washers, and locking nuts.
  • Lower Mounting Connection: Closed metal eyelet ring containing a factory pre-pressed steel-sleeved horizontal natural rubber bushing.
  • Chassis Series Compatibility: HA36S, HA36V (Fits standard 2WD and 4WD configurations, though valving rates vary slightly between drivetrain packages)
3. Genuine OEM & Aftermarket Part Numbers
  • Genuine Suzuki OEM Part Numbers: 41800-74P00, 41800-74P10, 41800-74P01
  • Aftermarket Cross-References: KYB Excel-G / Gas-A-Just Series (Part Numbers: 3420011 / 3430013 depending on specific suspension travel calibration)
4. Metallurgical & Component Composition
  • Piston Rod Build: Induction-hardened carbon steel rod core finished with an anti-friction, mirror-smooth hard chrome plating layer to extend oil seal lifespan.
  • Gas Media: Low-pressure Nitrogen gas (N₂) injection to continuously suppress hydraulic oil foaming, aeration, and thermal fade under continuous travel cycles.
  • Fluid Seal: High-integrity multi-lip synthetic nitrile rubber pressure seal paired with an integrated external dust/grit wiper ring.
  • Surface Coating: Finished with an anti-corrosion black electrophoresis paint layer to shield the damper outer tube from road debris, moisture, and rust.

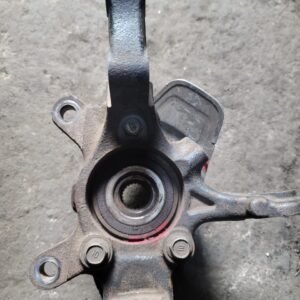

Suzuki Alto Model 2017 Wheel Hub Bearing

KSh4,500.00
Front Wheel Hub Bearing Specifications
  • Bearing Design Architecture: Double-row angular contact ball bearing (Generation 1 cartridge style). [1]
  • Dimensions & Fitment Matrix:
    • Inner Diameter (d): 35.00 mm
    • Outer Diameter (D): 62.00 mm
    • Total Width (W): 40.00 mm [1, 2]
  • Braking Dynamics Integration: Fits models with or without Anti-lock Braking System (ABS) dependent on regional trim variants. [1, 2]
  • Genuine OEM Part Numbers: 43440-58J00, 43401-64L00 (Hub Set), 43401-74P00. [1, 2, 3]
  • Aftermarket Cross-References: SKF (VKBA 3965), SWAG (84 93 1342), SO.HQ 43401-64L00 Set. [1, 2, 3]
Rear Wheel Hub Bearing Specifications
  • Bearing Design Architecture: Single-row or integrated double-row tapered/ball configurations depending on 2WD vs. 4WD layouts. [1, 2]
  • Dimensions & Fitment Matrix (Standard 2WD):
    • Inner Diameter: 25.00 mm
    • Outer Diameter: 52.00 mm
    • Total Width: 42.00 mm [1]
  • Genuine OEM Part Numbers: PW25520042CS. [1]
  • Aftermarket Cross-References: RIDEX (654W0474), FEBI BILSTEIN (31341). [1]
Material & Metallurgical Composition
  • Core Material Element: High-cleanliness, induction-hardened chromium steel (Gcr15 structural grade) ensuring wear thresholds against load cycles. [1]
  • Internal Seal Matrix: Nitrile butadiene rubber (NBR) multi-lip dual-shield system preventing abrasive dirt intrusion and moisture breakdown. [1]
  • Lubrication Element: Factory-packed with premium lithium-complex high-temperature grease.

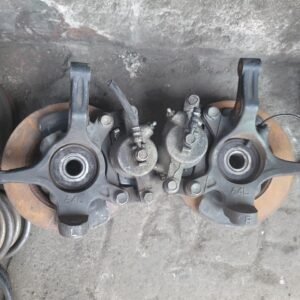

Suzuki Wagon R Wheel Hub Bearing

KSh4,500.00
Front Wheel Hub & Bearing Specifications (Press-In Split Type)
  • Bearing Style: Generation 1 Press-In Sealed Double-Row Angular Contact Ball Bearing. The standalone driven hub flange presses into the steering knuckle-seated bearing.
  • Integrated Sensor Technology: Features an integrated magnetic multi-pole ABS encoder ring built directly into the inner rubber oil seal face on one side of the bearing.
  • Axle Location: Front Axle (Symmetric Left / Right configuration).
  • Front Bearing Core Dimensions: Inner Diameter: 35.0 mm | Outer Diameter: 64.0 mm | Width / Thickness: 37.0 mm.
  • Wheel Lug Pattern Configuration: 4 Holes.
  • Pitch Circle Diameter (PCD): 4 x 100 mm.
  • Centering / Hub Pilot Outer Diameter: 54.0 mm.
  • Internal Drive Splines: 23 Internal Teeth (interfacing with the outer CV joint axle stub).
  • Suzuki Genuine Factory OEM Part Numbers: 43440-58J00, 43440-78A20, 43440-84F00.
  • Major Aftermarket Cross-References: NSK 35BWD24, GMB GH30330, Koyo DAC35640037.
Rear Wheel Hub & Bearing Unit Specifications (2WD Models)
  • Design Configuration: Built directly into the Rear Brake Drum assembly (Generation 1 sealed press-in bearing integrated inside the brake drum center cavity, spinning on a non-driven spindle shaft stud).
  • Axle Position: Rear Axle (Symmetric Left / Right mounting geometry).
  • Wheel Lug Arrangement: 4 Holes.
  • Rear Pitch Circle Diameter (PCD): 4 x 100 mm.
  • Rear Bearing Core Dimensions: Inner Diameter: 25.0 mm | Outer Diameter: 52.0 mm | Width / Thickness: 43.0 mm.
  • Material Composition: Forged grey alloy iron drum base matching induction-hardened GCr15 High-Carbon Chromium Bearing Steel internals.
  • Suzuki Genuine Factory OEM Part Numbers (Rear): 46860-76G00, 46860-76G04, 46860-60G00.
  • Major Aftermarket Cross-References (Rear): NSK 25BWD01, Koyo DAC25520043, Febest DAC25520043-KIT.

Suzuki Alto Model 2018 Brake Discs

KSh3,000.00
Front Brake Disc Dimensions & Geometry
  • Outer Diameter (Ø): 231.0 mm (Standard HA36 series).
  • Nominal Thickness: 17.0 mm (Standard models) or 20.0 mm (Turbo RS / Works / high-trim configurations).
  • Minimum Thickness / Wear Limit: 15.0 mm (for 17mm nominal discs) or 18.0 mm (for 20mm nominal discs). Discard and replace immediately if worn below these limits.
  • Total Structural Height: 49.1 mm to 51.4 mm.
  • Centering / Pilot Bore Diameter: 60.0 mm.
  • Material Composition: High-carbon grey cast iron metallurgy for optimal thermal resistance. [1, 2, 3, 4, 5, 6, 7, 8]
Wheel Mount & Hub Interface
  • Lug Bolt Hole Arrangement: 4 Holes.
  • Pitch Circle Diameter (PCD): 4 x 100 mm.
  • Wheel Bolt Bore Diameter: 12.6 mm to 12.7 mm. [1, 2, 3]
Factory OEM & Aftermarket Cross-Reference Numbers
  • Suzuki Genuine Factory OEM Part Roots: 55311-67H11, 55311-M68K10, 55311-75F10, 55311-A65L10. [1, 2]
  • Major Aftermarket Technical Cross-References:
    • Bosch Code: 0 986 479 778.
    • Brembo Reference: 09.5857.14.
    • Blue Print Reference: ADK84314 / ADK84332.
    • TRW Code: DF7389. [1, 2, 3]

Suzuki Alto 2015 Wheel Hub

KSh4,000.00
Front Wheel Hub & Bearing Specifications (7th Generation / HA36 Series)
  • Design Layout: Combined Generation 1 Press-In double-row angular contact sealed ball bearing pressed into a standalone forged hub flange.
  • Integrated Sensor Technology: Features a magnetic ABS sensor encoder ring built directly into the inner oil seal face (must be pressed in facing inward toward the knuckles).
  • Axle Location: Front Axle (Left / Right symmetric configuration).
  • Outer Hub Flange Diameter: 114.0 mm.
  • Wheel Lug Pattern Configuration: 4 Holes.
  • Pitch Circle Diameter (PCD): 4 x 100 mm.
  • Centering / Hub Pilot Outer Diameter: 54.0 mm.
  • Internal Drive Splines: 23 Internal Teeth (on standard 2WD HA36S variants) or 24 Internal Teeth (on specialized 4WD or Turbo RS/Worko HA36S variants).
  • Genuine Suzuki OEM Numbers: 43401-74P00, 43401-74P01, 43401-50M00 (Bearing kit: 43440-50M00, 43440-74P00).
  • Major Aftermarket Cross-References: NSK 35BWD28, GMB GH33030, JIKIU HW22026.
Rear Wheel Hub & Bearing Specifications (Integrated Rear Drum Layout)
  • Design Configuration: Built directly into the Rear Brake Drum assembly (Generation 1 sealed press-in bearing integrated directly inside the brake drum cavity, turning on a non-driven spindle shaft).
  • Axle Position: Rear Axle (Symmetric Left / Right mounting geometry).
  • Wheel Lug Arrangement: 4 Holes.
  • Rear Pitch Circle Diameter (PCD): 4 x 100 mm.
  • Inner Hub Bearing Bore Steps: Inner Diameter: 25.0 mm | Outer Diameter: 52.0 mm | Height/Thickness: 43.0 mm.
  • Material Composition: Forged grey alloy iron drum base matching induction-hardened GCr15 High-Carbon Chromium Bearing Steel internals.
  • Genuine Suzuki OEM Numbers (Rear): 43511-74P00, 43511-50M10, 43511-68K00 (Bearing component: 46860-50M00).
  • Major Aftermarket Cross-References (Rear): Koyo DAC25520043, Febest DAC25520043-KIT.

Suzuki Alto Rear Drum

KSh6,500.00
Core Drum Dimensions & Geometry
  • Inner Brake Drum Diameter (Nominal): 180.0 mm.
  • Maximum Wear / Overbore Diameter: 182.0 mm (Discard or replace the drum immediately if the internal surface exceeds this measurement).
  • Outer Brake Drum Diameter: 208.0 mm.
  • Internal Working Height (Friction Surface Width): 34.5 mm – 35.0 mm.
  • Total Structural Height: 63.0 mm.
  • Material Composition: High-thermal cast grey alloy iron. [1, 2, 3, 4]
Wheel Mount & Hub Interface
  • Lug Bolt Hole Arrangement: 4 Holes.
  • Pitch Circle Diameter (PCD): 4 x 100 mm.
  • Centering / Hub Pilot Bore Diameter: 52.0 mm – 52.1 mm.
  • Hub Inner Bearing Bore Intersect (Step 1 / Step 2): 47.0 mm / 52.0 mm.
  • Fastener Bore Diameter: 12.0 mm. [1, 2, 3, 4]
Brake Shoe & Hydraulic System Matching
  • Compatible Brake Shoe Lining Width: 26.0 mm.
  • Rear Wheel Brake Cylinder Bore Diameter: 15.9 mm.
  • Braking System Layout: Leading-trailing mechanical shoe architecture with self-adjusting handbrake synchronization. [1, 2, 3]
Factory Reference & Cross-Identification
  • Suzuki Genuine Factory OEM Part Base: 43511-68K00, 43511-M68K00, 43511M79G50. [1, 2]
  • Nissan Cross-Platform Part Base (Pixo Matrix): 43200-4A00A. [1]
  • Major Aftermarket Cross-Reference Cataloging:
    • Blue Print Code: ADK84713 / ADN14726.
    • Bosch Reference: 0 986 477 263.
    • Brembo Reference: 14.B000.10.
    • Ridex Code: 123B0045. [1, 2, 3]

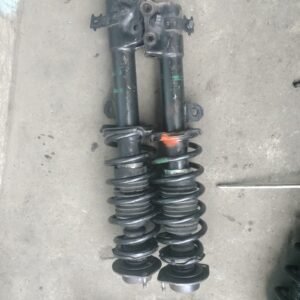

Suzuki Model Wagon R Complete Shocks

KSh5,000.00
Front Axle Shock Absorber Specifications (Strut Assembly)
    • Suspension Architecture: Independent MacPherson Strut. [1]
    • Shock Internal Mechanics: Gas-Pressure Twin-Tube low-pressure nitrogen gas configuration. [1, 2]
    • Strut Design Type: Structural Suspension Strut (load-bearing element). [1, 2]
    • Mounting Connections: Top Pin chassis mounting fastener (via a single center shaft rod nut nestled in the strut top hat mount) paired with a Bottom Clamp dual-bolt steering knuckle bracket configuration. [1, 2, 3]
    • Piston Rod Outer Diameter: 18 mm. [1]
    • Cylinder Bore Internal Diameter: 27 mm. [1]
    • Outer Strut Tube Diameters: 45 mm base structural body tapering to 30 mm upper step. [1, 2]
    • Front Strut Length Profiles:
        • Maximum Fully Extended Length: 477 mm – 498 mm.
        • Collapsed / Minimum Working Length: 351 mm. [1, 2]
    • Asymmetrical Left/Right Layout: Front struts are side-specific due to directional brake hose tabs and anti-roll bar bracket symmetry. [1, 2]
Rear Axle Shock Absorber Specifications (Dampers)
    • Suspension Architecture: Isolated Trailing Link (ITL) or rigid 3-link axle setup depending on standard 2WD or 4WD chassis configs. [1]
    • Damper Design Type: Telescopic Shock Absorber (non-load bearing standalone unit separated from the coil spring seat). [1, 2]
    • Mounting Connections: Top Eyelet / Bottom Eyelet sleeve bushing pins (secured with 85 Nm factory mounting torque values). [1, 2, 3]
    • Outer Shell Core Diameter: ~38 mm. [1]
    • Rear Shock Length Profiles:
        • Maximum Fully Extended Length: 401 mm – 412 mm.
        • Collapsed / Minimum Working Length: 270 mm. [1, 2, 3]
Genuine Factory & Aftermarket Identification Numbers
  • Suzuki Genuine Factory OEM Part Roots:
      • Front Struts: 41602-62C00, 41602-85200, 41602-85201, 41602-M55RA0.
      • Rear Shocks: 41800-M70F50, 41800-70K00, 41800-58JC1. [1, 2, 3]
  • KYB (Excel-G Series) Component Cross-References:
    • Front Right Strut: 333306 / 334464
    • Front Left Strut: 333307

Suzuki Swift K12B Automatic Gearbox (2012 Model)

Original price was: KSh46,500.00.Current price is: KSh45,000.00.

Restore your vehicle's smooth shifting and fuel efficiency with this high-performance K12B Automatic Gearbox for the 2012 Suzuki Swift. Sourced as a genuine Ex-Japan unit, it is engineered for precision power delivery and seamless gear transitions, ensuring your Swift drives like new.

PRICE: KSh 45,000

COMPATIBILITY: Precision-engineered for the 2012 Suzuki Swift (ZC72S/ZD72S) equipped with the 1.2L K12B engine.

Suzuki Swift Lower Control Arms (2012 Model)

Original price was: KSh5,000.00.Current price is: KSh4,000.00.

Upgrade your vehicle's suspension geometry and steering precision with these high-quality Lower Control Arms for the 2012 Suzuki Swift. Sourced as genuine Ex-Japan parts, they provide the structural integrity needed for a stable, comfortable, and safe driving experience.

PRICE: KSh 4,000

COMPATIBILITY: Precision-engineered for the 2012 Suzuki Swift (ZC72S/ZD72S series).

Suzuki Swift Engine (K12B Model)

Original price was: KSh60,000.00.Current price is: KSh50,000.00.

Upgrade your vehicle's performance with this genuine Ex-Japan K12B engine, specifically sourced for the 2012 Suzuki Swift. Known for its remarkable fuel efficiency and smooth power delivery, this engine is the perfect solution for restoring your car to its original factory standards.

PRICE: KSh 50,000

COMPATIBILITY: Precision-engineered for the 2012 Suzuki Swift (ZC72S/ZD72S series) featuring the K12B 1.2L engine.

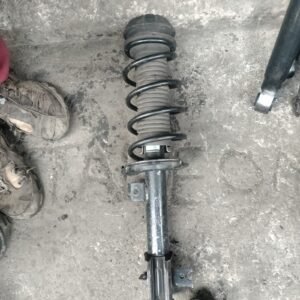

2012 Suzuki Swift Shock Absorbers

Original price was: KSh5,500.00.Current price is: KSh4,500.00.
Genuine 2012 Suzuki Swift Shocks for KSh 4,500. Grade A Ex-Japan quality for sharp handling, better fuel economy, and a smooth city ride.
  • Price: KSh 4,500

  • Condition: Ex-Japan Grade A (Pristine, tested for high-pressure retention)

  • Personality: The "Nimble City-Slicker." Designed to make your hatchback feel light, responsive, and fun to drive.

  • Compatibility: High-performance Grade A suspension struts. Fits Suzuki Swift (2010–2017) ZC72S / ZD72S / ZC32S models.

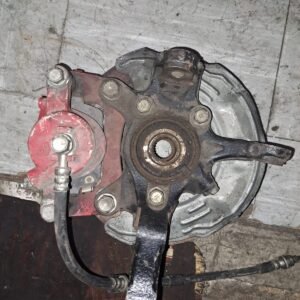

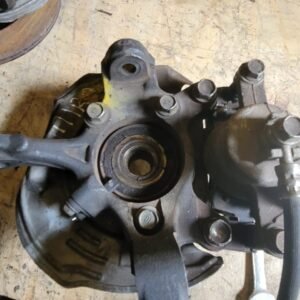

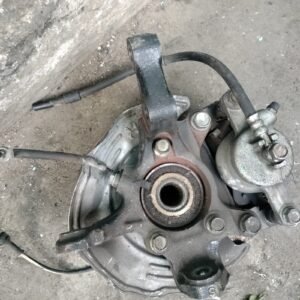

2015 Suzuki Alto Wheel Hub Assembly

Original price was: KSh5,400.00.Current price is: KSh4,000.00.
Genuine Ex-Japan 2015 Suzuki Alto Wheel Hub for KSh 4,000. Silent bearings and perfect ABS compatibility
  • Price: KSh 4,000

  • Condition: Ex-Japan Grade A (Low Mileage)

  • Personality: The "Silent Spinner." Precision-engineered for friction-free movement.

  •  Compatibility: Grade A Front/Rear Wheel Hub. Compatibility: Fits 2014–2021 Suzuki Alto (HA36S/HA36V) models.

Showing 28 of 46 results
Please select your product
Product has been added to your cart
Compare (0)
