Control Arms & Suspension Wishbones: Precision Stability for Kenyan Roads

Is your vehicle pulling to one side or making clunking noises over bumps? It’s likely time to inspect your control arms. At Taleon Autospares Kenya, our Arms Category features a comprehensive range of upper and lower control arms (wishbones) designed to restore your vehicle’s factory handling and safety.

Why Quality Control Arms Matter in Kenya

In Kenya, our roads—from the highways to the “murram” feeder roads—place immense stress on your vehicle’s suspension skeleton. The control arm is the bridge between your chassis and the wheels; if it’s worn, your safety is at risk.

  • Precision Wheel Alignment: Our Taleon-grade arms ensure your wheels stay at the correct angle, preventing expensive premature tire wear and saving you money at the tire center.

  • Heavy-Duty Bushings: Most “cheap” arms fail because of poor rubber quality. Our arms come fitted with reinforced bushings that resist cracking despite the Kenyan heat and constant vibration.

  • Complete Assemblies: To save you time and labor costs at the garage, our control arms come with pre-pressed ball joints and bushings, making them a “bolt-on” solution for your mechanic.

Our Range of Suspension Arms

We stock specialized arms for Kenya’s most popular models, ensuring a perfect fit and long-term durability:

  • Lower Control Arms: The backbone of your front suspension, vital for braking stability.

  • Upper Control Arms: Essential for SUVs and lifted 4x4s (like the Toyota Prado or Hilux) to maintain proper geometry.

  • Trailing Arms: Ensuring your rear axle stays aligned during heavy loading or off-road driving.

Solve Your Suspension Problems Today

Don’t ignore a “shaking” steering wheel or uneven tire wear. Upgrading to a Taleon Control Arm means investing in a smoother ride and better cornering. We are the leading suppliers for Toyota, Nissan, Honda, and Mazda suspension parts in Nairobi and beyond.

Shop online and enjoy door-to-door delivery across Kenya, or visit our shop on Kirinyaga Road for expert advice on the best arms for your specific car model.

Sort

Mazda Demio Model 2016 Lower Control Arm

KSh5,500.00
1. Dimensional & Sizing Specifications
  • Total Component Length: 350 mm
  • Total Component Height: 82 mm
  • Component Width: ~50 mm (at base structural track profile)
  • Ball Joint Cone/Pin Diameter: Ø 16 mm (Note: Certain reinforced aftermarket replacement matrices utilize a 17.5 mm variant; standard factory OE specification measures 16 mm).
  • Thread Size / Fitting Type: Pinch Bolt alignment configuration (16 mm)
  • Inner Bushing Bolt Hole Diameter: 10.4 mm [1, 2, 3]
2. OEM Part Numbers & Cross-References
  • Left-Hand Side (LH):
    • Mazda Original Equipment (OE) Codes: DA6A-34-350C, DA7H-34-350, D201-34-350B
    • Major Aftermarket Match: Delphi TC3286 [1]
  • Right-Hand Side (RH):
    • Mazda Original Equipment (OE) Codes: DA6A-34-300C, DA7H-34-300B, D23H-34-300
    • Major Aftermarket Match: Delphi TC3287 [1, 2, 3]
3. Material & Component Architecture
  • Structural Material: High-tensile forged or stamped steel alloy structural matrix finished with an anti-corrosion black powder layer. [1, 2]
  • Pre-Assembled Bushings: Premium vulcanized natural rubber silent-block bushings (one forward cylindrical pivot bushing and one large rear compliance load bushing) engineered to minimize cabin NVH (Noise, Vibration, and Harshness). [1]
  • Ball Joint Mechanism: Maintenance-free, non-adjustable, factory-sealed, pre-greased low-friction ball joint enclosed in a flexible neoprene protective dust boot. [1, 2]
4. Vehicle & Platform Fitment Geometry
  • Chassis Codes Covered: Mazda Demio / Mazda 2 Hatchback and Sedan (CBA-DJLFS, DBA-DJ3FS, DJ5FS, DJ5AS 4WD).
  • Powertrain Compatibility: 1.3L SkyActiv-G (P3-VPS), 1.5L SkyActiv-G (F5-VPT), and 1.5L SkyActiv-D Diesel (S5-DPTS).
  • Platform Sharing: Shared geometric subframe attachment layout with the Toyota Yaris / Yaris iA (2016+ North American variants derived from the Mazda DJ platform partnership).

Mazda Demio Model 2015 Lower Control Arm

KSh5,500.00
1. Dimensional & Sizing Specifications
  • Total Component Length: 350 mm
  • Total Component Height: 82 mm
  • Component Width: ~50 mm (at base structural track)
  • Ball Joint Cone/Pin Size: Ø 16 mm
  • Thread Size / Fitting Type: Pinch Bolt alignment configuration (16 mm)
  • Inner Bushing Bolt Hole Diameter: 10.4 mm [1, 2]
2. OEM Part Numbers & Cross-References
  • Left-Hand Side (LH):
    • Mazda Original Equipment (OE) Codes: DA6A-34-350C, D201-34-350B, DA7H-34-350
    • Major Aftermarket Match: Delphi TC3286 [1, 2]
  • Right-Hand Side (RH):
    • Mazda Original Equipment (OE) Codes: D23H-34-300, DA7H-34-300B, D201-34-300B
    • Major Aftermarket Match: Delphi TC3287 [1, 2, 3, 4]
3. Material & Component Architecture
  • Structural Material: High-tensile forged or stamped carbon steel alloy finished with an anti-corrosion black powder layer. [1, 2]
  • Pre-Assembled Bushings: Premium vulcanized natural rubber silent-block bushings (one forward cylindrical pivot bushing and one large rear compliance load bushing) engineered to minimize cabin NVH (Noise, Vibration, and Harshness). [1]
  • Ball Joint Mechanism: Maintenance-free, non-adjustable, factory-sealed, pre-greased low-friction ball joint enclosed in a flexible neoprene protective dust boot. [1]
4. Vehicle & Platform Fitment Geometry
  • Chassis Codes Covered: Mazda Demio / Mazda 2 Hatchback and Sedan (CBA-DJLFS, DBA-DJ3FS, DJ5FS, DJ5AS 4WD).
  • Powertrain Compatibility: 1.3L SkyActiv-G (P3-VPS), 1.5L SkyActiv-G (F5-VPT), and 1.5L SkyActiv-D Diesel (S5-DPTS).
  • Platform Sharing: Shared geometric subframe attachment layout with the Toyota Yaris / Yaris iA (2016+ North American variants derived from the Mazda DJ platform partnership). [1, 2]

Nissan Cube Lower Arms

KSh4,000.00
1. Dimensional & Sizing Specifications
  • Ball Joint Cone/Pin Diameter:
    • Z11 Platform (2002–2008): Ø 16 mm [The Nissan Note Z11 shares this spec with the K12 Micra/E11 Note].
    • Z12 Platform (2008–2020): Ø 18 mm [Upgraded to match the C11 Tiida/NV200 standard for a wider wheel track].
  • Bushing Bolt Hole Diameters: 12 mm (Main subframe pivot alignment points)
  • Average Assembly Weight: ~2.25 kg to 2.40 kg per arm (dependent on platform width)
2. OEM Part Numbers & Cross-References
  • Z11 Generation (2002–2008 / B-Platform):
    • Left-Hand Side (LH): 54501-AX000, 54501-14B0A
    • Right-Hand Side (RH): 54500-AX000, 54500-14B0A
    • Aftermarket Matches: Delphi TC1307 (LH) / Delphi TC1308 (RH)
  • Z12 Generation (2008–2020 / B-Lounge Platform):
    • Left-Hand Side (LH): 54501-1FU0A, 54501-ED000, 54501-EE50A
    • Right-Hand Side (RH): 54500-1FU0A, 54500-ED000, 54500-ED00A
    • Aftermarket Matches: Delphi TC2873 (LH) / Delphi TC2874 (RH)
3. Material & Component Architecture
  • Structural Composition: Heavy-gauge stamped sheet steel matrix frame finished in an anti-corrosion black protective coating.
  • Pre-Installed Bushings: High-damping vulcanized natural rubber silent-block bushings (one small horizontal pivot bushing at the front position, one large vertical compliance cylindrical bushing at the rear position).
  • Ball Joint Mechanism: Maintenance-free, non-adjustable, factory-sealed and pre-greased low-friction ball joint integrated with a neoprene protective dust boot.
4. Vehicle & Platform Fitment Geometry
  • Chassis Codes Covered: Nissan Cube (BZ11, BNZ11, YZ11, Z12, NZ12).
  • Engine Alignment: 1.4L (CR14DE), 1.5L (HR15DE), 1.6L (HR16DE), 1.8L (MR18DE).
  • Platform Interchangeability:
    • Z11 arms directly swap with the Nissan March/Micra (K12) and Nissan Note (E11).
    • Z12 arms directly swap with the Nissan Tiida (C11), NV200 (M20), and Wingroad (Y12).

Nissan NV200 Lower Arms

KSh4,000.00
1. Dimensional & Sizing Specifications
  • Ball Joint Cone/Pin Diameter: Ø 18 mm
  • Ball Joint Body Diameter (Press-fit size): Ø 38.5 mm
  • Bushing Bolt Hole Diameters: 12 mm (Main frame pivot points)
  • Total Component Length: 540 mm
  • Total Component Width: 280 mm
  • Total Component Height: 80 mm
  • Average Assembly Weight: ~2.45 kg per side [1, 2]
2. OEM Part Numbers & Cross-References
  • Left-Hand Side (LH / Driver Side or Passenger depending on market):
    • Nissan Original Equipment (OE) Codes: 54501-EL000, 54501-3SH2A, 54501-9AM1A, 54501-9AM1B
    • Major Premium Aftermarket Match: Delphi TC2496 [1, 2]
  • Right-Hand Side (RH):
    • Nissan Original Equipment (OE) Codes: 54500-EL000, 54500-3SH2A, 54500-3SH2B, 54500-9AM1A, 54500-9AM1B
    • Major Premium Aftermarket Match: Delphi TC2497 [1, 2, 3]
3. Material & Component Architecture
  • Structural Composition: Heavy-duty stamped structural sheet steel or cast steel matrix shell, designed to withstand commercial van payload distributions. [1, 2, 3]
  • Pre-Installed Bushings: High-damping vulcanized natural rubber silent-block bushings (one horizontal inner pivot bushing, one vertical large compliance rear cylindrical bushing). [1, 2]
  • Ball Joint Mechanism: Maintenance-free, non-adjustable, factory-sealed and pre-greased low-friction ball joint integrated with a durable neoprene dust boot. [1, 2]
4. Vehicle & Platform Fitment Geometry
  • Chassis Codes Covered: Nissan NV200 Van / Combi / Evalia Bus (M20, M20M).
  • Engine Variant Alignment: 1.5L dCi (K9K), 1.6L (HR16DE), 2.0L (MR20DE).
  • Platform Sharing Interchangeability: Built on a modified variant of the global Nissan B-platform. The tracking arm architecture directly shares subframe layout points with the Nissan Tiida (C11), Bluebird Sylphy (G11), and Wingroad (Y12).

Nissan Note E11 Lower Arms

KSh4,000.00
1. Dimensional & Sizing Specifications
  • Ball Joint Cone/Stud Diameter: Ø 16 mm
  • Bushing Bolt Hole Inner Diameters: 12 mm (mounts to the subframe via 18 mm bolt heads)
  • Component Length: ~383 mm to 390 mm
  • Component Width: ~365 mm to 375 mm
  • Average Assembly Weight: ~2.25 kg to 2.37 kg per side [1, 2, 3, 4]
2. OEM Part Numbers & Cross-References
  • Left-Hand Side (LH / Passenger Side in RHD markets):
    • Nissan Original Equipment (OE) Codes: 54501-AX000, 54501-9U00A, 54501-BC40A
    • Major Premium Aftermarket Match: Delphi TC1307 [1, 2]
  • Right-Hand Side (RH / Driver Side in RHD markets):
    • Nissan Original Equipment (OE) Codes: 54500-AX000, 54500-9U00A, 54500-BC40A
    • Major Premium Aftermarket Match: Delphi TC1308 [1]
  • Standalone Replacement Ball Joint Code (Pressed-In Type): 40160-AX000 [1]
3. Material & Component Architecture
  • Structural Composition: Heavy-duty stamped sheet steel (matrix shell format) painted with an anti-corrosion protective layer. [1, 2]
  • Pre-Assembled Bushings: Two high-damping natural rubber silent-block bushings per arm (one small horizontal pivot bushing at the front position, one large vertical compliance cylindrical bushing at the rear position). [1, 2]
  • Ball Joint Mechanism: Maintenance-free, factory-sealed, pre-greased low-friction ball joint integrated with a neoprene protective dust boot. [1, 2]
4. Vehicle & Platform Fitment Geometry
  • Chassis Codes Covered: Nissan Note (E11 / NE11 4WD variant).
  • Engine Alignment: 1.4L (CR14DE), 1.5L dCi (K9K), and 1.6L (HR16DE).
  • Platform Sharing Interchangeability: Built on the global Nissan B-platform architecture. The track control arm dimensions directly match and swap with the Nissan March/Micra (K12), Nissan Cube (Z11), and select Renault platform cousins like the Clio III. [1, 2, 3]

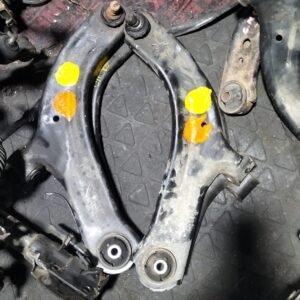

Nissan Tiida Lower Arms

KSh4,000.00
1. Dimensional & Sizing Specifications
  • Ball Joint Cone/Stud Size: Ø 18 mm
  • Bushing Inner Bore Diameter: 12 mm
  • Total Component Length: 510 mm
  • Total Component Width: 235 mm
  • Total Component Height: 62 mm
  • Average Assembly Weight: ~2.3 kg to 2.35 kg per side [1, 2, 3, 4]
2. OEM Part Numbers & Cross-References
  • Left-Hand Side (LH / Driver Side or Passenger depending on market alignment):
    • Nissan Original Equipment (OE) Codes: 54501-ED000, 54501-EL000, 54501-EE50A, 54501-1FU0A [1, 2]
  • Right-Hand Side (RH):
    • Nissan Original Equipment (OE) Codes: 54500-ED000, 54500-EL000, 54500-1FU0A, 54500-ED00A [1, 2]
  • Major Premium Aftermarket Matches:
    • Delphi: TC2873 (LH) / TC2874 (RH)
    • A.B.S. Electronics/Mechanical: 211511 [1, 2]
3. Material & Component Architecture
  • Structural Material: High-strength heavy-gauge stamped sheet steel (welded matrix frame structure).
  • Pre-Installed Bushings: High-durability vulcanized natural rubber silent-block bushings (one horizontal pivot bush, one vertical rear compliance bush).
  • Ball Joint Setup: Non-adjustable, pre-greased, sealed low-friction heavy-duty ball joint assembly with integrated neoprene dust boot. [1, 2, 3, 4]
4. Vehicle & Platform Fitment Geometry
  • Chassis Codes Covered: Nissan Tiida Hatchback / Sedan (C11, C11X, SC11, C12).
  • Engine Variant Alignment: 1.5L (HR15DE), 1.6L (HR16DE), 1.8L (MR18DE).
  • Platform Sharing: Completely interchangeable with the Nissan Wingroad (Y12), Bluebird Sylphy (G11), NV200 (M20), and Nissan Cube (Z12) front suspension subframe geometry. [1, 2, 3, 4]

Toyota Axio Model 2007-2012 Lower Control Arms

KSh4,000.00
Toyota Corolla Axio (2007–2012) Lower Control Arm Technical Specifications
The front lower control arms for the E140 generation Toyota Corolla Axio (chassis codes: NZE141, NZE144 [4WD], ZRE142, ZRE144 [4WD], production range 2007–2012) feature a conventional L-shaped MacPherson strut lower wishbone architecture. This assembly structurally joins the lower steering knuckle to the vehicle's engine crossmember subframe.
1. Core Part Identification & OEM Numbers
  • Right Hand (RH) Front Lower Control Arm:
    • 48068-12300 (Primary factory baseline number)
    • Interchangeable Structural Refs: 48068-02140, 48068-12290, 48068-02160
  • Left Hand (LH) Front Lower Control Arm:
    • 48069-12300
    • Interchangeable Structural Refs: 48069-02140, 48069-12290, 48069-02160
  • Component Weight: Approximately 3.15 kg per side (complete stamped shell assembly with bushings pressed).
2. Dimensional & Physical Parameters
  • Structural Frame Material: Stamped heavy-gauge cold-rolled structural carbon steel plate.
  • Chassis Attachment Layout: 3-Point orientation (Inner forward horizontal bushing + Inner rear vertical trailing bushing + Outer steering knuckle ball joint receiver flange).
  • Bushing Internal Steel Sleeve Dimensions:
    • Forward Horizontal Bolt Sleeve (Inner Diameter): 14.2 mm (Engineered to receive an M14 pivot bolt)
    • Rear Vertical Trailing Bush Sleeve (Inner Diameter): 14.4 mm
  • Rear Large Bushing Outer Barrel Diameter (OD): 65.2 mm
  • Rear Large Bushing Metal Casing Height: 55.0 mm
3. Elastomeric Component & Bushing Specifications
  • Material Compound: High-durometer vulcanized natural rubber (NR) bonded inside carbon steel inner and outer backing sleeves.
  • Bushing Sub-Components (For Independent Pressing/Rebuilds):
    • Small Front Bushing Ref: 48654-12150 / RU-494 (Dimensions: 14.2mm ID × 38.2mm OD × 61.0mm Length)
    • Large Rear Bushing Ref: 48655-12120 / RU-495 / TAB-145 (Dimensions: 14.4mm ID × 65.2mm OD × 55.0mm Length)
4. Drivetrain & Platform Cross-Compatibility
  • 2WD vs. 4WD Architecture: 2WD models (NZE141, ZRE142) share identical base control arms. 4WD models (NZE144, ZRE144) utilize alternative rear bushing durometers to mitigate drivetrain twist from the transfer case, though the physical arm geometry remains interchangeable.
  • Platform Sharing: The E140 Axio lower control arm shares an identical structural chassis footprint with the Toyota Corolla Fielder (E140), Toyota Auris (E150), and Toyota Blade (E150) variations of the same production era.

Toyota Allion 240 Lower Control Arms

KSh4,000.00
Toyota Allion 240 Series Lower Control Arm Technical Specifications
The front lower control arms for the first-generation Toyota Allion 240 series (chassis codes: NZT240, ZZT240, AZT240, ZZT245 [4WD], production range 2001–2007) utilize an L-shaped MacPherson strut lower wishbone architecture. This assembly structurally joins the front steering knuckle to the main engine crossmember subframe.
1. Core Part Identification & OEM Numbers
  • Right Hand (RH) Front Lower Control Arm:
    • 48068-20400 (Primary factory baseline number)
    • Interchangeable Structural Refs: 48068-02050, 48068-12220, 48068-0M010
  • Left Hand (LH) Front Lower Control Arm:
    • 48069-20400
    • Interchangeable Structural Refs: 48069-02050, 48069-12220, 48069-0M010
  • Component Weight: Approximately 3.39 kg per side (complete stamped assembly with bushings pressed).
2. Dimensional & Physical Parameters
  • Structural Frame Material: Stamped heavy-gauge cold-rolled carbon sheet steel.
  • Chassis Attachment Layout: 3-Point orientation (Inner forward horizontal bushing + Inner rear vertical trailing bushing + Outer steering knuckle ball joint receiver).
  • Bushing Internal Steel Sleeve Dimensions:
    • Forward Horizontal Bolt Sleeve (Inner Diameter): 14.2 mm (Engineered for an M14 pivot bolt)
    • Rear Vertical Trailing Bush Sleeve (Inner Diameter): 14.5 mm
  • Rear Large Bushing Outer Barrel Diameter (OD): 68.5 mm
  • Rear Large Bushing Metal Casing Height: 59.2 mm
3. Elastomeric Component & Bushing Specifications
  • Material Compound: High-durometer vulcanized natural rubber (NR) bonded to carbon steel inner and outer sleeves.
  • Bushing Sub-Components (For Independent Pressing/Rebuilds):
    • Small Front Bushing Ref: 48654-12120 / RU-357 (Dimensions: 14.2mm ID × 39.0mm OD × 59.0mm Length)
    • Large Rear Bushing Ref: 48655-12170 / RU-385 / TAB-026 (Dimensions: 14.5mm ID × 68.5mm OD × 60.0mm Length)
4. Platform Cross-Compatibility
  • The T240 Allion lower control arm shares an identical structural chassis footprint and geometry with the Toyota Premio (T240), Toyota Wish (ANE10/ZNE10), Toyota Corolla (NZE121/ZZE122), and the Toyota Matrix/Voltz (ZZE130) platform variations of the same production era.

Toyota Premio 240 Lower Control Arms

KSh4,000.00
Toyota Premio 240 Series Lower Control Arm Technical Specifications
The front lower control arms for the first-generation Toyota Premio 240 series (chassis codes: NZT240, ZZT240, AZT240, ZZT245 [4WD], production range 2001–2007) feature a classic L-shaped MacPherson strut wishbone layout. This component structurally anchors the front steering knuckle assembly to the vehicle's engine crossmember subframe.
1. Core Part Identification & OEM Numbers
  • Right Hand (RH) Front Lower Control Arm:
    • 48068-20400 (Primary factory baseline number)
    • Interchangeable Structural Refs: 48068-02050, 48068-12220, 48068-0M010
  • Left Hand (LH) Front Lower Control Arm:
    • 48069-20400
    • Interchangeable Structural Refs: 48069-02050, 48069-12220, 48069-0M010
  • Component Weight: Approximately 3.39 kg per side (complete stamped assembly with bushings pressed).
2. Dimensional & Physical Parameters
  • Structural Frame Material: Stamped heavy-gauge cold-rolled carbon sheet steel.
  • Chassis Attachment Layout: 3-Point orientation (Inner forward horizontal bushing + Inner rear vertical trailing bushing + Outer steering knuckle ball joint seat).
  • Bushing Internal Steel Sleeve Dimensions:
    • Forward Horizontal Bolt Sleeve (Inner Diameter): 14.2 mm (Designed for an M14 pivot bolt)
    • Rear Vertical Trailing Bush Sleeve (Inner Diameter): 14.5 mm
  • Rear Large Bushing Outer Barrel Diameter (OD): 68.5 mm
  • Rear Large Bushing Metal Casing Height: 59.2 mm
3. Elastomeric Component & Bushing Specifications
  • Material Compound: High-durometer vulcanized natural rubber (NR) bonded to carbon steel sleeves.
  • Bushing Sub-Components (For Independent Pressing/Rebuilds):
    • Small Front Bushing Ref: RU-357 / 48654-12120 (Dimensions: 14.2mm ID × 39.0mm OD × 59.0mm Length)
    • Large Rear Bushing Ref: RU-385 / TAB-026 / 48655-12170 (Dimensions: 14.5mm ID × 68.5mm OD × 60.0mm Length)
4. Platform Cross-Compatibility
  • The T240 Premio lower control arm shares an identical structural chassis footprint with the Toyota Allion (T240), Toyota Wish (ANE10/ZNE10), Toyota Corolla (NZE121/ZZE122), and the Toyota Matrix/Voltz (ZZE130) platform variants of the same manufacturing era.

Toyota Premio 260 Lower Control Arms

KSh4,000.00
Toyota Premio 260 Series Lower Control Arm Technical Specifications
The front lower control arms for the second-generation Toyota Premio 260 series (chassis codes: NZT260, ZRT260, ZRT261, ZRT265, production range 2007–2021) feature an L-shaped, conventional MacPherson strut lower wishbone architecture. The assembly connects the steering knuckle to the vehicle’s front subframe channel. [1, 2, 3]
1. Core Part Identification & OEM Numbers
  • Right Hand (RH) Front Lower Control Arm:
    • 48068-47040 (Standard factory production number)
    • Aftermarket Cross-Ref: MA-9418R (Masuma), 33 10 9068 (SWAG) [1, 2, 3]
  • Left Hand (LH) Front Lower Control Arm:
    • 48069-47040 / 48069-47041
    • Aftermarket Cross-Ref: MA-9418L (Masuma), 33 10 9069 (SWAG) [1, 2, 3]
  • Component Configuration: Shipped structurally as an arm assembly with pre-pressed rubber bushings, but typically excluding the lower ball joint hardware unless explicitly designated. [1]
2. Dimensional & Physical Parameters
  • Structural Material: Stamped structural sheet carbon steel. [1]
  • Mounting Configuration: 3-Point orientation (Inner forward pivot bush + Inner rear vertical pivot bush + Outer ball joint receptacle). [1, 2]
  • Inner Bushing Hardware Bore Diameters:
    • Forward horizontal pivot bolt sleeve bore: 14.3 mm
    • Rear vertical trailing bush sleeve bore: 14.5 mm – 14.6 mm [1, 2]
  • Rear Bushing Barrel External Outer Diameter: 68.5 mm [1]
  • Rear Bushing Shell Total Length: 60.0 mm [1]
3. Elastomeric Component & Bushing Specifications
  • Bushing Compound: High-elasticity vulcanized natural rubber (NR) bonded inside carbon steel backing sleeves. [1]
  • Bushing Sub-Components (For Independent Rebuilding):
    • Front Bushing OEM Ref: RU-385
    • Rear Large Bushing OEM Ref: RU-386 / TAB-026 [1, 2]
4. Drivetrain Layout Variations
  • 2WD / FWD Base Variations (NZT260, ZRT260, ZRT261): Feature the baseline lightweight stamping profile intended for standard road clearances. [1, 2]
  • 4WD Variations (ZRT265): Utilize modified clearance contours along the rear inner arm radius to accommodate structural axle separation and intermediate transfer shaft geometries.

Toyota Voxy Lower Control Arms 4

KSh4,000.00
1st Gen (2001–2007: AZR60 / AZR65) & 2nd Gen (2007–2014: ZRR70 / ZRR75)
These early platforms feature highly interchangeable chassis architecture. The control arms use a classic independent dual-bushing layout with a removable lower ball joint. [1, 2]
    • Material Construction: Stamped heavy-gauge sheet steel. [1]
    • Bushing Layout: Combines a small horizontal front bushing and a large vertical rear bushing (48655-21010). The rear "Big Bushing" is notorious for tearing on these generations due to the vehicle's high curb weight and braking load. [1]
    • OEM Part Numbers:
        • Right Hand (RH): 48068-29235 / 48068-28120
        • Left Hand (LH): 48069-29235 / 48069-28120 [1]
    • Torque Specs:
        • Front Horizontal Pivot Bolt: 137 N·m (101 ft-lbs)
        • Rear Vertical Mount Bolt: 113 N·m (83 ft-lbs)
        • Ball Joint Castle Nut: 98 N·m (72 ft-lbs)
3rd Generation (2014–2022: ZRR80, ZRR85, ZWR80)
The 3rd generation updated the subframe interface. The ball joint is integrated directly into the steel frame of the control arm assembly rather than bolted on. [1]
    • Drivetrain Variance: 2WD (ZRR80/ZWR80) and 4WD (ZRR85) models use distinct arm designs to account for the steering geometry variations and clearance needed for the front axle half-shafts on 4WD variants. [1]
    • OEM Part Numbers (Common 2WD/Hybrid platforms):
        • Right Hand (RH): 48068-29255
        • Left Hand (LH): 48069-29255 [1]
    • Torque Specs:
        • Front Subframe Pivot Bolt: 140 N·m (103 ft-lbs)
        • Rear Vertical Bushing Bracket Bolts: 130 N·m (96 ft-lbs)
        • Ball Joint Pinch Bolt to Steering Knuckle: 63 N·m (46 ft-lbs)
4th Generation (2022–Present: MZRA90, MZRA95, ZWR90, ZWR95)
Built on the modern TNGA-C (Toyota New Global Architecture) platform, the 4th generation Voxy has completely reimagined suspension geometry. The control arm design is wider and lighter to yield a lower roll center and sharper turn-in response. [1, 2]
  • Chassis Integration: Shared with the 90-series Toyota Noah. It utilizes high-tensile strength steel designed to cope with the increased torque load of the 5th-generation 1.8L Hybrid (2ZR-FXE) and 2.0L Dynamic Force (M20A-FKS) drivetrains. [1]
  • OEM Part Numbers:
      • Right Hand (RH): 48068-NV9056 (Base candidate series)
      • Left Hand (LH): 48069-NV9056 [1]
  • Torque Specs:
    • Front Inner Crossmember Bolt: 150 N·m (111 ft-lbs)
    • Rear Vertical Bracket Bolts: 140 N·m (103 ft-lbs)
    • Ball Joint Stud Nut: 75 N·m (55 ft-lbs)

Toyota Mark X GRX 120 Lower Control Arm

KSh5,500.00
Component & Structural Specifications
  • Material Construction: High-tensile forged steel or heavy-duty cast iron body.
  • Bushing Layout: Features a dual-bushing design. The front pivot uses a standard horizontal press-fit bushing, while the rear uses a heavy-duty vertical "Big Bush" fluid-filled or hardened rubber insulator bracket assembly to isolate road vibration and maintain toe alignment under heavy braking. [1, 2]
  • Chassis Compatibility: Interchangeable across the Toyota X-Chassis platform. The GRX120 front lower control arms are identical to those found on the Lexus IS250/IS350 (GSE20), Lexus GS300/GS350 (GRS190), and the Toyota Crown (GRS180/GRS182). [1, 2]
  • Drive Configuration: Specifically engineered for 2WD models (AWD models use a different lower control arm geometry to clear the front axle half-shafts). [1, 2]
Genuine Toyota OEM Part Numbers
The lower control arm is serviced as separate left/right assemblies, and the rear brackets/bushings can be sourced independently.
  • Front Right (RH) Lower Control Arm Assy: 48620-30290 (also supersedes to 48620-53020, 48620-0N010).
  • Front Left (LH) Lower Control Arm Assy: 48640-30290.
  • Rear-Facing LCA Bracket No. 1 (Right Side Big Bush): 48075-30020 / 48075-0N010.
  • Rear-Facing LCA Bracket No. 2 (Left Side Big Bush): 48076-30020 / 48076-0N010.
  • Front Lower Ball Joint Assy (RH): 43330-39625.
  • Front Lower Ball Joint Assy (LH): 43340-39505. [1, 2, 3, 4]
Factory Torque Specifications
To preserve bushing health, all main arm bolts must receive final torque only when the car's weight rests fully on the wheels (at ride height). [1, 2]
Fastener Connection Metric Spec (N·m) Imperial Spec (ft-lbs)
LCA Front Pivot Bolt to Frame (Camber adjustment cam) 196 N·m 145 ft-lbf
Shock Absorber Lower Mount to Control Arm 137 N·m 101 ft-lbf
LCA Rear Bracket (Big Bush) to Chassis Frame 135–150 N·m 100–110 ft-lbf
Lower Ball Joint Assembly to Steering Knuckle 115 N·m 85 ft-lbf
Ball Joint Stud Castle Nut to Lower Control Arm 125 N·m 92 ft-lbf

Mitsubishi eK Wagon Lower Arms Control

KSh4,000.00
System Design & Layout
  • Suspension Type: Independent MacPherson Strut lower suspension link.
  • Component Type: Track Control Arm / Lower Wishbone.
  • Fitting Position: Front Axle (Left Hand and Right Hand sides are non-interchangeable mirror images).
Structural & Material Specifications
  • Arm Construction: Heavy-gauge stamped sheet steel or structural forged steel matrix.
  • Bushing Composition: High-durability vulcanized natural rubber compounds bonded to steel inner sleeves (designed to limit micro-vibrations across kei-car weight limits).
  • Ball Joint Configuration: Integrated or press-fit non-adjustable ball joint with a polished steel tapered pin and high-elasticity synthetic rubber dust boot.
  • Average Component Weight: ~1.85 kg to 2.40 kg per arm assembly.
Genuine OEM Part Numbers & Cross-References
First & Second Generation (H81W / H82W Series | 2001 – 2013)
  • Right Hand (RH) Front Lower Arm: MR594248, 4013A066, 4013A232
  • Left Hand (LH) Front Lower Arm: MR594247, 4013A065, 4013A231
  • Common Aftermarket Reference (555): SA-B222R (RH) / SA-B222L (LH)
Third Generation (B11W Series | 2013 – 2019)
  • Right Hand (RH) Front Lower Arm: 4013A426
  • Left Hand (LH) Front Lower Arm: 4013A425
Platform Compatibility
  • Chassis Cross-Sharing: Universally interchangeable with corresponding generation Nissan Otti (H81W/H82W equivalents) and Nissan Dayz (B11W equivalents) due to the joint Nissan-Mitsubishi NMKV development venture.
  • Powertrain Layouts: Fits both 2WD and 4WD configurations running the 3G83 657cc or 3B20 659cc engine variants.

Nissan Note E11 Lower Arm Control

KSh3,500.00
Structural & Geometrical Specifications
  • Suspension Architecture: Front Axle Lower Wishbone / A-Arm assembly designed for MacPherson strut configurations.
  • Component Symmetry: Asymmetric design (Left-Hand and Right-Hand units are distinct and not interchangeable).
  • Material Matrix: Stamped high-tensile sheet steel with robotically welded structural reinforcements.
  • Surface Finish: Electrophoresis anti-rust black coating for corrosion resistance.
  • Component Weight: Approximately 2.3 kg to 2.5 kg per individual arm assembly (including pre-pressed bushings and ball joint).
  • Chassis Compatibility: Interchangeable across the Nissan B-platform including the Note E11, Tiida C11, Micra/March K12, and Cube Z11.
Integrated Hardware & Connection Specs
  • Ball Joint Configuration: Integrated press-fit lower ball joint with a heavy-duty rubber dust boot and grease retention clip.
  • Ball Joint Stud Pin Diameter: Standard Ø 18 mm tapered fitment.
  • Bushing Layout (Dual Silent-Block System):
    • Front Inner Bushing: Horizontal cylindrical steel-sleeved natural rubber bushing.
    • Rear Inner Bushing: Large vertical lip/flange-type bushing engineered to isolate cabin floor vibration.
    • Rubber Hardness: 60–65 Shore A durometer optimized for structural rigidity under braking and steering loads.
Genuine OEM & Aftermarket Part Numbers
  • Right Hand (RH - Front Lower Arm):
    • Nissan Genuine OEM: 54500-AX600, 54500-AX00A, 54500-9U00A, 54500-BC40A, 54500-ED00A
    • Aftermarket Identifiers: Febest (0224-K12RH), Blue Print (ADN186117), Delphi (TC1374)
  • Left Hand (LH - Front Lower Arm):
    • Nissan Genuine OEM: 54501-AX600, 54501-AX00A, 54501-9U00A, 54501-BC40A, 54501-ED00A
    • Aftermarket Identifiers: Febest (0224-K12LH), Blue Print (ADN186116), Delphi (TC1373)

Nissan Tiida Lower Arm Control

KSh3,500.00
Structural & Geometrical Specifications
  • Suspension Type: Front Axle Lower Wishbone / A-Arm assembly.
  • Component Symmetry: Asymmetric layout (Left-Hand and Right-Hand specific units; not interchangeable).
  • Material Matrix: High-strength stamped sheet steel body treated with anti-corrosive black electrophoresis paint.
  • Physical Dimensions: Approximate length of 510 mm, width of 235 mm, and body height of 62 mm.
  • Component Weight: 2.3 kg (approx. 5.07 lbs) per individual arm assembly.
  • Platform Adaptability: Form-fitted for the Nissan C11 chassis (Tiida, Latio, Wingroad Y12, Bluebird Sylphy G11, Cube Z12, and NV200 M20). [1, 2, 3, 4, 5, 6, 7, 8]
Integrated Hardware & Connection Specs
  • Ball Joint Integration: Integrated, factory press-fitted lower ball joint housing featuring a polymer-lined socket and hardened steel ball stud. [1, 2]
  • Ball Joint Cone Pin Size: Standard Ø 18 mm tapered diameter fitment. [1, 2]
  • Bushing Layout:
    • Front/Center Bushing: Inner horizontal steel-sleeve silent block.
    • Rear Bushing: Heavy-duty vertical lip bushing constructed of vulcanized natural rubber (Durometer hardness optimized for structural compliance and dampening road harshness). [1, 2, 3]
Genuine OEM Part Numbers & Aftermarket Cross-Reference
  • Right Hand (RH - Passenger Side):
    • Nissan Genuine OEM: 54500-ED000, 54500-1FU0A, 54500-1FU0B, 54500-1JY0A, 54500-ED00A
    • Aftermarket Identifiers: Delphi (TC2874), Febest (0224-C11RH) [1, 2]
  • Left Hand (LH - Driver Side):
    • Nissan Genuine OEM: 54501-ED000, 54501-1FU0A, 54501-1FU0B, 54501-1JY0A, 54501-ED00A, 54501-EL000
    • Aftermarket Identifiers: Delphi (TC2873), Febest (0224-C11LH) [1, 2, 3, 4, 5]
  • Stand-alone Ball Joint Component (If serviced separately): OEM 40160-ED000 / 40160-AX00B

Nissan NV200 Lower Arm Control

KSh3,500.00
Structural & Geometrical Specifications
  • Suspension Architecture: Lower Wishbone / A-Arm assembly designed for MacPherson Strut systems
  • Fitting Position: Front Axle (Asymmetric Left-Hand and Right-Hand specific units)
  • Material Composition: Stamped high-tensile steel sheet metal with structural reinforcement welds
  • Ball Joint Connection: Integrated press-fit vertical ball joint with a tapered stud spindle link
  • Bushing Points: Double rubber silent-block bushings (one horizontal inner barrel bush, one vertical rear rear-lip bush)
  • Chassis Compatibility: All M20 platform variants (1.5 dCi, 1.6L Petrol, e-NV200)
Genuine OEM & Cross-Reference Part Numbers
  • Right Hand (RH) Front Lower Arm:
    • Nissan OEM: 54500-JX00A, 54500-1FU0B, 54500-3LM0A, 54500-JX30A
  • Left Hand (LH) Front Lower Arm:
    • Nissan OEM: 54501-JX00A, 54501-1FU0B, 54501-3LM0A, 54501-JX30A
  • Aftermarket Cross-References: Blue Print (ADN186127 / ADN186128), Febest (0224-M20RH / 0224-M20LH)
Component Hardware Specifications
  • Ball Joint Stud Diameter: Standard 18 mm tapered fitment
  • Control Arm Weight: Approximately 3.4 kg to 3.8 kg per side (including pre-installed bushings and ball joint)
  • Surface Coating: Anti-corrosive black electrophoresis paint or powder coating for environmental salt and rust protection
  • Bushing Shore Hardness: 60–65 Shore A durometer natural rubber compound to withstand commercial transport load cycles

Daihatsu Mira Lower Control Arms

Original price was: KSh5,500.00.Current price is: KSh4,000.00.

Upgrade your vehicle's suspension stability and steering response with these high-quality Lower Control Arms for the Daihatsu Mira. Sourced as genuine Ex-Japan parts, they provide the structural strength and precision needed to maintain a smooth, safe, and balanced ride.

PRICE: KSh 4,000

COMPATIBILITY: Precision-engineered for the Daihatsu Mira series (L275/L285 and LA300/LA310 models).

Suzuki Swift Lower Control Arms (2012 Model)

Original price was: KSh5,000.00.Current price is: KSh4,000.00.

Upgrade your vehicle's suspension geometry and steering precision with these high-quality Lower Control Arms for the 2012 Suzuki Swift. Sourced as genuine Ex-Japan parts, they provide the structural integrity needed for a stable, comfortable, and safe driving experience.

PRICE: KSh 4,000

COMPATIBILITY: Precision-engineered for the 2012 Suzuki Swift (ZC72S/ZD72S series).

Volkswagen Golf MK6 Shock Absorbers

Original price was: KSh5,000.00.Current price is: KSh4,000.00.
Genuine VW Golf MK6 Shocks for KSh 4,000. Grade A Ex-Japan quality for German precision handling, silent cabin comfort, and highway stability.
  • Price: KSh 4,000

  • Condition: Ex-Japan Grade A (Certified high-pressure, leak-tested units)

  • Personality: "The European Standard." Engineered for a firm, controlled, and sophisticated driving experience.

  • Compatibility: Premium Grade A Ex-Japan suspension struts: Perfectly fits Volkswagen Golf MK6 (2008–2013) including TSI, TDI, and GT models. (Also compatible with select Audi A3 and Jetta platforms).

Daihatsu Mira Shock Absorbers

Original price was: KSh4,800.00.Current price is: KSh4,000.00.
Genuine Daihatsu Mira Shocks for KSh 4,000. Ex-Japan Grade A quality for better fuel economy, silent city driving, and "like-new" comfort
  • Price: KSh 4,000

  • Condition: Ex-Japan Grade A (Certified pristine; tested for high-pressure gas retention)

  • Personality: "The Urban Specialist." Lightweight, responsive, and engineered for maximum efficiency.

  • Compatibility: Grade A Ex-Japan suspension struts: Fits Daihatsu Mira (L275, L285) and Mira e:S (LA300, LA350) series models.

Mitsubishi Lancer Lower Control Arm

Original price was: KSh5,500.00.Current price is: KSh4,500.00.
Strong and reliable Ex-Japan Grade A lower control arm for Mitsubishi Lancer ensuring suspension stability and long-lasting performance.

Price: 4,500

 Compatibility: Mitsubishi Lancer (select models – confirm chassis code)

 Performance: Stable suspension movement, Reduced road vibration

Honda Airwave Lower Control Arms

Original price was: KSh6,000.00.Current price is: KSh4,500.00.
Durable Ex-Japan Grade A lower control arms for Honda Airwave providing stable suspension support and smooth ride quality.

Price: 4,500

Compatibility: Honda Airwave (2005–2010),Compatible with Honda Fit Aria (select models)

 Performance: Improved suspension stability,Better wheel alignment

2010 Nissan Note Engine Mount and Gear Mountain

Original price was: KSh6,500.00.Current price is: KSh4,000.00.

2010 Nissan Note Engine Mount & Gearbox Mount –

Price: 4500

Condition: Ex-Japan – Grade A, lightly used and fully tested for reliable performance.
Compatibility: Designed for Nissan Note ensuring precise OEM fit for both engine and gearbox mounts.
Performance: Reduces engine and gearbox vibrations, ensures smooth power delivery, and improves vehicle stability.
Durability: High-quality construction built to withstand engine torque and gearbox stress.
Value: Affordable at 4500, providing dependable mounts to maintain drivetrain performance and driving comfort.

2014 Honda Fit Shocks

Original price was: KSh3,700.00.Current price is: KSh2,500.00.
  • Condition: Ex-Japan tested for compression resistance and seal health.

  • Compatibility: Fits all 3rd Generation Honda Fit models (2013–2020).

    • Chassis Codes: GK3 (1.3L), GK4 (4WD), GK5 (1.5L), GK6, and GP5/GP6 (Hybrid).

  • Performance: Restores the refined "third-gen" ride quality; eliminates rear bouncing and improves stability during high-speed cornering.

  • Price: Ksh 2,500

Nissan NV20 Lower Arm Control

Original price was: KSh4,000.00.Current price is: KSh3,500.00.

Genuine Nissan NV200 Front Lower Control Arm (Ex-Japan) Restore your van's stability and load-carrying safety with this Grade A Ex-Japan lower control arm. Sourced from low-mileage vehicles in Japan, this genuine part is built for the Nissan NV200 (M20). It includes a high-durability ball joint and heavy-duty rubber bushings, offering a perfect factory fit and long-term reliability at an affordable price.

  • Condition: Grade A Ex-Japan (Inspected & Load-Tested)

  • Compatibility: Nissan NV200 / Evalia (2009–2021+) | Chassis M20, VM20

  • Position: Front Lower (Left or Right)

  • Price: KSh 3,500

Nissan Tiida Lower Arm Control

Original price was: KSh4,500.00.Current price is: KSh3,500.00.

Genuine Nissan Tiida C11 Front Lower Control Arm (Ex-Japan) Restore your vehicle's handling and safety with this Grade A Ex-Japan lower control arm. Sourced from low-mileage Japanese vehicles, this genuine part ensures a perfect fit for the Nissan Tiida (2004–2012). It comes complete with a pre-installed ball joint and heavy-duty bushings to eliminate suspension noise and steering play.

  • Condition: Grade A Ex-Japan (Hand-picked & Inspected)

  • Compatibility: Nissan Tiida C11 / Tiida Latio SC11 (2004–2012)

  • Position: Front Lower (Left or Right)

  • Price: KSh 3,500

Honda Fit 2010 Shock Absorbers

Original price was: KSh3,000.00.Current price is: KSh2,500.00.
Upgrade your 2010 Honda Fit’s ride quality with our premium Clean Ex-Japan Shock Absorbers. Sourced directly from low-mileage vehicles in Japan, these genuine shocks offer the perfect balance of comfort and road stability that aftermarket brands often miss. At just KSh 2,500, they are the most affordable way to eliminate bouncing and restore your car’s original "factory feel."

Toyota Passo Lower Control Arms.

Original price was: KSh4,000.00.Current price is: KSh3,000.00.
Restore your Toyota Passo’s handling and ride comfort with our premium Clean Ex-Japan Lower Control Arms. These are genuine, high-durability suspension units sourced directly from Japan, offering a perfect fit and superior longevity compared to generic replacements. If your car has started making knocking or clunking noises, don't wait—replace them today for a smoother, safer drive.
Showing 28 of 34 results
Please select your product
Product has been added to your cart
Compare (0)
